CPU Installation Prep work

The CPU and Smart Power Module should be mounted directly on the pullout tray in the trunk. If there is no tray
available; the Components should be mounting on a piece of plywood at least three quarter inch (
could be glued to the Deck above the fuel tank.
Note: COBAN Technologies WILL NOT takes responsibility for a DAMAGED FUEL TANK if units are installed by a
Third Party Contractor or Fleet Personnel.

Plywood Deck Mount

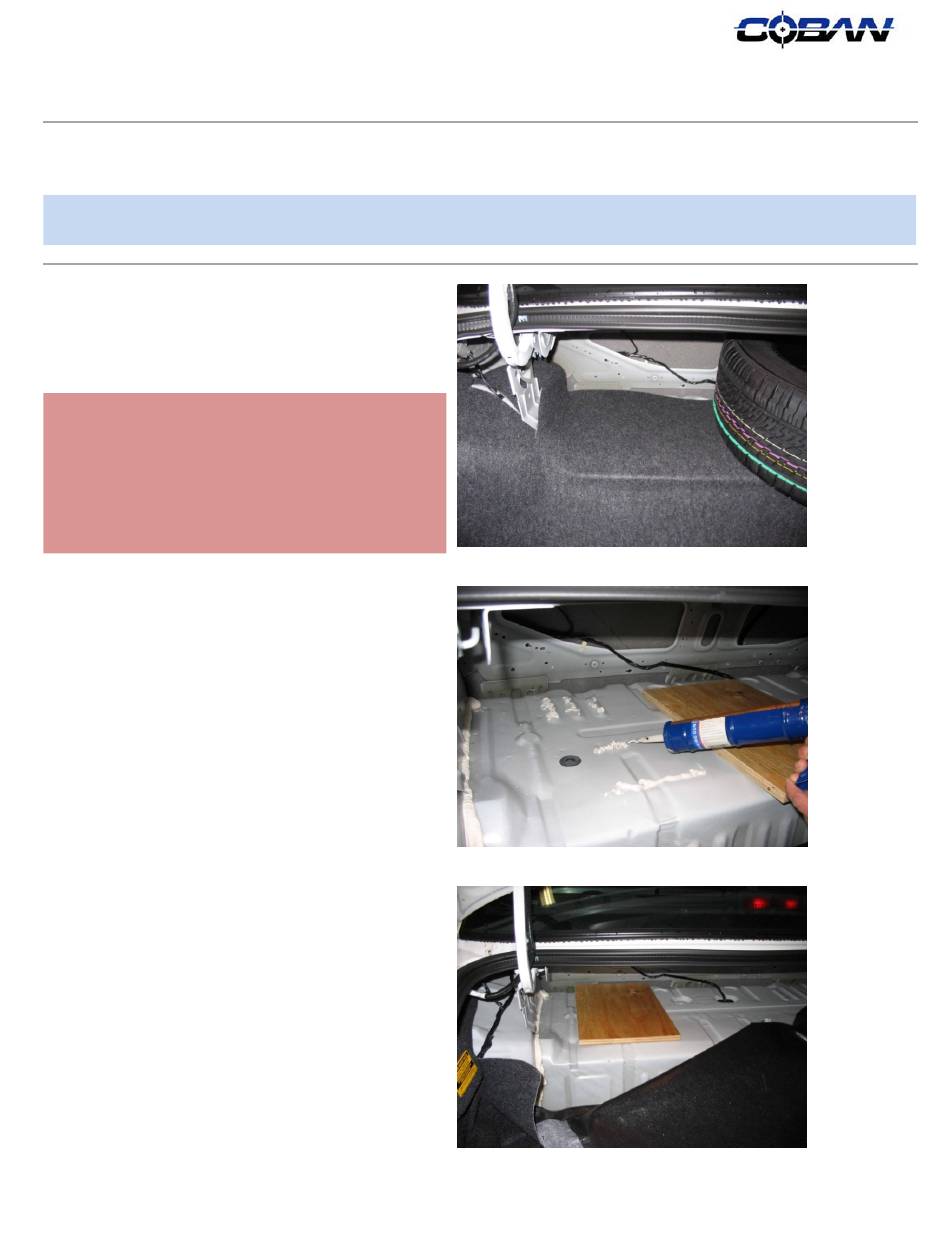

Locate an appropriate space on the Trunk Deck for
mounting the Smart Power Module.
WARNING: The Installation Technician MUST
ensure that the installation of the CPU mount does
not in any way compromise the integrity of the
vehicle's Fuel Tank. Be sure that the fastening
screws are not longer than the thickness of the
Plywood. Use the recommended glue, as fast drying
glues become brittle, and can easily vibrate loose
from the Deck surface.
1. Remove carpet and apply adequate amount of
Liquid Nail to the mounting surface.
2. Press a piece of plywood (minimum
firmly onto the glue.
3
/ " thick)
4
www.cobantech.com
3
/ ") thick, which
4
