EDGE Installation Manual

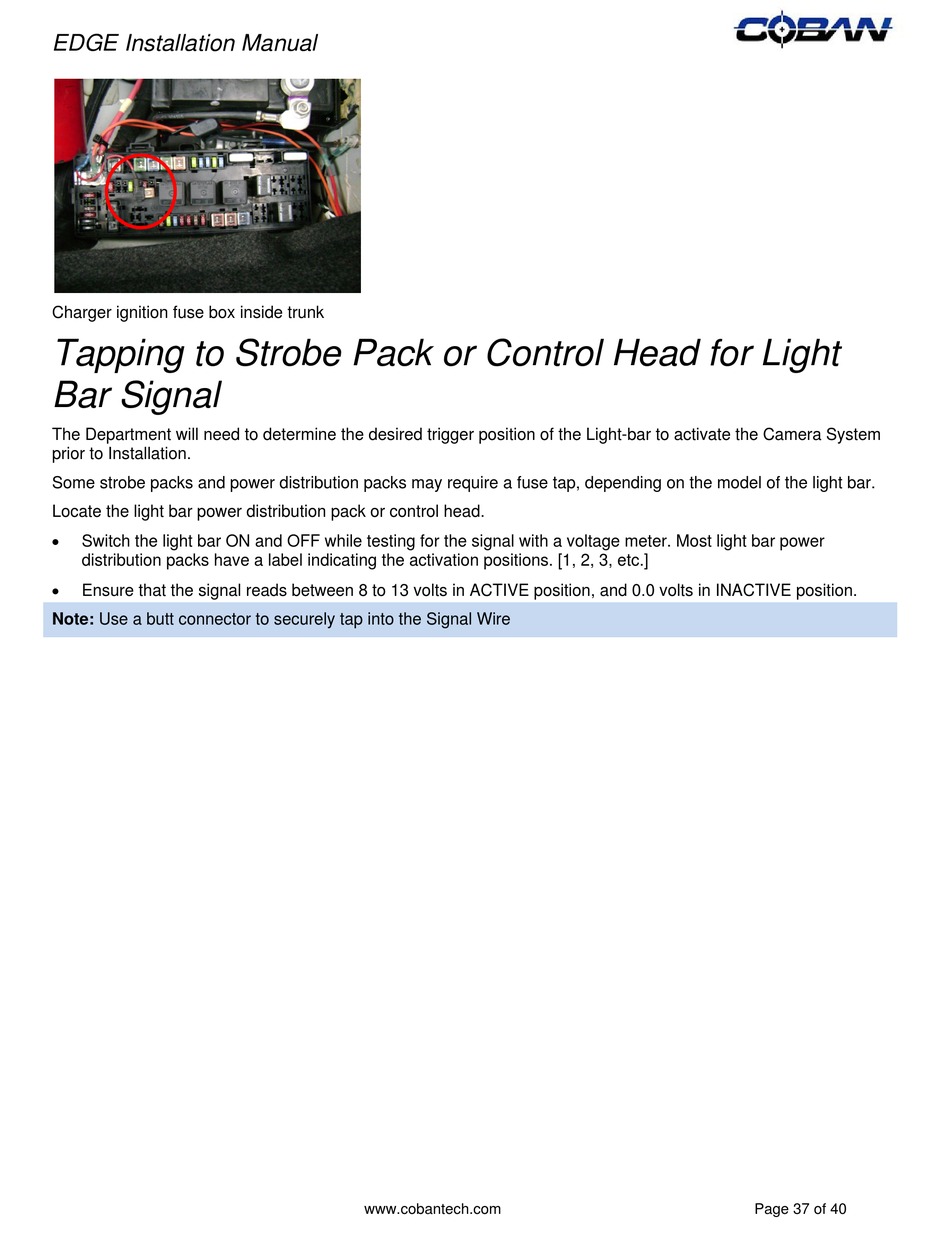

Charger ignition fuse box inside trunk
Tapping to Strobe Pack or Control Head for Light
Bar Signal
The Department will need to determine the desired trigger position of the Light-bar to activate the Camera System
prior to Installation.
Some strobe packs and power distribution packs may require a fuse tap, depending on the model of the light bar.
Locate the light bar power distribution pack or control head.

Switch the light bar ON and OFF while testing for the signal with a voltage meter. Most light bar power
distribution packs have a label indicating the activation positions. [1, 2, 3, etc.]

Ensure that the signal reads between 8 to 13 volts in ACTIVE position, and 0.0 volts in INACTIVE position.
Note: Use a butt connector to securely tap into the Signal Wire
www.cobantech.com Page 37 of 40
