EDGE Installation Manual

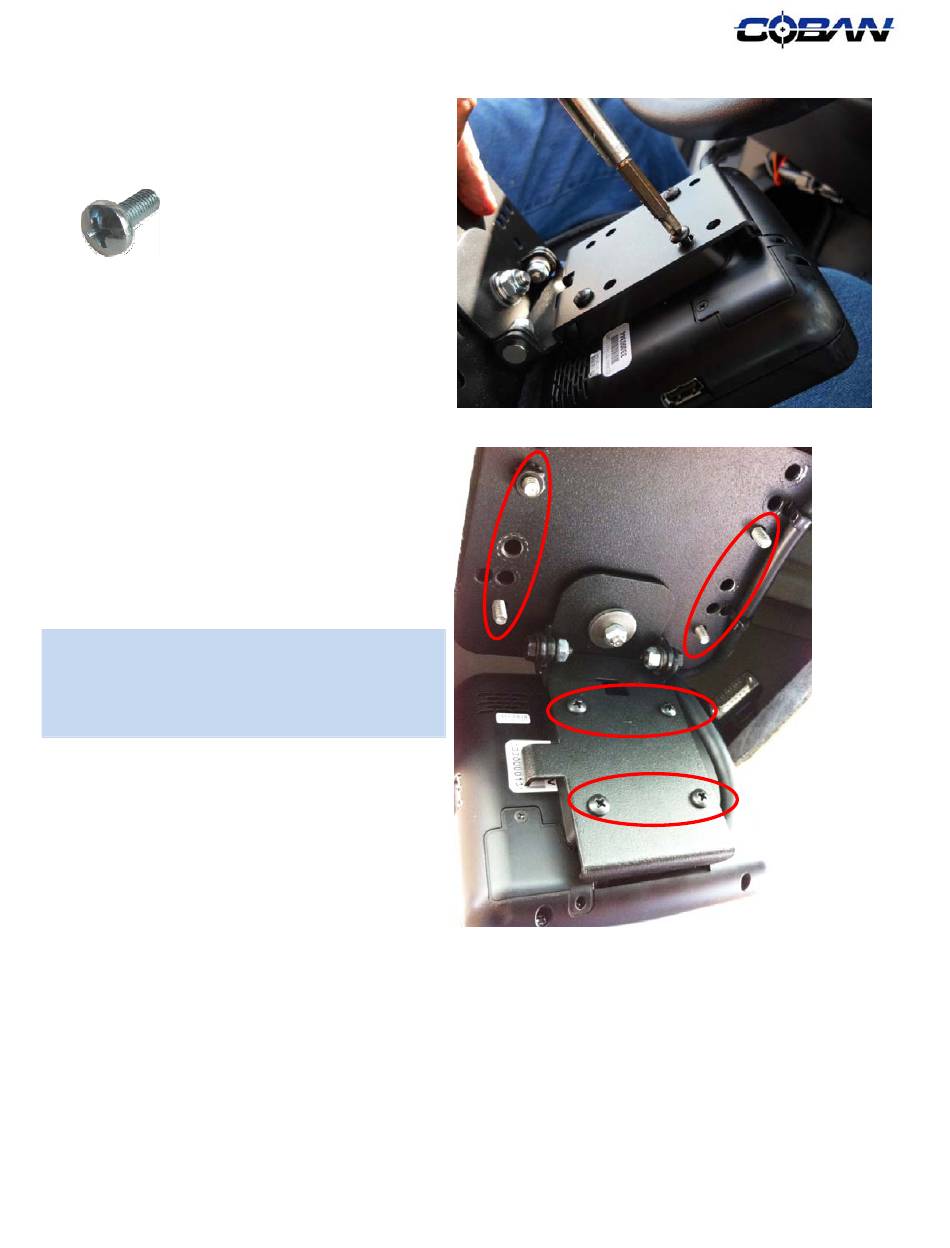

10. Use four (4) provided 10-32 X
head screws to secure the Edge monitor to the
back of the monitor mount.
11. Align the monitor mount onto the 4 threaded
studs that are on the Charger adaptor plate.
12. Secure the monitor mount with four (4) ¼-20
hex nuts.
13. Secure and zip ties the cable to the mount.
Please ensure there are enough slack on the
cable to allow rotation of the monitor.
Note: The monitor mount provides three possible
mounting positions on the camera mount, forward,
middle, and back. Choose the position that best fits
the needs of the vehicle and user when installing.
3
/ " Phillips pan
8
