EDGE Installation Manual
Cable Routing
COBAN Technologies recommends installing all EDGE system components prior to routing cabling throughout the
vehicle.
Note: The cable routing described in the following steps was captured during the installation of the EDGE system
in an overhead/visor orientation in a Dodge Charger. Different installation procedures will need to be followed for
installation of the EDGE system on other types of vehicles. For more information please contact COBAN
Technologies for more details on your specific vehicle type and orientation.

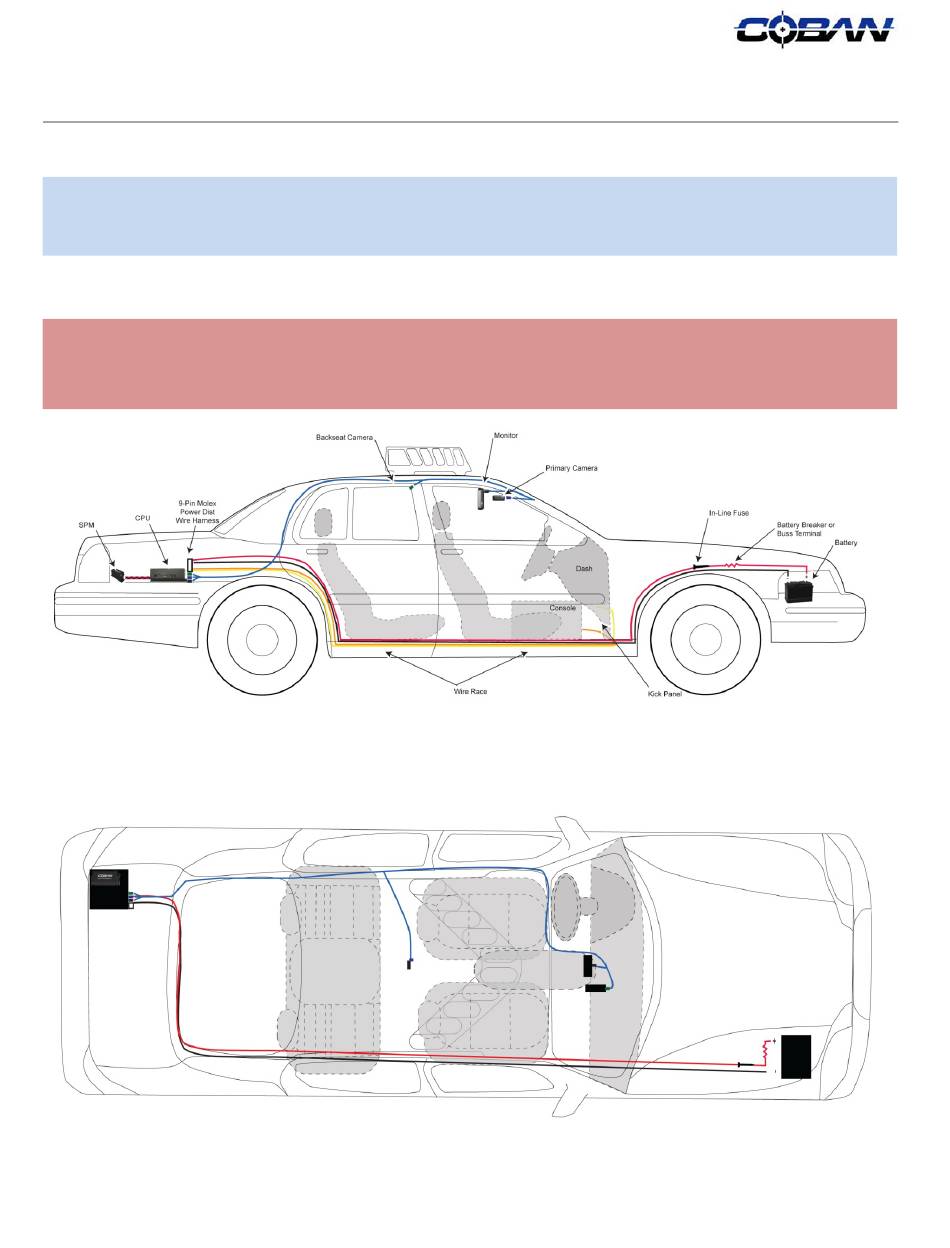

Route all color-coded COBAN EDGE system cables from the CPU to the COBAN components installed in the
head liner of the vehicle as shown in the illustration below.
WARNING: ALWAYS make sure to remove the In-line Fuse on the 12V power wire leading to the COBAN
equipment prior to 'jump-starting' any vehicle equipped with COBAN video equipment, as 'power surge' may
severely damage the system. COBAN Technologies will not be held liable for any damages to its equipment if
these instructions are not followed explicitly.
www.cobantech.com
Page 34 of 40
