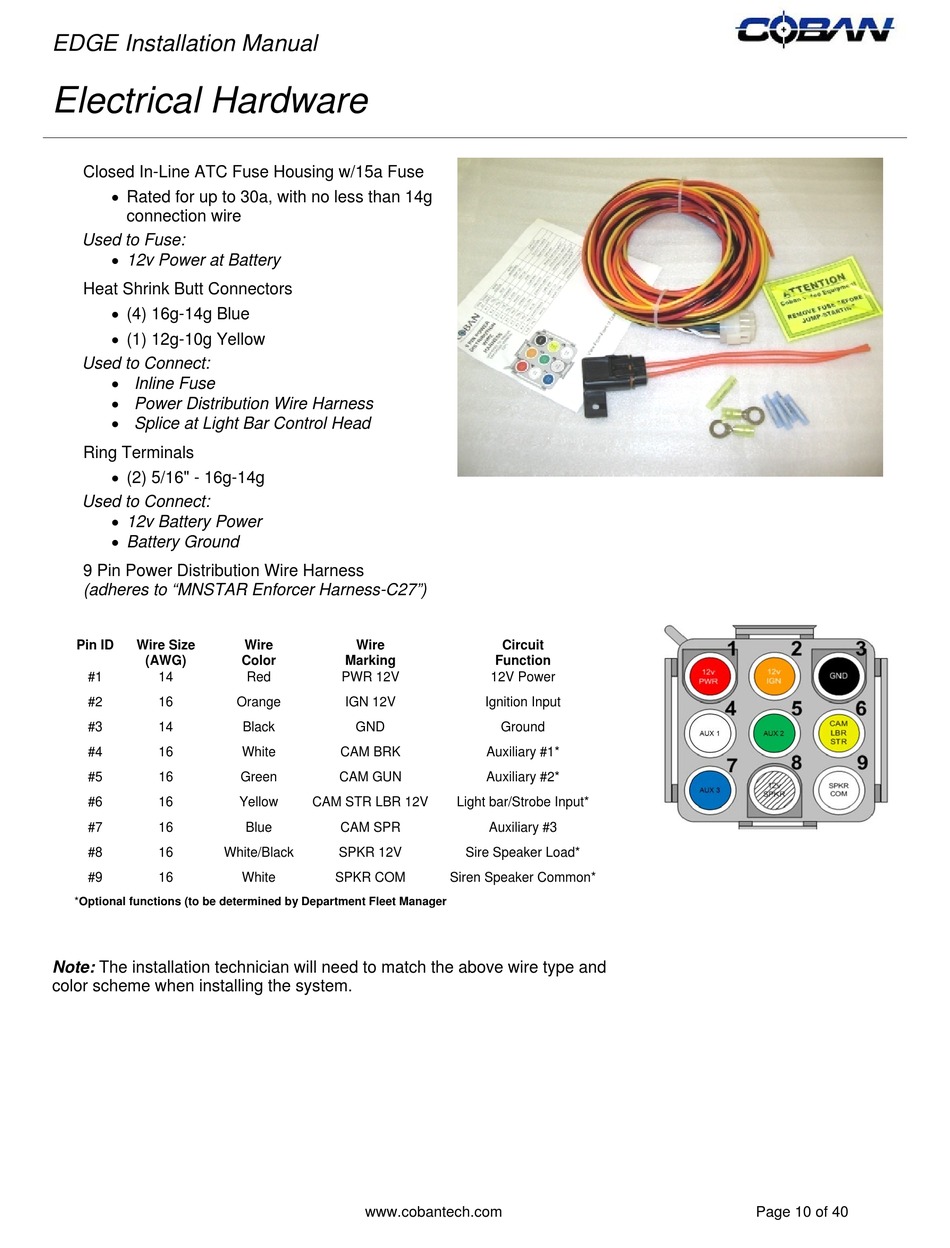

Electrical Hardware

Closed In-Line ATC Fuse Housing w/15a Fuse
 Rated for up to 30a, with no less than 14g
connection wire
Used to Fuse:
 12v Power at Battery
Heat Shrink Butt Connectors
 (4) 16g-14g Blue
 (1) 12g-10g Yellow
Used to Connect:
 Inline Fuse
 Power Distribution Wire Harness
 Splice at Light Bar Control Head
Ring Terminals
 (2) 5/16" - 16g-14g
Used to Connect:
 12v Battery Power
 Battery Ground
9 Pin Power Distribution Wire Harness
(adheres to "MNSTAR Enforcer Harness-C27")
Pin ID Wire Size
(AWG)
#1 14
#2 16
#3 14
#4 16
#5 16
#6 16
#7 16
#8 16 White/Black
#9 16
*Optional functions (to be determined by Department Fleet Manager
Note: The installation technician will need to match the above wire type and
color scheme when installing the system.
Wire Wire
Color Marking
Red PWR 12V
Orange IGN 12V
Black GND
White CAM BRK
Green CAM GUN
Yellow CAM STR LBR 12V
Blue CAM SPR
SPKR 12V
White SPKR COM
