CPU Installation

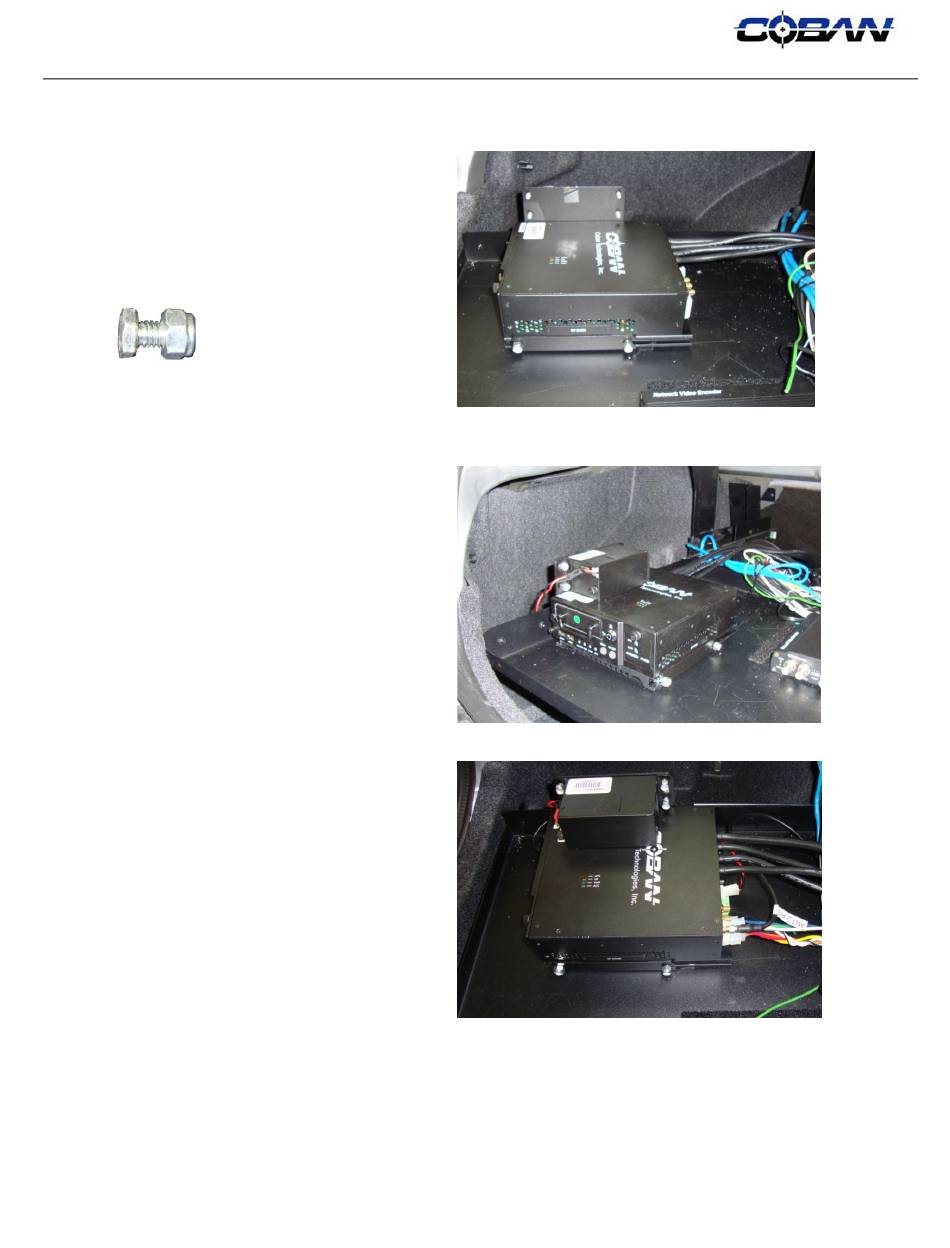

1. Slide the CPU into the CPU Mount and secure it
in place using four ¼ -20 x ½" hex head bolts
with nylon threaded nuts.
2. The four ( 4 ) ¼ -20 x ½" hex head bolts with
nylon threaded nuts slide into the grooves in the
railing of the CPU and secure it to the CPU
Mount.
3. Tighten the four ( 4 )¼ -20 x ½" hex head bolts
with nylon threaded nuts with a crescent wrench
and ensure that the CPU is secured in place.
4. Install the SPM into the bracket located above
the CPU.
5. Install and tighten four (4) ¼ -20 x ½" hex head
bolts with nylon threaded nuts with a crescent
wrench to secure it in place.
6. Plug the red and black wire connector from the
SPU into the UPS connector plug on the back of
the CPU.
7. Plug the 9-pin Molex connector into the 9-pin
connector plug.
8. Plug the CPU Mount fan unit USB into a USB
port located on the front or rear panel of the
CPU.
