MODEL:
SUPPLIED ACCESSORIES:

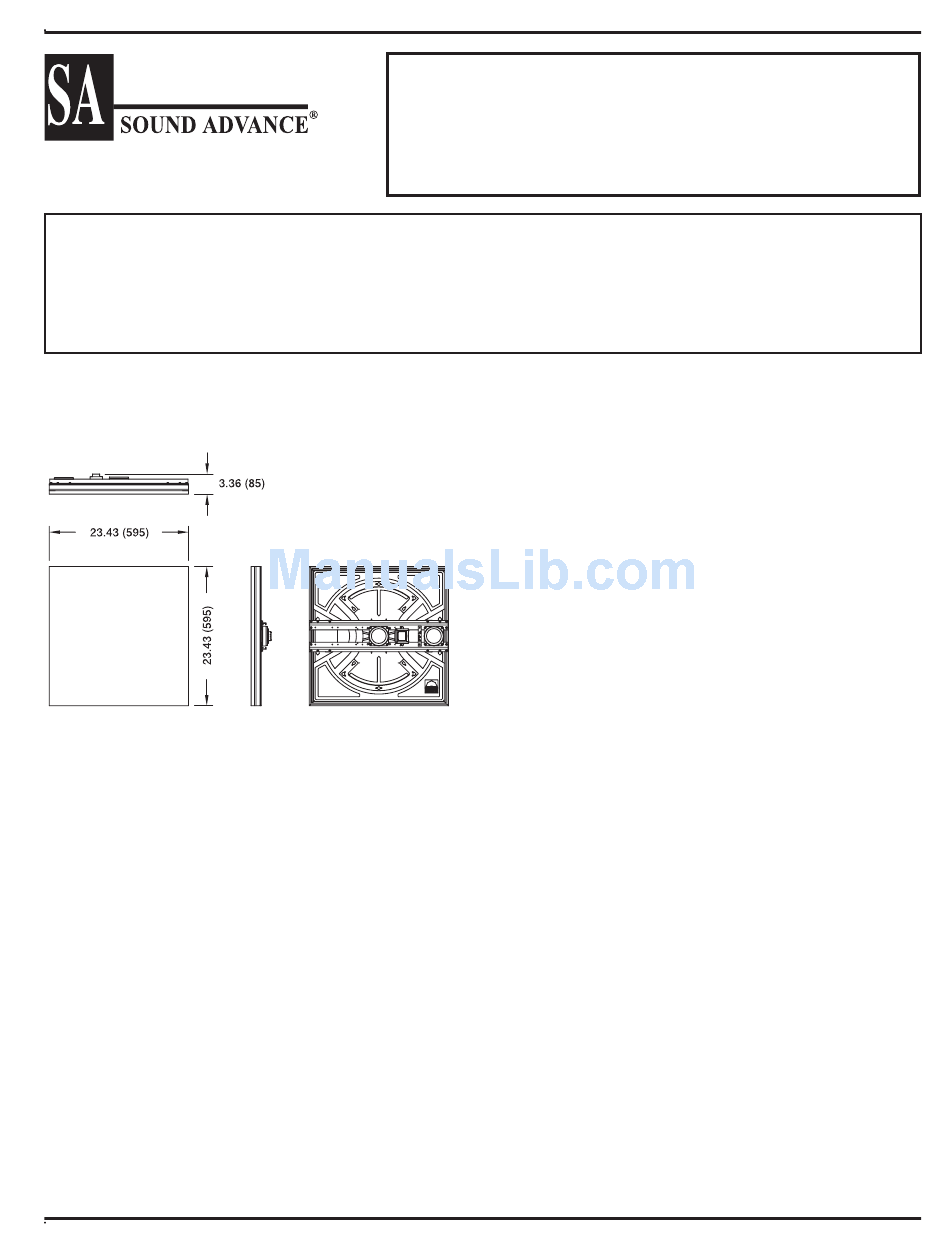

DIMENSIONS
All dimensions are in inches (mm)
PRODUCT WEIGHT
ST2432D Series: 9.8 lbs. (4.45 kg.)
RECOMMENDED MOUNTING LOCATIONS
Sound Advance products provide outstanding
performance and economic advantages when installed
in environments with an ambient noise level at or below
75dBA, where the speakers can be placed between 8 and
18 feet above the fl oor, and which are large enough to
accommodate at least 4 or more conventional loudspeak-
ers. When system design requirements indicate speaker to
speaker distances of greater than 40.0 ft., please contact
the factory for additional technical information on such
applications.
Sound Advance recommends mounting the ST2432D in
9/16" and 15/16" T-Bar Suspended Ceiling Systems
IMPORTANT NOTE: The ST2432D-series
SpeakerTile is designed to be installed in standard
2' x 2' suspended ceiling systems. It is suitable
Page 1
ST2432D Series SpeakerTile
ST2432D Series
Tegular Brackets
B.E.S.T. #272.133
960.066 Rev # 1
INSTALLATION INSTRUCTIONS
and Accessories
RECOMMENDED
ACCESSORIES:
for 9/16" and 15/16" ceiling grids, fl ush (lay-in)
or non-flush (tegular) mounting. However, if
the loudspeaker is to be installed on a tegular
(non-fl ush) mounting 15/16" ceiling grid, in order
to drop below the ceiling grid the front surface of
the diaphragm must be factory-routed.
Sound Advance will make every effort to match
the SpeakerTile to the customer's ceiling tiles.
However, our standard tegular routing is a 90
degree angle cut. We may not be able to match
beveled, chamfered or angled tegular tiles.
FACTORY-PROVIDED FINISH
The Sound Advance ST2432D-Series SpeakerTiles are
designed to be easily mounted into T-Bar suspended
ceiling systems, completely replacing a standard 2' x 2'
ceiling tile.
A variety of 3-dimensional and textured patterns are
available, providing a match to most suspended ceiling
tile patterns.
The ST2432D can optionally be covered with any water-
soluble fi nish, such as latex paint, or be covered with light
wallpaper, fabrics and selected texture coats*, further
enhancing the SpeakerTile's ability to blend invisibly with
almost any interior design choice.
[* Please contact the factory before applying any
textured coating, light wallpaper or fabrics to Sound
Advance products]
AVAILABLE MODELS
ST2432D: 70.7V/8-ohm, Dual-Driver SpeakerTile
ST2432D#: Same as ST2432D, with factory-applied
3-dimensional or textured pattern
®
PBB2.0 Backbox
Safety Strap
ECS2432D Enclosure
Compensation Module
ST2432D Series
Advertisement
Table of Contents
Related Manuals for Sound Advance SpeakerTile ST2432D Series
Summary of Contents for Sound Advance SpeakerTile ST2432D Series
-
Page 1: Installation Instructions
A variety of 3-dimensional and textured patterns are available, providing a match to most suspended ceiling tile patterns. The ST2432D can optionally be covered with any water- soluble fi nish, such as latex paint, or be covered with light wallpaper, fabrics and selected texture coats*, further enhancing the SpeakerTile’s ability to blend invisibly with... - Page 2 ST2432D Series Tegular Brackets 1. If not previously done, run speaker wires or conduit (as per local Building Code requirements) into the se- lected mounting location. Fasten and seal as required. Connect the speaker wires to the correct (+) and (–) SpeakerTile terminals and select the appropriate power tap.
- Page 3 (perpendicular) and then fasten them properly to avoid further movement. If not previously done, run speaker wires or conduit (as per local Building Code requirements) into the selected mounting location. Fasten and seal as required.
- Page 4 1. Remove the four tegular brackets attached to the sides of the SpeakerTile frame. See Figure 1 on page 2 . 2. If not previously done, run speaker wires or conduit (as per local Building Code requirements) into the selected mounting location.
- Page 5 It is recommended that you use these as a matter of practice. It insures a secure installation and is a good safety practice. Insure that the chosen 960.066 Rev # 1 For Flush For Tegular Figure 12 Figure 13 ST2432D Series...
- Page 6 Figure 15 9/16” CEILING GRID SYSTEM: FLUSH OR TEGULAR MOUNT INSTALLATION WITH BACKBOX CAUTION: Use of a safety strap to secure ST2432D SpeakerTile systems to backboxes or appropriate ceiling structure elements which are sufficiently strong and well-attached during installation is strongly recommended.
- Page 7 1. Place the ST2432D SpeakerTile on a clean work area with the fl at surface facing down. Remove all four Tegu- lar Brackets (see Figure 1 on page 2).
- Page 8 IMPORTANT: To avoid any noise or damage to the system when in operation, be sure speaker wires or other objects are not in contact with the back of the SpeakerTile surface. 3. Remove the protective cardboard from the front of the SpeakerTile.
