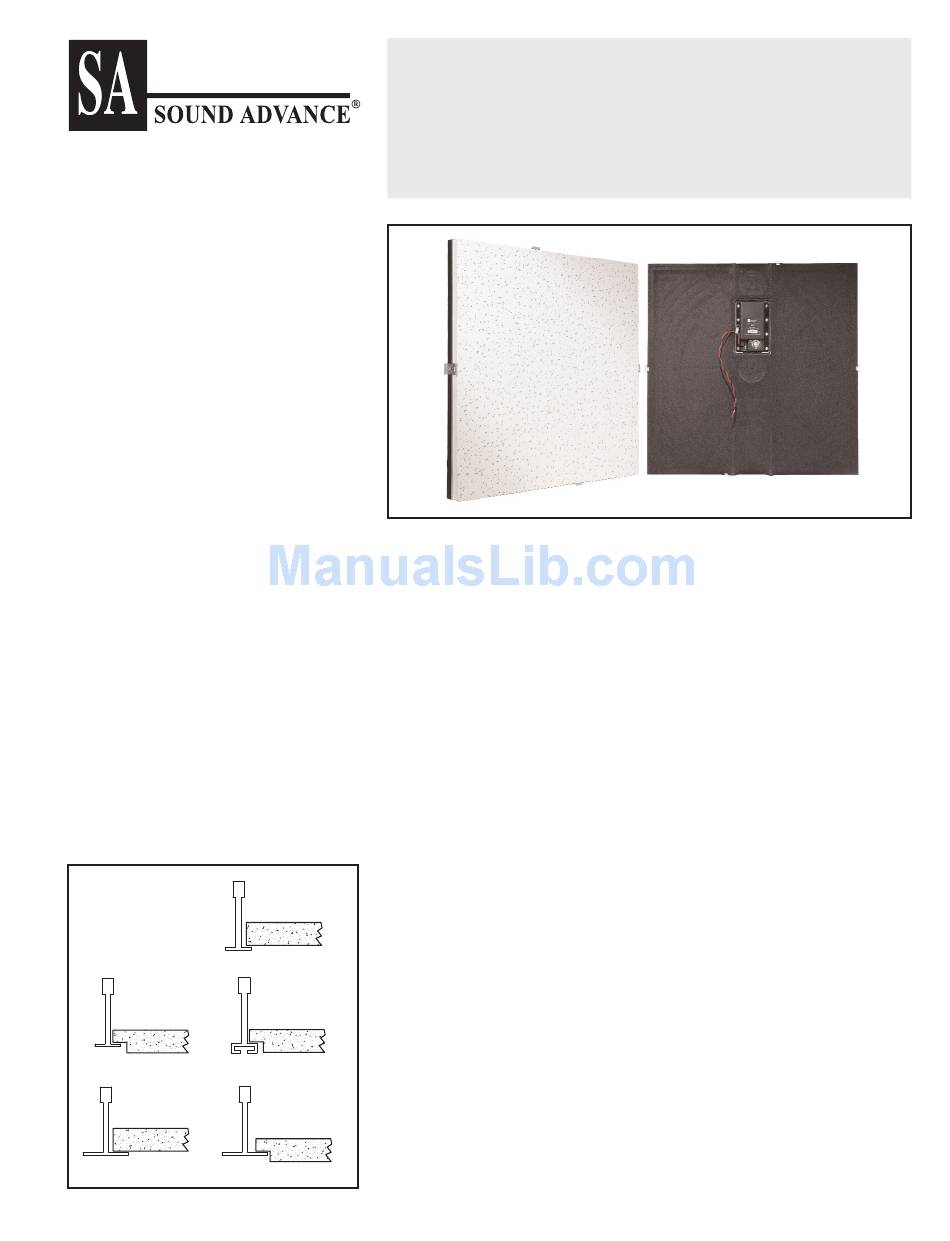

Sound Advance SpeakerTile ST2432D Specification Sheet

Recommended Installations:
• 9 / " T-bar suspended ceiling systems
16
• 15 / " T-bar suspended ceiling systems
16
Recommended Environment:
• Indoor or weather-protected outdoor
Recommended Accessories:
• PBB 2.0 Backbox kit
• ECS2432D Enclosure compensation module
• Safety Strap (secures SpeakerTile to back-
box)

Available Models:

ST2432D
:

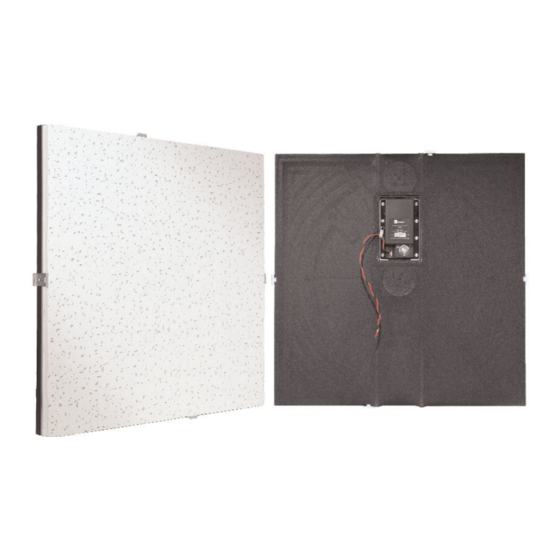

Plain white (shown in photo)
ST2432D-3D1
:
Fine Fissured (or similar) tile pattern
®
ST2432D-3D2:
Cortega (or similar) tile pattern
®
ST2432D-3D4:
Fissured (or similar) tile pattern
®
ST2432D-3D7:
Optima /Ultima (or similar) tile pattern
® ®
ST2432D-3D21:
Cirrus (or similar) tile pattern
®
Tegular cuts are available to match tegular
ceiling tiles on 15 / " T-bar grids. Tegular cuts
16
are not required to match tegular ceiling tiles
on 9 / " T-bar grids. (See below for ceiling tile
16
examples.) Call Sound Advance for details.
T-Bar and
Ceiling Tile
Variations
Tegular
9
/ " Grid
16
Flush
15
/ " Grid
16
Fine Fissured, Cortega, Fissured, Optima, Ultima and Cirrus are registered trademarks of Armstrong World Industries.
HIGH QUALITY, WIDE-DISPERSION
INVISIBLE SPEAKERTILE
The Sound Advance
bandwidth, wide dispersion, and a highly-refined aesthetic presentation, designed
for commercial installations. It is part of a unique family of truly invisible distributed
sound products from Sound Advance.
All ST2432D SpeakerTile models are available in several mounting options,
allowing them to be easily installed into standard T-bar suspended ceiling systems,
completely replacing a standard 2 ft x 2 ft ceiling tile.
The ST2432D is available in six different models, featuring a selection of standard
3-dimensional patterns or factory-applied surface finishes that allow a match with
almost any suspended ceiling tile pattern. The white Expanded PolyStyrene
front surface of the speaker tile allows all models to optionally be finished on-site
with any water-soluble finish, such as latex paint, or covered with light wallpaper,
fabrics and selected texture coats*, further enhancing the SpeakerTile's ability to
blend invisibly with almost any interior design choice.
Flush
Patented Planar Diaphragm Technology™ allows a ST2432D that has been
9
/ " Grid
16
properly installed in a suspended ceiling to radiate sound in a 140° hemispherical
pattern with smooth, even coverage. This dispersion characteristic allows ST2432D
speakers to be spaced farther apart than narrow-dispersion conventional speakers,
reducing the total quantity of loudspeakers required in almost any installation.
Tegular
The ST2432D is a two-way, full-range device that utilizes a crossover centered at
9
/ " Grid
16
1,200Hz, with 12dB per octave slopes for both low-pass and high-pass sections.
The ST2432D is transformer-coupled, with the following input taps: 0.5W, 1W, 2W,
4W, 8W, 16W, 32W and 8-ohm bypass.
An optional PBB 2.0 backbox is available, and is recommended for use when
the SpeakerTile is installed in air handling spaces. An optional ECS enclosure
Tegular
compensation module is available, to optimize performance when the ST2432D is
15
/ " Grid
16
used with the PBB 2.0.
[*Please contact Sound Advance for advice before applying any textured coating, light
wallpaper or fabrics to the ST2432D.]
ST2432D Series
24" x 24" Hemispherically-Radiating
ST2432D SpeakerTile
®
SpeakerTile
®
is a remarkable combination of wide
®
®
(EPS)
®
