Sound Advance CT12F Installation Instructions Manual

With accessories
Hide thumbs
Table of Contents

Advertisement

Quick Links

SA
SOUND ADVANCE
SOUND ADVANCE SYSTEMS
MODEL:
APPLICATIONS:
SUPPLIED ACCESSORIES:
REQUIRED ACCESSORIES:
TECHNICAL SPECIFICATIONS

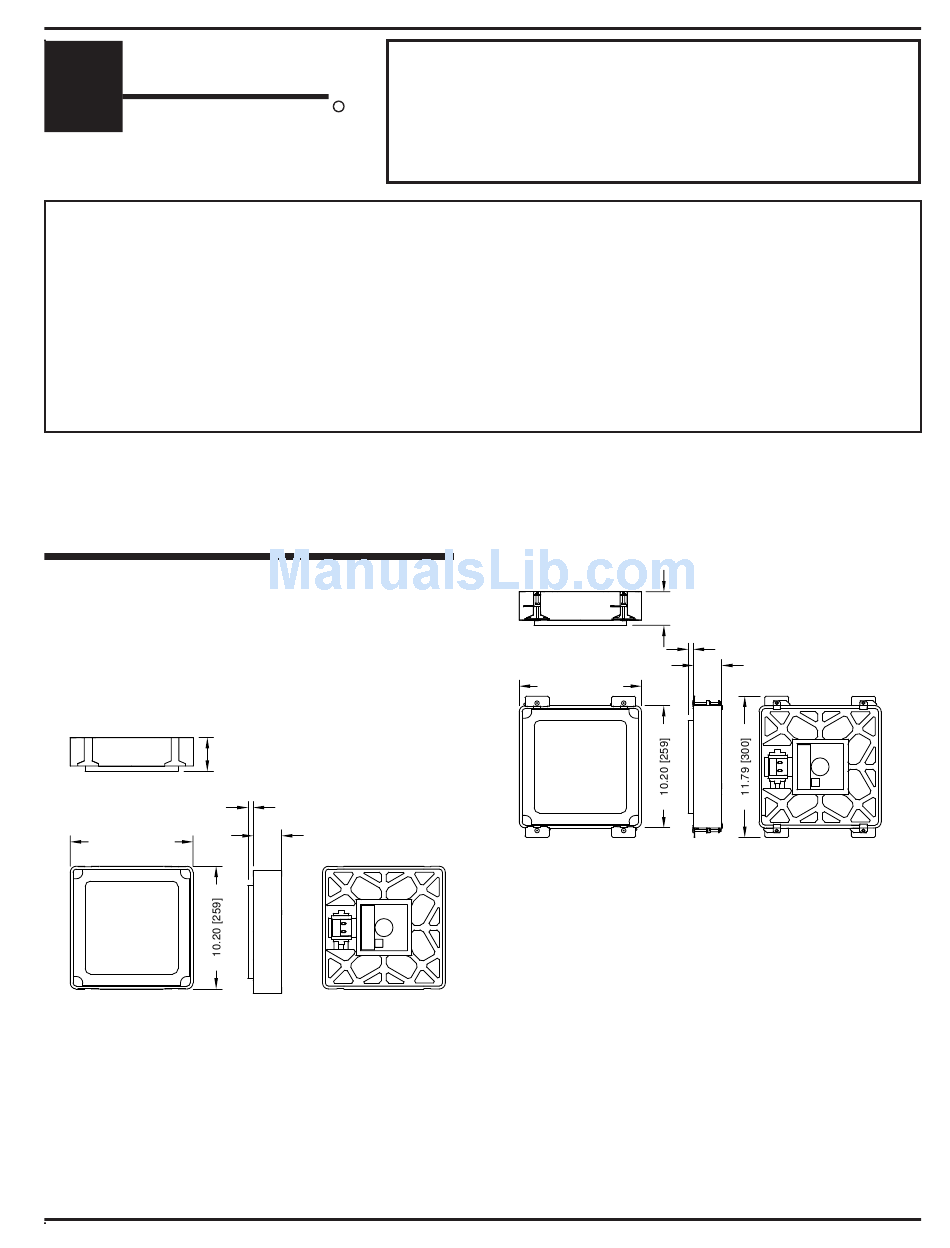

DIMENSIONS
Unless otherwise specified all dimensions are in
inches (mm).
2.80 [71]
10.20 [259]
CT12F and CT12FT
Page 1
R
CT12F, CT12FT, CT12FH, CT12FHT
Installation into sheetrock ceilings*, Installation into drop ceilings*
Installation into Concealed Spline Ceilings*
Installation into walls*, Surface Mount installation**
*(with or without backbox - new or existing construction)
**(SMBOX12 required)
One (1) Installation Aid (supplied with the CT12FH and CT12FHT)
See text
.43 [11]
2.36 [60]
960.064 Rev # 0
INSTALLATION INSTRUCTIONS
CT12F Loudspeaker
with Accessories
10.20 [259]
CT12FH and CT12FHT
PRODUCT WEIGHT
CT12F 2.4 lbs. (1.11 KG.); CT12FT 3.0 lbs. (1.36
kg.); CT12FH 2.8 lbs.(1.27 kg,); CT12FHT 3.3 lbs.(1.50
kg.).
MODELS
CT12F - 8 ohm, Single Driver Loudspeaker For
Torsion Spring Mounting
CT12FT - Single driver Loudspeaker for Torsion
Spring Mounting W/8 Watt Transformer
CT12FH - 8 ohm, Single Driver Loudspeaker
with QuadCam™ Mounting Hardware
CT12FHT - Single Driver Loudspeaker with
QuadCam™ Mounting Hardware W/8 Watt Transformer
2.80 [71]
.43 [11]
2.36 [60]
CT12F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT12F and is the answer not in the manual?

Questions and answers

Related Manuals for Sound Advance CT12F

Summary of Contents for Sound Advance CT12F

  • Page 1 .43 [11] 2.36 [60] 10.20 [259] CT12FH and CT12FHT PRODUCT WEIGHT CT12F 2.4 lbs. (1.11 KG.); CT12FT 3.0 lbs. (1.36 kg.); CT12FH 2.8 lbs.(1.27 kg,); CT12FHT 3.3 lbs.(1.50 kg.). MODELS CT12F and CT12FT CT12F - 8 ohm, Single Driver Loudspeaker For...

  • Page 2: Accessories Data

    SOUND ADVANCE SYSTEMS recommends, as a good safety practice, the use of tile bridges or sup- Please note: With either the CT12F or the CT12FT ports. models, which use the SOUND ADVANCE Torsion...

  • Page 3: Mounting Hardware

    (0.50 kg.) Must be used in horizontal applications, the CT12FH or CT12FHT models only. Other CT12F employing the PBB1.2S backbox, and is recommended models may not be used with the SMBOX12. Please for all installations as a safety measure.

  • Page 4: Assembly Information

    ASSEMBLY INFORMATION CT12FH/FHT PBB1.2S TBS12 PBB1.2S TBS12 CT12F/FT CT12FH/FHT FMB-FS INSTALLATION DATA UNPACKING AND INSPECTION CSB-F FMB-F Carefully open the shipping cartons and remove all contents . Inspect the product and accessories for damage. Report damage or shortages to SOUND ADVANCE SYSTEMS INC., immediately.

  • Page 5: New Construction

    These instructions apply if you will be installing a CT12F/FT with a FMB-FS Bezel or a CT12FH/FHT with a FMB-F Bezel on sheet rock ceilings or walls, prior to the closing of the ceiling/wall.
  • Page 6 It is good safety practice to use this option even if not required by local or other codes ( see Figs. 4 and 5). fig. 3 CT12F 960.064 Rev # 0 Page 6...

  • Page 7: Existing Construction

    EXISTING CONSTRUCTION 24" These instructions apply if you will be installing a CT12F/FT with a FMB-FS Bezel or a CT12FH/FHT with a FMB-F Bezel on sheet rock ceilings. The CT12FH/ FHT with FMB-F Bezel can also be installed on walls, but TBS12S Support Bridge is not required.
  • Page 8 DROP TILE CEILING INSTALLATIONS NEW CONSTRUCTION These instructions apply if you will be installing a CT12F/FT with a FMB-FS Bezel or a CT12FH/FHT with a FMB-F Bezel into drop tile ceilings, prior to the fig. 9 installation of the ceiling grid system.
  • Page 9 EXISTING CONSTRUCTION These instructions apply if you will be installing a CT12F/FT with a FMB-FS Bezel or a CT12FH/FHT with a FMB-F Bezel on drop tile ceilings. IF A PBB1.2S BACKBOX IS NOT REQUIRED (VERIFY THAT LOCAL CODES DO NOT REQUIRE A BACKBOX): 1.
  • Page 10 4. Bring speaker wiring into the backbox and fasten properly. 5. Proceed to the “Installing the Loudspeaker” section on these installation instructions for the selected loudspeaker and bezel combination. CT12F 960.064 Rev # 0 Page 10...

  • Page 11: Surface Mount Installation

    5. If not previously done, run speaker wires or conduit (as per local Building Code requirements) into the SMBOX12. Fasten and seal as required. fig. 20 Page 11 960.064 Rev # 0 CT12F...

  • Page 12: Installing The Loudspeaker

    2. Carefully insert the loudspeaker into the installa- avoid any noise or damage to the tion aid. (please see fig. 23) fig. 23 fig. 25 CT12F 960.064 Rev # 0 Page 12...
  • Page 13 NOTE: Avoid dripping solder onto any portion of the loudspeaker. 2. Examine the loudspeaker mounting system. Verify that cams are in the closed position (flush to the speaker). (please see fig. 28) Page 13 960.064 Rev # 0 CT12F...
  • Page 14 INSTALLING THE CT12F/FT WITH THE FMB- FS TORSION SPRING BEZEL: 1. Place the loudspeaker on a clean table, with the flat surface facing up 2.
  • Page 15 ADVANCE SYSTEMS , Customer Support Services at (800) 592-4644 or (714)556-2378 Monday-Friday 7 AM to 5 PM Pacific Time. (FAX (714) 556-5425 SOUND ADVANCE SOUND ADVANCE SYSTEMS Inc. 3202 So. Shannon St., Santa Ana, CA 92704-6353 (714)556-2378 (800)592-4644 FAX (714)556-5425 WWW.SOUNDADVANCE.COM Page 15 960.064 Rev # 0...
