Sound Advance ST2416S Series Specification Sheet

Recommended Installations:
• 9 / " T-bar suspended ceiling systems
16
• 15 / " T-bar suspended ceiling systems
16
Recommended Environment:
• Indoor or weather-protected outdoor
Recommended Accessories:
• Safety Strap (secures SpeakerTile to
building structure)

Available Models:

ST2416S
:

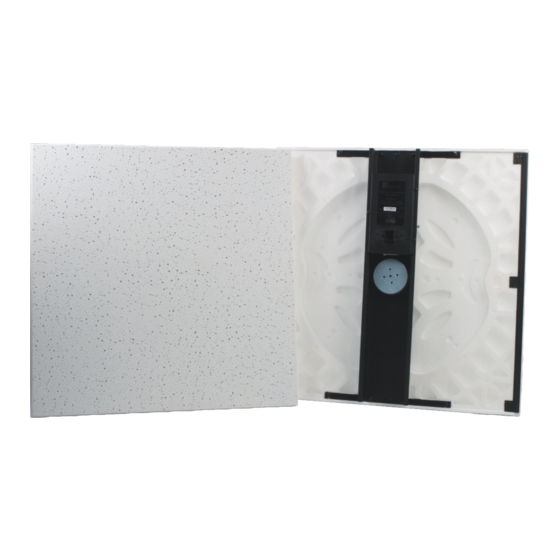

Plain white (shown in photo)
ST2416S-3D1
:
Fine Fissured (or similar) tile pattern
®
ST2416S-3D2:
Cortega (or similar) tile pattern
®
ST2416S-3D4:
Fissured (or similar) tile pattern
®
ST2416S-3D7:
Optima /Ultima (or similar) tile pattern
® ®
ST2416S-3D21:
Cirrus (or similar) tile pattern
®
Tegular cuts are available to match tegular
ceiling tiles on 15 / " T-bar grids. Tegular cuts
16
are not required to match tegular ceiling tiles
on 9 / " T-bar grids. (See below for ceiling tile
16
examples.) Call Sound Advance for details.
Compatible Ceiling Tile Types
Flush Tegular
15 15
/ " Grid /
16 16
9
/ " Grid
16
Fine Fissured, Cortega, Fissured, Optima, Ultima and Cirrus are registered trademarks of Armstrong World Industries.
HIGH QUALITY, WIDE-DISPERSION
INVISIBLE SPEAKERTILE
The Sound Advance
bandwidth, wide dispersion, and a highly-refined aesthetic presentation, designed
for commercial installations. It is part of a unique family of truly invisible distributed
sound products from Sound Advance.
All ST2416S SpeakerTile models are available in several mounting options,
allowing them to be easily installed into standard T-bar suspended ceiling systems,
completely replacing a standard 2 ft x 2 ft ceiling tile.
The ST2416S is available in six different models, featuring a selection of standard
3-dimensional patterns or factory-applied surface finishes that allow a match with
almost any suspended ceiling tile pattern. The white Expanded PolyStyrene
front surface of the SpeakerTile allows all models to optionally be finished on-site
with any water-soluble finish, such as latex paint, or covered with light wallpaper,
fabrics and selected texture coats*, further enhancing the SpeakerTile's ability to
blend invisibly with almost any interior design choice.
Patented Planar Diaphragm Technology™ allows a ST2416S that has been
properly installed in a suspended ceiling to radiate sound in a 140° hemispherical
pattern with smooth, even coverage. This dispersion characteristic allows ST2416S
speakers to be spaced farther apart than narrow-dispersion conventional speakers,
reducing the total quantity of loudspeakers required in almost any installation.
The ST2416S is a one-way, full-range device. The ST2416S is transformer-
coupled, with the following input taps: 0.5W, 1W, 2W, 4W, 8W, 16W and 8-ohm
" Grid
bypass.
[*Please contact Sound Advance for advice before applying any textured coating, light
wallpaper or fabrics to the ST2416S.]
9
/ " Grid
16
ST2416S Series
24" x 24" Hemispherically-Radiating
ST2416S SpeakerTile
®
SpeakerTile
®
is a remarkable combination of wide
®
®
(EPS)
®
