Sound Advance FMS530 Specifications

Recommended Installations:
• On walls, on poles, under eaves, indoor and
outdoors
Recommended Applications:
• High-quality foreground and background
music
• Paging
• Public address

Included Accessories:

• FastMount bracket
®
Compatible Accessories:
• Omnimount 20.5-Series brackets
(threaded inserts provided)
Architects and Engineers
Specification:
The loudspeaker shall be of the two-way type
comprising a single surface-mount enclosure
containing one polypropylene low frequency
transducer (FMS860: 8"; FMS660: 6½";
FMS530: 5¼") and one
polyurethane dome high frequency transducer.
Frequency response shall be 45Hz – 20kHz
(FMS860); 55Hz – 20kHz (FMS660); 65Hz –
20kHz (FMS530);. Total power handling shall
be 125 watts (FMS860); 80 watts (FMS660);
70 watts (FMS530) program. Sensitivity meas-
ured with 2.83 volts input at 1 meter on-axis
shall be 91dB (FMS860); 89dB (FMS660);
88dB (FMS530). The unit shall be supplied
with a line matching transformer suitable for
100 volt or 70 volt operation with a front-
mounted control allowing user-selectable
power taps and an 8 ohm bypass.
The speaker shall include a FastMount brack-
et that allows for a full 180° of pivot while
keeping the speaker less than 1" from the
mounting surface.
Wire shall be terminated on the front of the
enclosure and fed through a Protected Access
Connection Terminal system. The enclosure
and baffle shall be injection molded using
polypropylene, in either black or white.
The loudspeaker shall be the Sound Advance
FastMount FMS860B (black), FMS860W
(white), FMS660B (black), FMS660W (white),
FMS530B (black) or FMS530W (white), as
described above. No other system shall be
acceptable unless the above combined
performance specifications are equaled or
exceeded.
FMS860/FMS660/FMS530
HIGH-QUALITY
OUTDOOR
SPEAKERS
The Sound
FastMount
sists of three extended-
bandwidth
that establish
benchmark for rugged-
ness, weather-resistance,
ease of installation and
performance in commer-
cial/professional outdoor
speakers. All FastMount models feature a polypropylene cone woofer (FMS860: 8";
FMS660: 6½"; FMS530: 5¼") and a 1" polyurethane dome tweeter that ensure
superior-quality sound even in outdoor areas with minimal reflecting surfaces.
The exclusive patent-pending FastMount bracket allows these loudspeakers to easily
snap and lock securely into place. Removal is performed via a hidden release tab
located behind the speaker grille. These brackets make it easy for installers to
mount FastMount loudspeakers as close as one inch to the mounting surface in a
vertical or horizontal position, on a pole or across a corner. Once in place,
FastMount loudspeakers can pivot 180 degrees and can be rotated by a regulated
indexed position system that ensures consistent placement from one speaker to
1" (25mm)
another for uniform appearance and accurate soundfield reproduction.
An equally valuable, all-new FastMount feature is a new Protected-Access
Connection Terminal (PACT) that protects wire connectors from weather corrosion
while making installation easier. PACT accepts input cabling via concealed,
weatherproof, rubber-grommeted rear-panel ports and directs it to the front,
baffle-side of each loudspeaker. Signal connections are made there, behind a
sealed access panel, while the speaker is secure in its mounting bracket. This
eliminates any risky acrobatics on ladders for installers.
FastMount speakers are transformer-coupled, with taps for both 70V and 100V
operation and 8-ohm bypass. All FastMount models feature a rugged, paintable,
weather-resistant polypropylene enclosure and a paintable perforated aluminum
grille, and are available in black and white.
Protected Access Connection Terminal (PACT)
FastMount
Advance
®
series con-
®
loudspeakers
a new
Speaker Connection
Front Panel Terminals
Outdoor Speakers
®

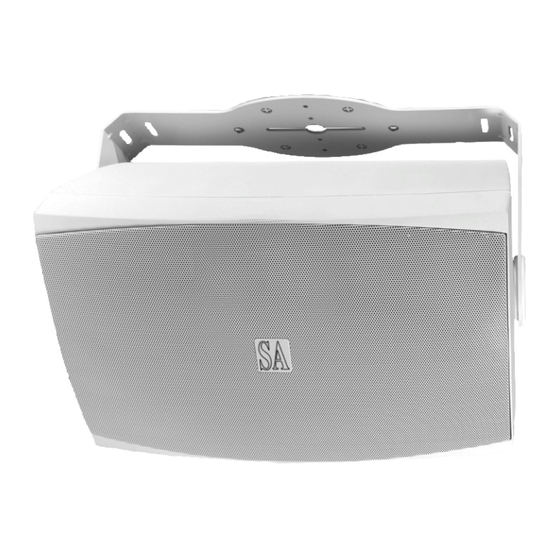

FMS660W shown
Speaker Wire Entry
Wire Tunnel
Wire Grommet
