APPLICATIONS:

REQUIRED ACCESSORIES:

TECHNICAL SPECIFICATIONS

CT8
: 8 ohm and 16W multi-tap 70.7V or 100V transformer,
with standard screw-mounting hardware

DIMENSIONS

Unless otherwise specifi ed all dimensions are in inches
[mm]
13.00 [330]

PRODUCT WEIGHT:

Page 1

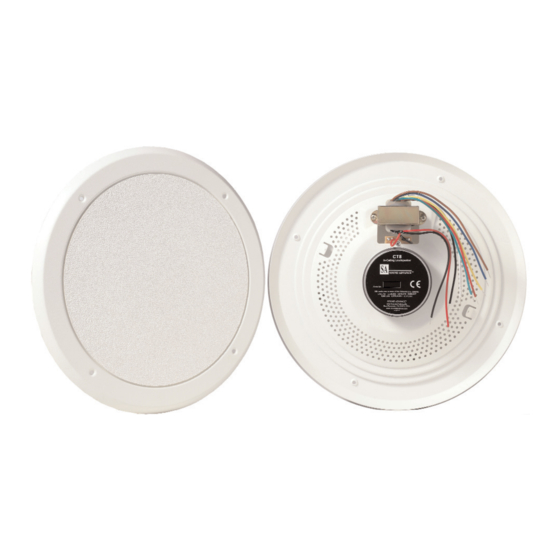

CT8 Loudspeaker with Accessories
Installation into sheetrock ceilings** ,Installation into drop ceilings**
Installation into Concealed Spline Ceilings**, Installation into walls**
**with or without backbox - new or existing construction
See Text
.37 [9]
2.33 [59]
4.1 lb (1.88kg)
33-4200

INSTALLATION INSTRUCTIONS

ACCESSORY DATA

PBB8-10 Industry Standard Stackable Enclosure (Back-
can). Weight 1.9 lb. (0.86 kg.)
10.25 [260]
12.25 [311]
The CT8 loudspeaker can be installed using most indus-
try standard 8" loudspeaker mounting accessories and
will retrofi t into almost all existing standard 8" diameter
loudspeaker openings.
UMB8-10 Universal Mounting Bracket (Tile Bridge), for
use with or without backcan. Weight 2.8 lb. (1.22kg)
23.75 [603.3]
04/06
4.25 [108]
1.29 [32.8]
13.44 [341.4]
CT8
