INSTALLATION INSTRUCTIONS
FM1 Series Loudspeaker
®
FM1 F
M
Integrated Loudspeaker System
AST
OUNT
Installation into sheetrock ceilings, installation into drop ceilings.
New or existing construction.
TBS-FM1 Support Bridge:
NCB-FM1 New Construction Bracket:
TBS-FM1 Support Bridge
NCB-FM1 New Construction Bracket

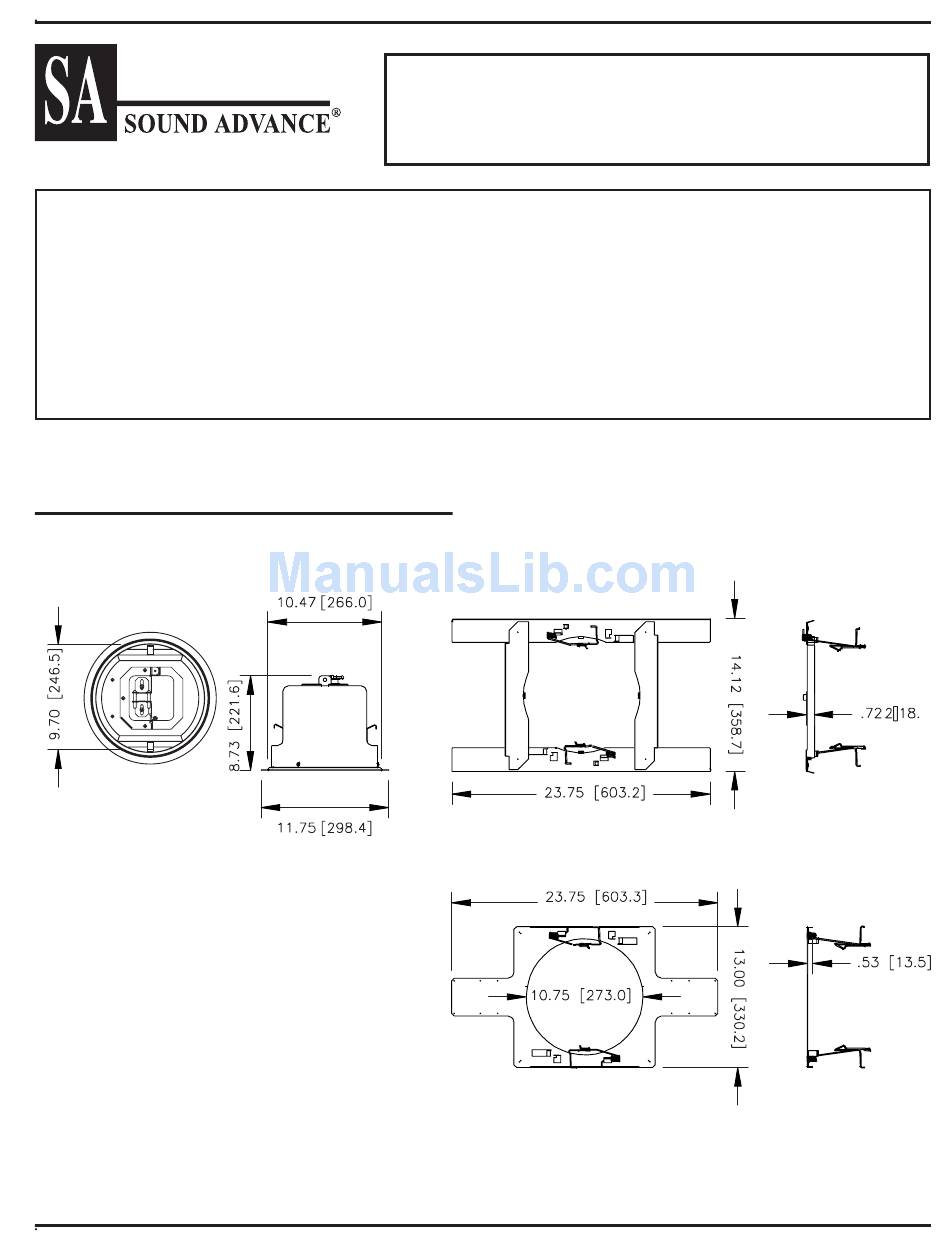

Figure 1: FM1 Dimensions
33-4210
Shipped with loudspeaker if
ordered for Existing Construction.
Shipped separately if ordered
for New Construction.
WEIGHT (SPEAKER ONLY):
05/06
6.8 lbs. (3.1 kg.)
FM1 F
M
AST
OUNT
