Summary of Contents for Gilson MICROMAN E M25E

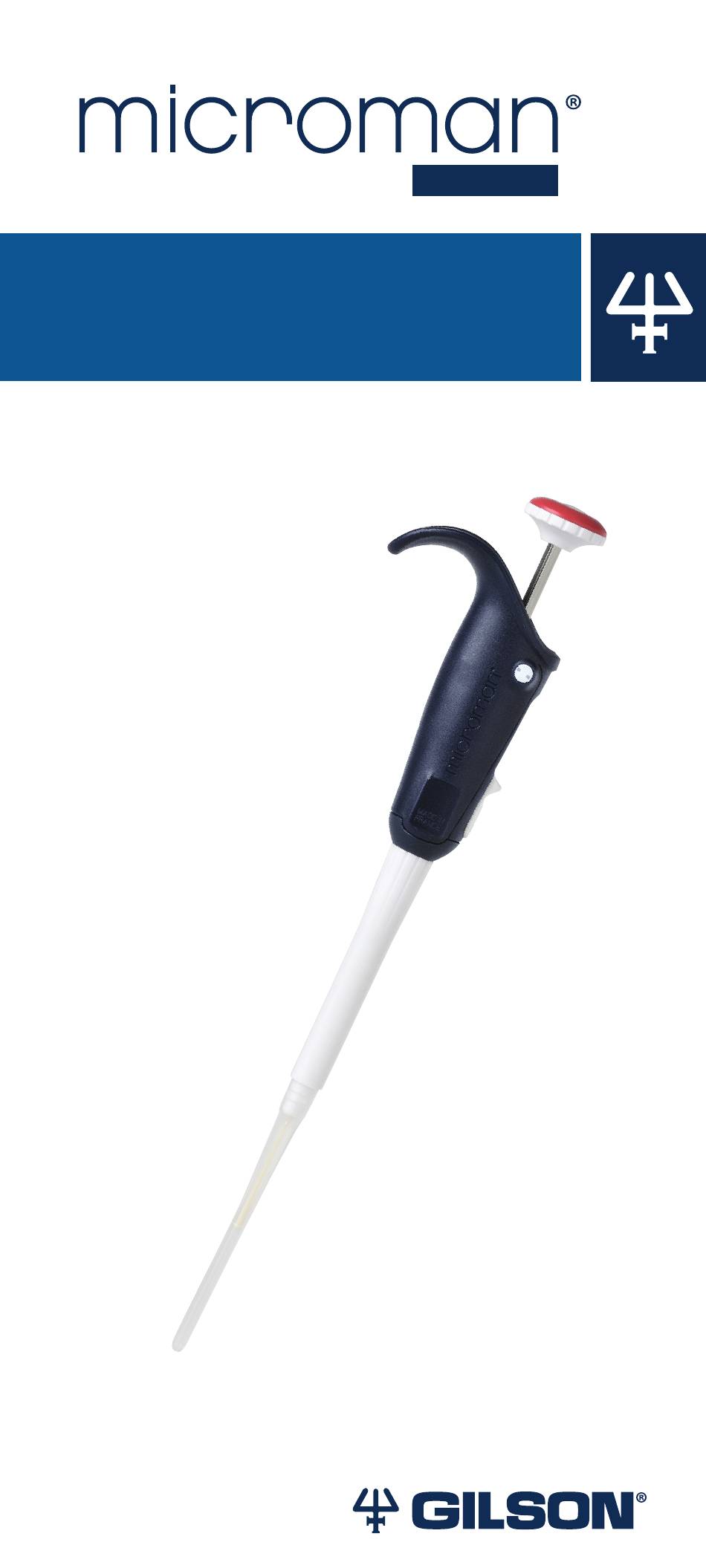

- Page 1 User’s Guide...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION | 2 Parts Checklist | 3 Good Laboratory Practice (GLP) Features | 3 Description | 4 Operating Ranges and Material | 5 Specifications | 6 FITTING THE CAPILLARY PISTON | 8 PIPETTING | 10 Setting the Volume | 10 Aspirating | 11 Dispensing | 11 Ejecting the Capillary Piston | 12... -
Page 3: Introduction
MICROMAN E is suitable for many different applications, including pipetting volatile, viscous, dense, or high surface tension liquids. It is a quality product from Gilson, which is fully compliant with ISO 8655 standards. The six models available allow for precise and accurate pipetting of viscous, dense, and volatile liquids. -
Page 4: Parts Checklist
ID Tag (Application or User). ● Color-coded push button indicating the volume range. ● Data matrix engraved on pipette body. ● Gilson certificate of Figure 1 conformity according Data Matrix and to ISO 8655. Serial Number Location INTRODUCTION MICROMAN E®... -
Page 5: Description
Description Color-coded push button indicating the volume range for aspirating and dispensing. Body or handle Capillary Piston Shaft Thumbwheel for setting the volume Volumeter Volume unlock button Data matrix code Figure 2 MICROMAN® E MICROMAN E® USER’S GUIDE... -
Page 6: Operating Ranges And Material
Operating Ranges and Material Available Models MODEL VOLUME RANGE M10E 1 µL to 10 µL M25E 3 µL to 25 µL M50E 20 µL to 50 µL M100E 10 µL to 100 µL M250E 50 µL to 250 µL M1000E 100 µL to 1000 µL Materials MODEL... -
Page 7: Specifications
MICROMAN E is a high quality pipette that offers excellent accuracy and precision. The figures provided in the “ G ilson Maximum Permissible Errors ” table were obtained using Gilson CPs. These figures are only guaranteed when using genuine Gilson CPs. - Page 8 Gilson Maximum Permissible Errors MAXIMUM PERMISSIBLE ERRORS GILSON ISO 8655 MODEL VOLUME (PART SYSTEMATIC RANDOM SYSTEMATIC RANDOM (µL) NUMBER) ERROR ERROR ERROR ERROR (µL) (µL) (µL) (µL) M10E Min. ±0.09 ≤0.03 ±0.2 ≤0.1 (FD10001) ±0.10 ≤0.03 ±0.2 ≤0.1 ≤0.06 ≤0.1 Max.
-
Page 9: Fitting The Capillary Piston
Chapter 2 FITTING ThE CApILLARY pISTON Make sure the capillary piston MODEL (CP) is compatible with the MICROMAN E model that will CP10 M10E be used. CP25 M25E CP25, CP50, and CP250 Bulk CP50 M50E The capillaries and pistons CP100 M100E are delivered in two separate CP250... - Page 10 CP10, CP25, CP50, CP100, CP250, and CP1000 Tipack Capillary pistons (CP) are delivered ready to use. To fit a capillary piston: Press the MICROMAN E onto the capillary piston until it is firmly seated Pick up the CP from the rack Slowly press the push button until you feel and hear...
-
Page 11: Pipetting
Chapter 3 pIpETTING Setting the Volume The volume of liquid to be aspirated is set using the volumeter. The volumeter consists of three number dials, which are read from top (most significant digit) to bottom (least significant digit). A marker is used to set exact or intermediate volumes using the scale on the bottom dial. -
Page 12: Aspirating
For large volume changes, proceed as follows: Slide and hold the volume unlock button to unlock the volumeter. When decreasing the volume setting, approach the required setting, by 1/3 of a turn. When increasing the volume setting, pass the required setting by 1/3 of a turn. -
Page 13: Dispensing
Dispensing Place the end of the capillary against the inside wall of the recipient vessel, Press the push button slowly to the first stop, Keeping the push button depressed, move the capillary away from the sidewall, Withdraw MICROMAN E from the vessel and release the push button. -
Page 14: Troubleshooting
ChApTER 2, FITTING ThE CApILLARY pISTON, pages 8). Imprecision: Replace the capillary piston. Difficult to set the volume: This suggests internal damage to the pipette. Contact your local Gilson representative. If the problem persists... Contact your local Gilson representative. TROUBLESHOOTING MICROMAN E®... -
Page 15: Cleaning And Decontamination
Before returning any pipette, ensure that it is completely free of chemical, biological, or WARNING radioactive contamination. Use the safety bag provided by Gilson. Internal Only the following components should be immersed in a decontaminant solution: clamp assembly, return spring, and capillary holder (shaft). - Page 16 Chemical Decontamination Clean the pipette prior to decontamination. Full details of recommended decontamination procedures for Gilson pipettes are available from your supplier. Whichever decontaminant you use, check with the supplier that the product is compatible with the materials used for the...
- Page 17 Immerse the components in the decontaminant solution or wipe them down according to the instructions provided by the manufacturer or supplier of the decontaminant. Rinse the individual components with distilled or sterilized water. Leave the parts to dry by evaporation or wipe them with a clean lint-free tissue or a soft cloth.
-
Page 18: Warranty
Gilson or its designates. Gilson’s sole liability under this warranty shall be limited to, at Gilson’s sole option, repair or replacement of any defective components of pipettes or refund of the purchase price paid for such pipettes. - Page 19 NOTES MICROMAN E® USER’S GUIDE...
- Page 20 LT801547/E | ©07/2018 Gilson, Inc. All rights reserved.
