Design and function
MMA welding
5.4.1

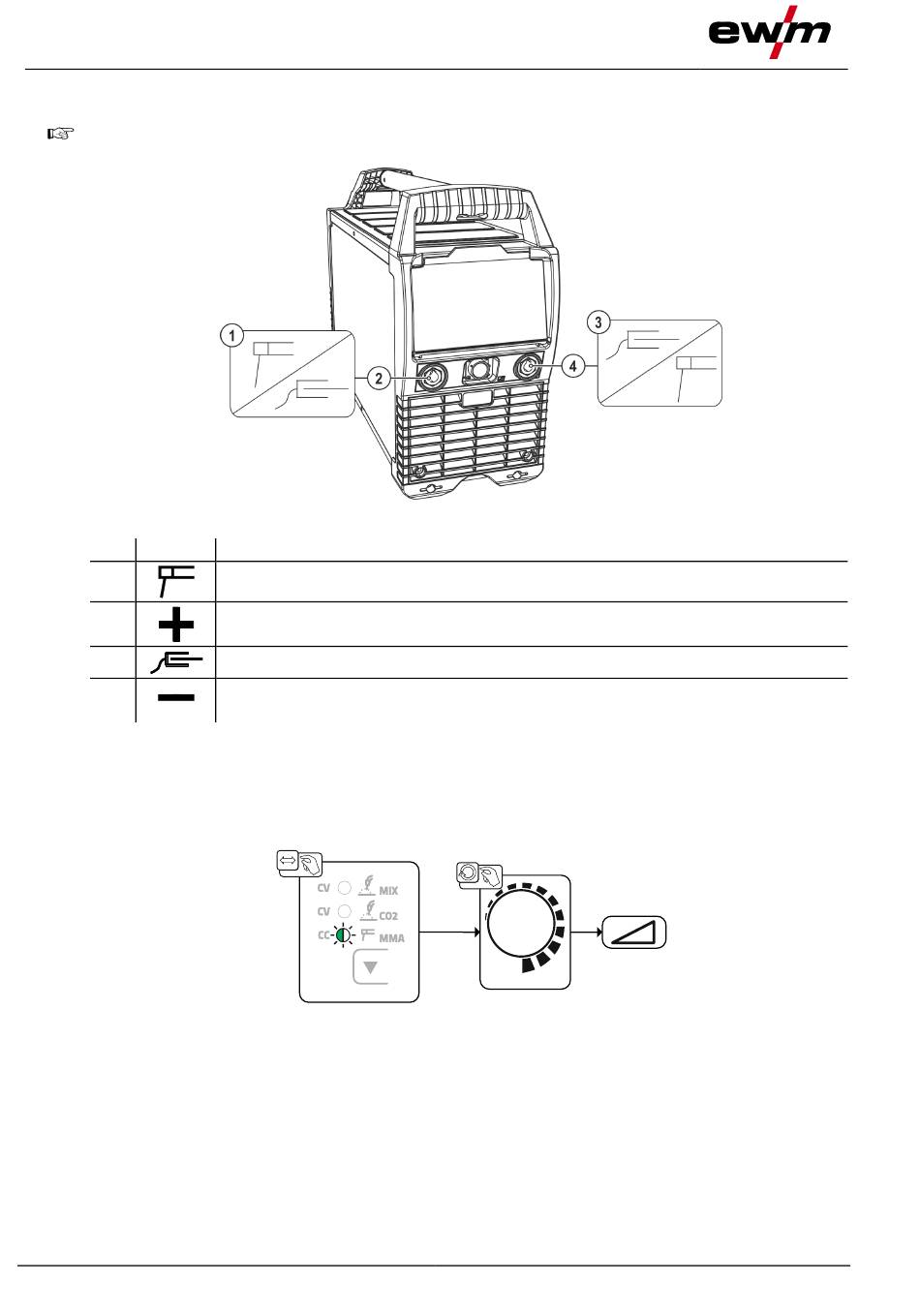

Connecting the electrode holder and workpiece lead

Polarity depends on the instructions from the electrode manufacturer given on the electrode
packaging.
Item Symbol
1
2
3
4
•
Insert cable plug of the electrode holder into either the "+" or "-" welding current connection socket and
lock by turning to the right.
•
Insert cable plug of the workpiece lead into either the "+" or "-" welding current connection socket and
lock by turning to the right.
5.4.2

Welding task selection

30
Description 0
Electrode holder
Connection socket for "+" welding current
Electrode holder or workpiece lead connection
Workpiece
Connection socket, "-" welding current
Workpiece lead or electrode holder connection
Figure 5-15
Figure 5-16
