www.ti.com

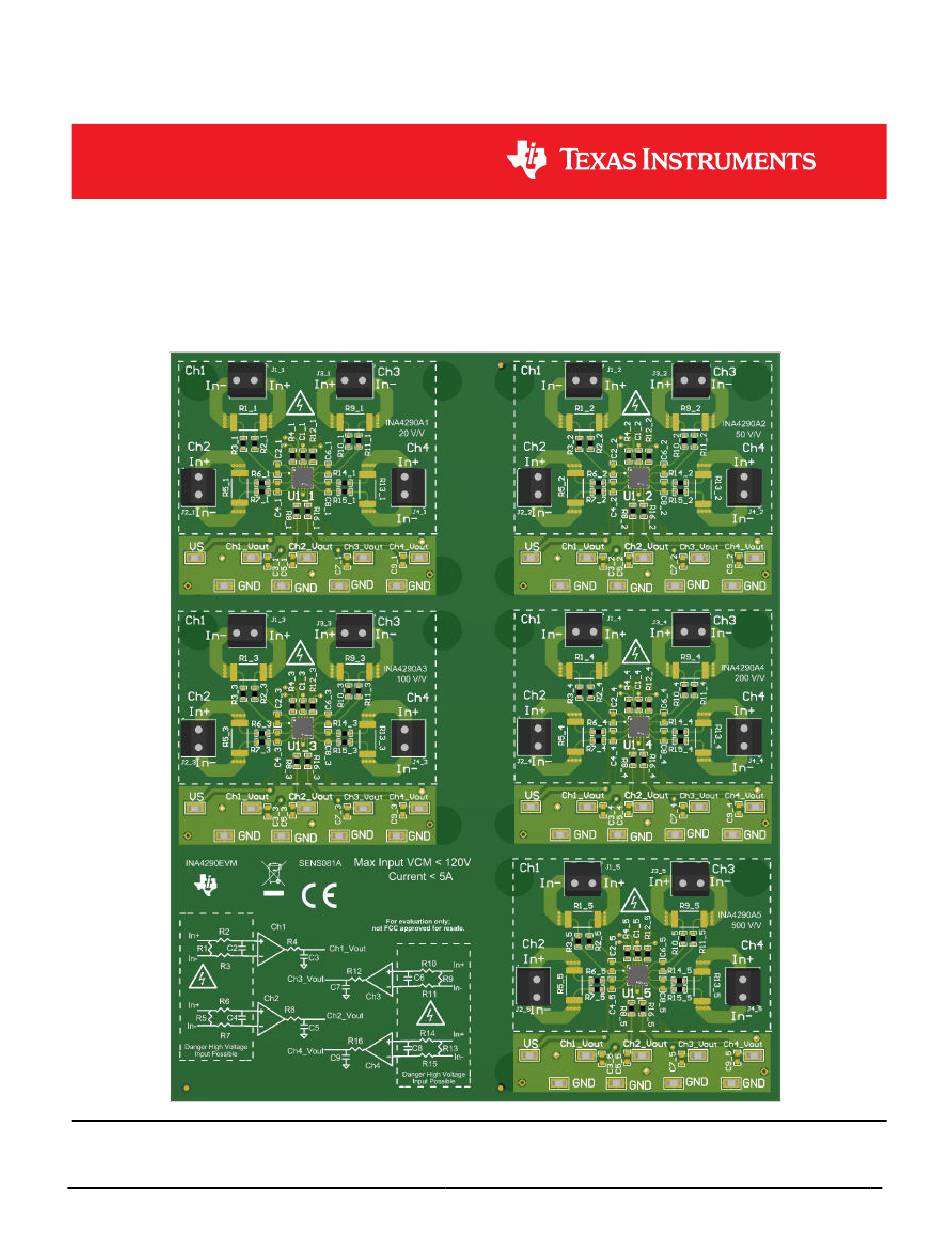

User's Guide
INA4290 Evaluation Module
This user's guide describes the characteristics, operation, and use of the INA4290 evaluation module (EVM).
This EVM is designed to evaluate the performance of the INA4290 voltage-output, current shunt monitor in a
variety of configurations. Throughout this document, the terms evaluation board, evaluation module, and EVM
are synonymous with the INA4290EVM. This document also includes a schematic, reference printed-circuit
board (PCB) layouts, and a complete bill of materials (BOM).
SBOU258 – MARCH 2021
Submit Document Feedback
ABSTRACT
Copyright © 2021 Texas Instruments Incorporated
INA4290 Evaluation Module
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INA4290 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Texas Instruments INA4290

Summary of Contents for Texas Instruments INA4290

  • Page 1 This user’s guide describes the characteristics, operation, and use of the INA4290 evaluation module (EVM). This EVM is designed to evaluate the performance of the INA4290 voltage-output, current shunt monitor in a variety of configurations. Throughout this document, the terms evaluation board, evaluation module, and EVM are synonymous with the INA4290EVM.

  • Page 2: Table Of Contents

    Table of Contents www.ti.com Table of Contents 1 General Texas Instruments High Voltage Evaluation (TI HV EVM) User Safety Guidelines..........Overview....................................4 2.1 EVM Kit Contents................................4 2.2 Related Documentation From Texas Instruments......................3 Hardware....................................3.1 Features..................................... Operation....................................6 4.1 Quick Start Setup................................

  • Page 3: General Texas Instruments High Voltage Evaluation (Ti Hv Evm) User Safety Guidelines

    General Texas Instruments High Voltage Evaluation (TI HV EVM) User Safety Guidelines 1 General Texas Instruments High Voltage Evaluation (TI HV EVM) User Safety Guidelines WARNING Always follow TI’s setup and application instructions, including use of all interface components within their recommended electrical rated voltage and power limits.

  • Page 4: Overview

    Limitation for safe use: EVMs are not to be used as all or part of a production unit. 2 Overview The INA4290 device is a voltage-output, high-side quad-channel current sense amplifier in a QFN (16) package. As shown in INA4290 Gain Option Summary, the INA4290 has gains that range from 20 V/V to 500 V/V, depending on the gain option that is selected.

  • Page 5: Hardware

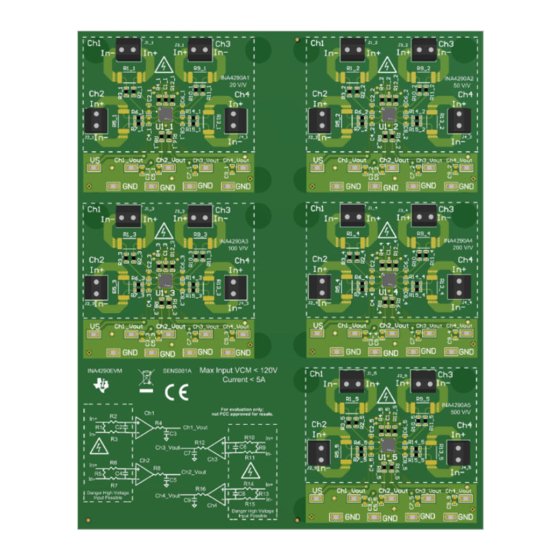

    Hardware 3 Hardware The INA4290EVM provides a basic functional evaluation of the INA4290. The fixture layout is not intended to be a model for the target circuit, nor is it laid out for electromagnetic compatibility (EMC) testing. The INA4290EVM is one PCB with five optional PCB cutouts the engineer can use to test each of the five gain options (1 to 5)

  • Page 6: Operation

    3. Provide a differential input voltage signal to the In+ and In– nodes by connecting the signal leads to the Jx_n pin 1 and Jx_n pin 2 for channel x on the EVM, as explained in Measurements. The INA4290 is a unidirectional current-sensing device because there is no reference pin.

  • Page 7: Evm Components

    Collectively, these pads allow user-defined filters for the input pins (IN+ and IN–) and the output pin (OUT) of the INA4290. If a filter is desired, remove these resistors and replace them with > 0-Ω SMT resistors and populate the capacitor pads with capacitors. Consider the input bias current of the device when using input filtering.

  • Page 8: Schematic, Pcb Layout, And Bill Of Materials

    Figure 6-5 show the schematics for the A pinout of the INA4290EVM PCB for all gain options. Figure 6-1. INA4290EVM Schematic: Gain A1 Panel INA4290 Evaluation Module SBOU258 – MARCH 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...

  • Page 9: Figure 6-2. Ina4290Evm Schematic: Gain A2

    Schematic, PCB Layout, and Bill of Materials Figure 6-2. INA4290EVM Schematic: Gain A2 Panel SBOU258 – MARCH 2021 INA4290 Evaluation Module Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...

  • Page 10: Figure 6-3. Ina4290Evm Schematic: Gain A3

    Schematic, PCB Layout, and Bill of Materials www.ti.com Figure 6-3. INA4290EVM Schematic: Gain A3 Panel INA4290 Evaluation Module SBOU258 – MARCH 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...

  • Page 11: Figure 6-4. Ina4290Evm Schematic: Gain A4 Panel

    Schematic, PCB Layout, and Bill of Materials Figure 6-4. INA4290EVM Schematic: Gain A4 Panel SBOU258 – MARCH 2021 INA4290 Evaluation Module Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...

  • Page 12: Figure 6-5. Ina4290Evm Schematic: Gain A5

    Schematic, PCB Layout, and Bill of Materials www.ti.com Figure 6-5. INA4290EVM Schematic: Gain A5 Panel INA4290 Evaluation Module SBOU258 – MARCH 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...

  • Page 13: Pcb Layout

    PCB layout for the INA4290EVM. Figure 6-6. INA4290EVM Top Overlay Figure 6-7. INA4290EVM Bottom Overlay Figure 6-8. INA4290EVM Top Layer Figure 6-9. INA4290EVM Bottom Layer SBOU258 – MARCH 2021 INA4290 Evaluation Module Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...

  • Page 14: Figure 6-10. Ina4290Evm Top Solder

    Schematic, PCB Layout, and Bill of Materials www.ti.com Figure 6-10. INA4290EVM Top Solder Figure 6-11. INA4290EVM Bottom Solder Figure 6-12. INA4290EVM Drill Drawing INA4290 Evaluation Module SBOU258 – MARCH 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...

  • Page 15: Bill Of Materials

    2.7-V to 120-V, 1100-kHz, 50-V/V, VQFN16 INA4290A2RGV Texas Instruments Ultra-Precise Current-Sense Amplifier, VQFN16 U1_3 2.7-V to 120-V, 900-kHz, 100-V/V, VQFN16 INA4290A3RGV Texas Instruments Ultra-Precise Current-Sense Amplifier, VQFN16 SBOU258 – MARCH 2021 INA4290 Evaluation Module Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 16 R1_1, R1_2, R1_3, R1_4, R1_5, R5_1, R5_2, R5_3, R5_4, 0.01 RES, 0.01, 1%, 3 W, 2512 2512 CRA2512-FZ-R010ELF Bourns R5_5, R9_1, R9_2, R9_3, R9_4, R9_5, R13_1, R13_2, R13_3, R13_4, R13_5 INA4290 Evaluation Module SBOU258 – MARCH 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 17 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
  • Page 18 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
  • Page 19 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
  • Page 20 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
  • Page 21 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2019, Texas Instruments Incorporated...
  • Page 22 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products.IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2021, Texas Instruments Incorporated...
