User’s Manual - English Safety Warnings Read this manual carefully and completely before installing and using the TECNOWARE EVO DSP PLUS Uninterruptible Power Supply, which, from here after, will also be referred to as UPS. This manual should be kept close to the UPS and read before the UPS is installed and used.

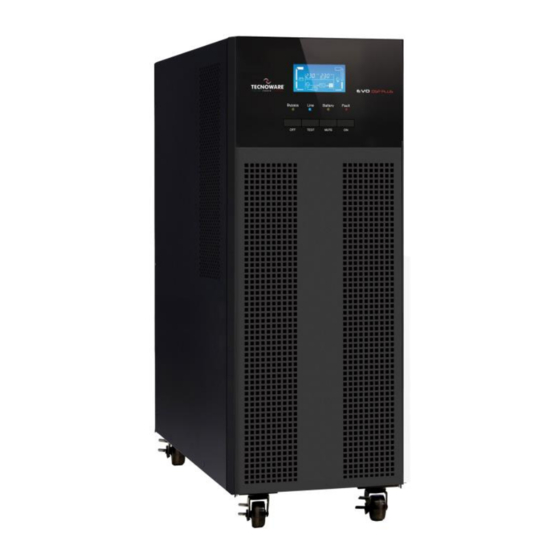

ENGLISH 1 Introduction UPS EVO DSP PLUS (UPS means Uninterruptible Power Supply) is the result of constant technological research aimed at obtaining the best performance at the lowest cost. UPS EVO DSP PLUS is an advanced ON-LINE UPS built specifically to protect your computer from any irregularities in the AC line (for example blackouts, brownouts, over voltages, micro-interruptions) which often cause damage to hardware and software.
ENGLISH 2 General Characteristics UPS EVO DSP PLUS has all the advanced features which guarantee maximum reliability and safety: • Double-Conversion ON-LINE Transformerless technology • Sinusoidal wave generated by an IGBT Inverter • Output Voltage regulation 1% • Protection from overload and short circuits •...
ENGLISH • In all circumstances, see the “Technical Characteristics” chapter for environmental specifications and check that the selected area meets these criteria. • During normal operation the UPS discharges a minimal amount of heat. So it is necessary to leave at least 10 cm of unobstructed space all around the UPS in order to keep it properly ventilated.
ENGLISH 4.1 NORMAL Mode The UPS typically works in Normal mode: Input mains power is available and its amplitude is within specifications. Please refer to figure 1. After the filter has eliminated any high Frequency interference present on the mains, the AC Input line is rectified and conditioned in the Rectifier block (AC/DC conversion);...
Page 10
ENGLISH The Bypass mode is identified by: • Bypass led is ON. • The graphic LCD panel shows the path of energy flow during Bypass mode. • An acoustic signal every 2 minutes. During Bypass mode, loads are fed directly from AC Input line. Therefore no protection against AC Input line disturbances or interruptions is present.
ENGLISH 5 EXTERNAL DESCRIPTION 5.1 Front Panel The front panel informs the user about operating status, alarm conditions and measurements. It also provides access to controls and configuration parameters. Front panel shown below consists of three parts: Graphic LCD panel provides complete information about the energy flow path and existing alarms, Load and Battery level, Input, Output and Battery measurements.
ENGLISH 5.1.1 Graphic LCD Panel Please refer to figure 3. Backup Time Output Input & Battery Fault Info Buzzer Info Info Voltage Info Voltage Info Battery Load Info Info Mode Operation Info Figure 3 – Graphic LCD Panel Graphic LCD Panel Function Backup time information Indicates how much time has passed in Battery mode.
Page 13
ENGLISH Indicates the Output Voltage or Frequency. Vac: Output Voltage, Hz: Output Frequency UPS EVO DSP PLUS 6.5 User’s manual...
Page 14
ENGLISH Graphic LCD Panel Function Load information Indicates the load level by 0-25%, 26-50%, 51-75%, and 76-100%. Indicates Overload. Indicates the load or the Output is short-circuited Mode operation information Indicates the UPS connects to the mains. Indicates the Battery is working. Indicates the Bypass circuit is working.
ENGLISH 5.1.2 Buttons Functions of the buttons are given below: Button Function Turn ON: press and hold the button more than 0.5 sec to turn the UPS ON. Turn OFF: press and hold the button more than 0.5 sec to turn the UPS OFF. Battery Test: press and hold the button more than 0.5 sec to test the Battery while in Normal TEST mode.
ENGLISH 5.1.4 Acoustic Alarm Description Buzzer Status UPS status Bypass Mode Beeping once every 2 minutes Battery Mode Beeping once every 4 seconds Fault Mode Beeping continuously Warning Overload Beeping twice every second Low Battery Battery Unconnected Over Charge EPO condition Beeping once every second Fan failure/Over Temperature Charger failure...
ENGLISH 5.2 Rear Side Figure 4 – Rear side Computer Interface (RJ45 connector): it is the counication RS-232 port. Computer Interface (USB connector): it is the counication USB port. EPO (Emergency Power OFF) connector SNMP Interface slot: the SNMP Interface is optional in place of RS232-USB port . Input circuit breaker Metallic panel for access to the Input/Output terminals: upon removal, it is possible to access the Input/Output terminals (see figure 5).
ENGLISH 5.2.1 Input/Output Terminals Output Line Input Neutral Ground Output Neutral Input Line Figure 5 – Input/Output Terminals INPUT terminals: to connect AC Input line. OUTPUT terminals: to connect OUTPUT line. GROUND: GROUND screws to connect INPUT and OUTPUT GROUND cables 5.2.2 EPO (Emergency Power Off) EVO DSP PLUS models have the EPO (Emergency Power OFF) connector on the rear side, (see figure 6).
ENGLISH 6 Electrical Installation The electrical installation has to be done by qualified personnel. Follow all the Safety Standards (CEI Standards in Italy or IEEE elsewhere) for the Input/Output connections and for the right selection of Input/Output cables. We recoend to use dedicate AC Input/Output power lines for the UPS. For safety we recoend using external circuit breakers between Input mains and UPS AC Input line and between UPS Output lines and the loads.
Page 20
There are no internal parts in the UPS which are user serviceable. Any repair or maintenance work must be performed exclusively by qualified technical personnel authorized by TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. Disregard for these warnings may lead to a risk of electric shock to operators.
ENGLISH 7 First Start Up Turning the UPS ON is very easy. Nevertheless we recoend that, on First Start Up, the following procedure is observed for greater safety. Check if the Input circuit breaker the rear side is in “OFF” position (see figure 4). Check that no load is connected to the UPS Outputs.
ENGLISH If UPS is used daily, it is recoended to leave the Input circuit breaker always “ON” and use the ON and OFF buttons on the front panel to activate/deactivate the Inverter. If the UPS has to be turn OFF for several days, it is recoended to turn “OFF” the Input circuit breaker. If the ON button is pressed when AC Input is not present, the UPS switches ON even, and works in Battery mode after about 4 seconds.
ENGLISH 8.4 Battery Test If you need to check the Battery Status when the UPS is running in Normal mode, you could press the TEST button to let the UPS do the Battery Test. The Battery Test starts iediately and it finishes after some seconds. If the batteries pass the test, no alarm will be shown.
ENGLISH 8.6 Operation in Fault Mode When Fault led illuminates and the buzzer beeps continuously, it means that there is a fatal error in the UPS. Users can get the Fault code from display panel. Please check the “Troubleshooting” chapter for details. Please check the loads, wiring, ventilation, mains supply, Battery and so on after the fault occurs.
Page 25
The RS-232 and USB signals are all isolated through photo-couplers from the dangerous voltages that are present inside the UPS. Connecting to the Web site www.tecnoware.com, it is possible to download, free of charge, the update UPS management Software, compatible with the most popular Operative Systems.
ENGLISH 10 Technical Characteristics UPS EVO DSP PLUS Model Power 6500 VA Nominal Active Power 5850 W Power Factor On-Line Double Conversion Transformerless Technology 19 x 57,3 x 36,9 cm Dimension (W x H x D) 46 kg Net Weight INPUT Nominal Voltage Single Phase 208/220/230/240 Vac...
CEI EN 62040-2 category C3 Product certification COUNICATIONS Computer Interface 1 RS232 port and 1 USB port Software Included software free downloadable from www.tecnoware.com SNMP Interface Optional (in place of RS232-USB board) OTHERS EPO (Emergency Power OFF) Included Technical data may change without prior notice 11 Maintenance 11.1 UPS Cleaning...
Performing Battery Test can provide you with information about Battery condition (see “Battery Test” section for more information on Battery Test). Battery replacement must be performed exclusively by qualified technical personnel authorized by TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. When replacing batteries, replace with the same type and number.
TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. Warning to the technical personnel authorized for service: since internal components are connected to the batteries, they will remain powered, and therefore dangerous, even after the UPS has been disconnected from AC power mains.
Page 30
UPS temperature is too high. Technical Service. second. If the described anomalies should continue despite the advised troubleshooting, or should they manifest in any other form, please contact: TECNOWARE SERVICE www.tecnoware.com User’s manual UPS EVO DSP PLUS 6.5...
ENGLISH Conformity to the European Directives TECNOWARE S.r.l. confirms that EVO DSP PLUS models comply with the requirements set out in: the Low Voltage Directive (Safety) 2014/35/EU and following amendments, the EMC (Electro-Magnetic Compatibility) Directive 2014/30/EU and following amendments. The following standards were applied:...
Avvisi di Sicurezza Leggere attentamente e completamente questo manuale prima di installare ed utilizzare il gruppo di continuità TECNOWARE della serie EVO DSP PLUS , che in seguito verrà chiamato anche semplicemente UPS. Conservare con cura questo manuale vicino all’UPS e consultarlo sempre prima di operare sullo stesso.
ITALIANO 1 Introduzione UPS EVO DSP PLUS (UPS significa Uninterruptible Power Supply) è il risultato di una costante ricerca tecnologica mirata all'ottenimento delle migliori prestazioni a costi estremamente contenuti. UPS EVO DSP PLUS è un gruppo di continuità monofase ad onda sinusoidale progettato per alimentare e proteggere le più...
ITALIANO 2 Caratteristiche Generali UPS EVO presenta tutte le moderne caratteristiche che garantiscono massima affidabilità e sicurezza: • Tecnologia ON-LINE doppia conversione senza trasformatore • Onda sinusoidale generata tramite Inverter ad IGBT • Stabilizzazione in Uscita ± 1% • Protezione dal sovraccarico e dal cortocircuito •...
ITALIANO • Consultare comunque il capitolo “Caratteristiche Tecniche” per i requisiti ambientali e controllare che il luogo scelto rientri in tali specifiche. • Durante il normale funzionamento l’UPS emette una quantità minima di calore. È perciò necessario lasciare uno spazio libero di almeno 10 cm sia lateralmente che sul retro dell’UPS per permetterne una sufficiente areazione.
ITALIANO 4.1 Modo NORMALE È il modo tipico di funzionamento. In questo caso la Tensione di Rete elettrica è presente in Ingresso ed ha ampiezza all'interno delle specifiche. Fare riferimento alla figura 1. La Tensione d’Ingresso, dopo che il filtro ha eliminato eventuali disturbi in alta frequenza presenti sulla Rete elettrica, viene raddrizzata e condizionata nel blocco Raddrizzatore (conversione CA/CC);...
Page 37
ITALIANO Il modo Bypass è caratterizzato da: • Il led Bypass è ON. • Il display grafico LCD mostra il percorso del flusso di energia durante il modo Bypass. • Emissione di un breve segnale acustico ogni 2 minuti. In modo Bypass, i carichi sono alimentati direttamente dalla linea elettrica d’Ingresso tramite il Bypass.
ITALIANO 5 Descrizione Esterna 5.1 Pannello Frontale Il pannello frontale informa l’utente sullo stato di funzionamento, sulle condizioni di allarme e sulle misure. Inoltre consente di controllare e configurare i parametri di funzionamento. Il pannello frontale, mostrato nella figura 2, è costituito da 3 parti: Un pannello LCD grafico che fornisce le informazioni complete sul percorso del flusso energia per i vari modi di funzionamento, sugli allarmi esistenti, sul carico in Uscita, sulle batterie, e sulle misure delle grandezze elettriche della linea d’Ingresso, d’Uscita e delle batterie.
ITALIANO 5.1.1 Pannello LCD Grafico Prego riferirsi alla figura 3. Info Allarme Info Info Tensione Info Acustico Info Fault Tempo Backup d’Ingresso e di Batteria Tensione d’Uscita Voltage Info Info Info Batteria Load Info Modo di Funzionamento Figura 3 – Pannello LCD grafico Pannello LCD Grafico Funzione Informazioni del Tempo di Backup...
Page 40
ITALIANO Indica l’Ampiezza e la Frequenza della Tensione d’Uscita. Vac: Ampiezza della Tensione d’Uscita - Hz: Frequenza d’Uscita Manuale utente UPS EVO DSP PLUS...
Page 41
ITALIANO Pannello LCD Grafico Funzione Informazioni del Carico (Load) Indica che il livello del carico è compreso tra 0-25%, 26-50%, 51-75% e 76-100%. Indica la condizione di Sovraccarico (Overload). Indica la condizione di corto-circuito della linea d’Uscita. Informazione del Modo di Funzionamento Indica che l’UPS è...
ITALIANO 5.1.2 Pulsanti Le funzioni dei pulsanti presenti sul pannello frontale sono riportate sotto: Pulsante Funzione Attivazione (ON) dell’UPS: per attivare l’UPS premere e mantenere premuto il pulsante per più di 0.5 secondi. Disattivazione (OFF) dell’UPS: per disattivare l’UPS premere e mantenere premuto il pulsante per più...
ITALIANO 5.1.4 Allarme Acustico Descrizione Allarme acustico Stato UPS Modo Bypass Allarme acustico ogni 2 minuti Modo Batteria Allarme acustico ogni 4 secondi Condizioni di Guasto (Fault) Allarme acustico continuo Allarme Overload Allarme acustico 2 volte ogni secondo Low Battery (Fine Autonomia) Batteria Scollegata Tensione Carica Batteria elevata EPO attivo...
ITALIANO 5.2 Pannello Posteriore Figura 4 – Pannello Posteriore Interfaccia di Comunicazione (connettore RJ45): è la porta di comunicazione RS232. Interfaccia di Comunicazione (connettore USB): è la porta di comunicazione USB. Connettore EPO (Emergency Power OFF) Slot per Interfaccia: l’interfaccia SNMP è opzionale in sostituzione della scheda RS232-USB. Interruttore d’Ingresso Rete Elettrica Pannello metallico di accesso alla morsettiera d’Ingresso/Uscita: rimuovendolo si accede alla morsettiera per i collegamenti di potenza (vedi figura 5).
ITALIANO 5.2.1 Morsettiera d’Ingresso/Uscita Output Line Input Neutral Ground Output Neutral Input Line Figura 5 – Morsettiera d’Ingresso/Uscita Terminali INPUT: per collegare la Rete Elettrica d’Ingresso. Terminali OUTPUT: per collegare la linea d’Uscita OUTPUT. GROUND: viti di GROUND (TERRA) a cui collegare i cavi GROUND della Rete Elettrica d’Ingresso e delle linee d’Uscita.
ITALIANO 6 Installazione Elettrica L'installazione elettrica, nonostante semplicità, deve essere eseguita esclusivamente da elettricisti qualificati. Seguire scrupolosamente tutte le norme locali e nazionali (in ITALIA le norme CEI) per le connessioni d'Ingresso e d’Uscita e per il corretto dimensionamento dei cavi d'Ingresso e d’Uscita. Destinare all'UPS linee elettriche di potenza d’Ingresso e d’Uscita dedicate.
Page 47
L’UPS non ha parti interne soggette a manutenzione da parte dell’utente. Interventi tecnici di qualsiasi tipo devono essere compiuti solo da personale tecnico specializzato ed autorizzato da TECNOWARE. In caso contrario TECNOWARE declina ogni sua responsabilità. Non rispettare queste precauzioni espone l'operatore al pericolo di shock elettrici.
ITALIANO 7 Prima Accensione La procedura di prima accensione è molto semplice. Si consiglia di seguire con attenzione i punti successivi per una maggiore sicurezza. Controllare che l'interruttore Ingresso Rete sul retro sia in posizione “OFF” (vedere figura 4). Controllare che nessun carico sia collegato alle Uscite dell'UPS. Controllare che l’ampiezza della Tensione di Rete elettrica in Ingresso sia all’interno delle specifiche.
ITALIANO Se si utilizza quotidianamente l’UPS, si consiglia di lasciare sempre l'interruttore Ingresso Rete in posizione “ON” e utilizzare i pulsanti ON ed OFF del pannello frontale per attivare e disattivare l’Inverter. Se invece si prevede di tenere disattivo l’UPS per alcuni giorni allora si consiglia di posizionare l'interruttore Ingresso Rete in posizione “OFF”...
ITALIANO 8.4 Test Batteria Per controllare lo stato delle batterie è possibile svolgere un Test Batteria durante il funzionamento in modo Normale. Per svolgere il Test Batteria è sufficiente premere il pulsante TEST del pannello frontale: il test si avvia iediatamente e si conclude dopo alcuni secondi.
I segnali delle Interfacce RS-232 e USB sono tutti isolati tramite foto-accoppiatori dalle tensioni pericolose presenti all’interno dell’UPS. Collegandosi al sito internet www.tecnoware.com è possibile scaricare gratuitamente la versione aggiornata del software di gestione dell’UPS, compatibile con i più diffusi Sistemi Operativi.
ITALIANO 10 Caratteristiche Tecniche Modello UPS EVO DSP PLUS Potenza 6500 VA Potenza Attiva Nominale 5850 W Fattore di Potenza On-Line Doppia Conversione senza Trasformatore Tecnologia 19 x 57,3 x 36,9 cm Dimensioni (L x H x P) 46 kg Peso Netto INGRESSO Tensione Nominale...
Certificazione del Prodotto INTERFACCE DI COMUNICAZIONE Interfaccia Computer 1 porta RS232 e 1 porta USB Software di Comunicazione Di serie software scaricabile gratuitamente da www.tecnoware.com Interfaccia SNMP Opzionale (in sostituzione della scheda RS232-USB ALTRE SPECIFICHE EPO (Emergency Power OFF) Incluso...
(vedi il capitolo “Test Batteria” per maggiori informazioni). La sostituzione delle batterie deve essere fatta solo da personale tecnico specializzato ed autorizzato da TECNOWARE. In caso contrario TECNOWARE declina ogni sua responsabilità. La sostituzione delle batterie deve avvenire con lo stesso numero e tipo di batterie.
TECNOWARE. In caso contrario TECNOWARE declina ogni sua responsabilità. Avviso per il personale tecnico autorizzato alla manutenzione: anche dopo aver spento l’UPS e scollegato dalla rete elettrica, le parti interne sono ancora in tensione, essendo collegate alle batterie, e quindi pericolose.
Page 56
Servizio Assistenza. interna dell’UPS è troppo alta. acustico suona 1 volta ogni secondo. Se le anomalie descritte permanessero nonostante gli interventi consigliati, o si manifestassero problemi di altra natura, contattare: TECNOWARE SERVICE www.tecnoware.com Manuale utente UPS EVO DSP PLUS...
ITALIANO Conformità alle Direttive Europee TECNOWARE S.r.l. dichiara che il prodotto EVO DSP PLUS è conforme ai requisiti stabiliti nella Direttiva Bassa Tensione (Sicurezza) 2014/35/UE e successive modifiche, e nella Direttiva EMC (Compatibilità Elettromagnetica) 2014/30/UE e successive modifiche. Sono state applicate le seguenti Normative: Direttiva Bassa Tensione (Sicurezza): CEI EN 62040-1 Direttiva EMC (Compatibilità...
