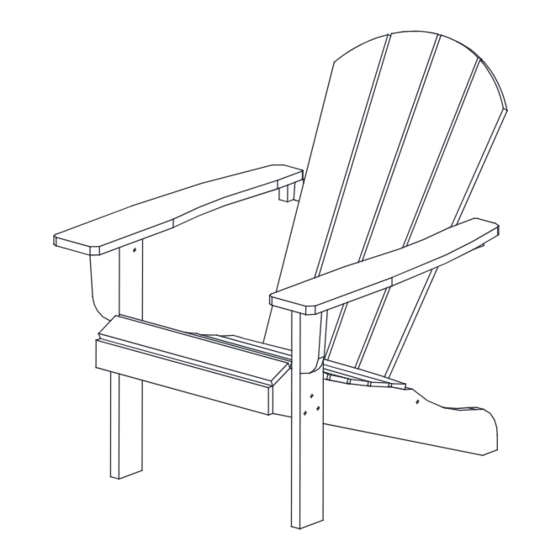

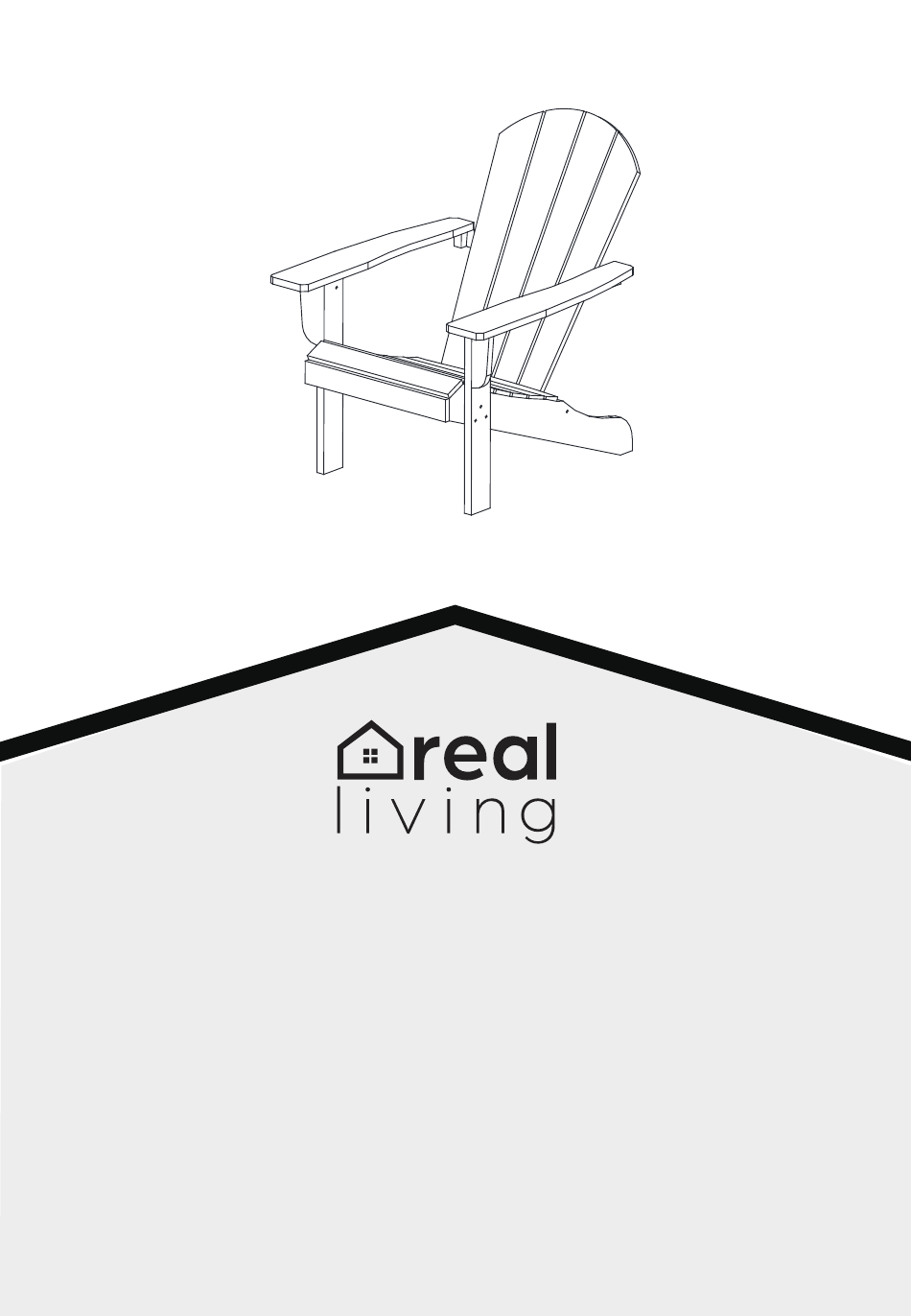

- Page 1 FAUX WOOD ADIRONDACK CHAIR ASSEMBLY INSTRUCTION ITEM#: H22WK0102 SKU# 810581099 Need help? We are here for you! 1(877)800 – 6021 Toll Free • service@hcipatio.com • Email Address...
- Page 2 GENERAL BEST PRACTICES FOR ASSEMBLY: Read all instructions before starting Clear a flat covered space to begin assembly Always best to do it with a friend Note that hardware required is provided for every step Pay attention to orientation Letter of the part corresponds to a sticker on the product Number of the hardware corresponds to its letter in the package Helpful hints provided along the way Retain these assembly instructions for future reference...
- Page 3 PARTS LIST PART PART MATERIAL CODE PART Q’TY MATERIAL CODE PART Q’TY HKWW629E-BB LS-M6-40 BACK ASSEMBLY BOLT M6*40 LS-M6-45 HKWW629E-ZB SEAT ASSEMBLY BOLT M6*45 HKWW629E-ZJG LS-M6-55 LEFT LEG BOLT M6*55 HKWW629E-YJG RIGHT LEG BOLT M6*60 HKWW629E-ZSB DP-d6.5-D13 LEFT ARM WASHER d6.5*D13*1.0 HKWW629E-YSB LM-M6 RIGHT ARM...
- Page 4 STEP 2 PARTS REQUIRED: 3, 4, 5, 6, 10, 11, & 12 Keep the bolts loose. 11 12 Note: The labels marked “L” and “R” on the arms (#5 and #6) should coincide with Step 2 to ensure proper assembly. STEP 3 PARTS REQUIRED: 1, 2, 5, 6, 7, &...
- Page 5 STEP 4 Warranty • One–year limited warranty. • Proof of purchase (dated register receipt) is required for warranty claims. • It remains the customer’s responsibility for freight and packing charges to and from the service center. STOP! Missing A Part? No Need To Go Back To The Store The store where you made your purchase does not stock parts for this item.
