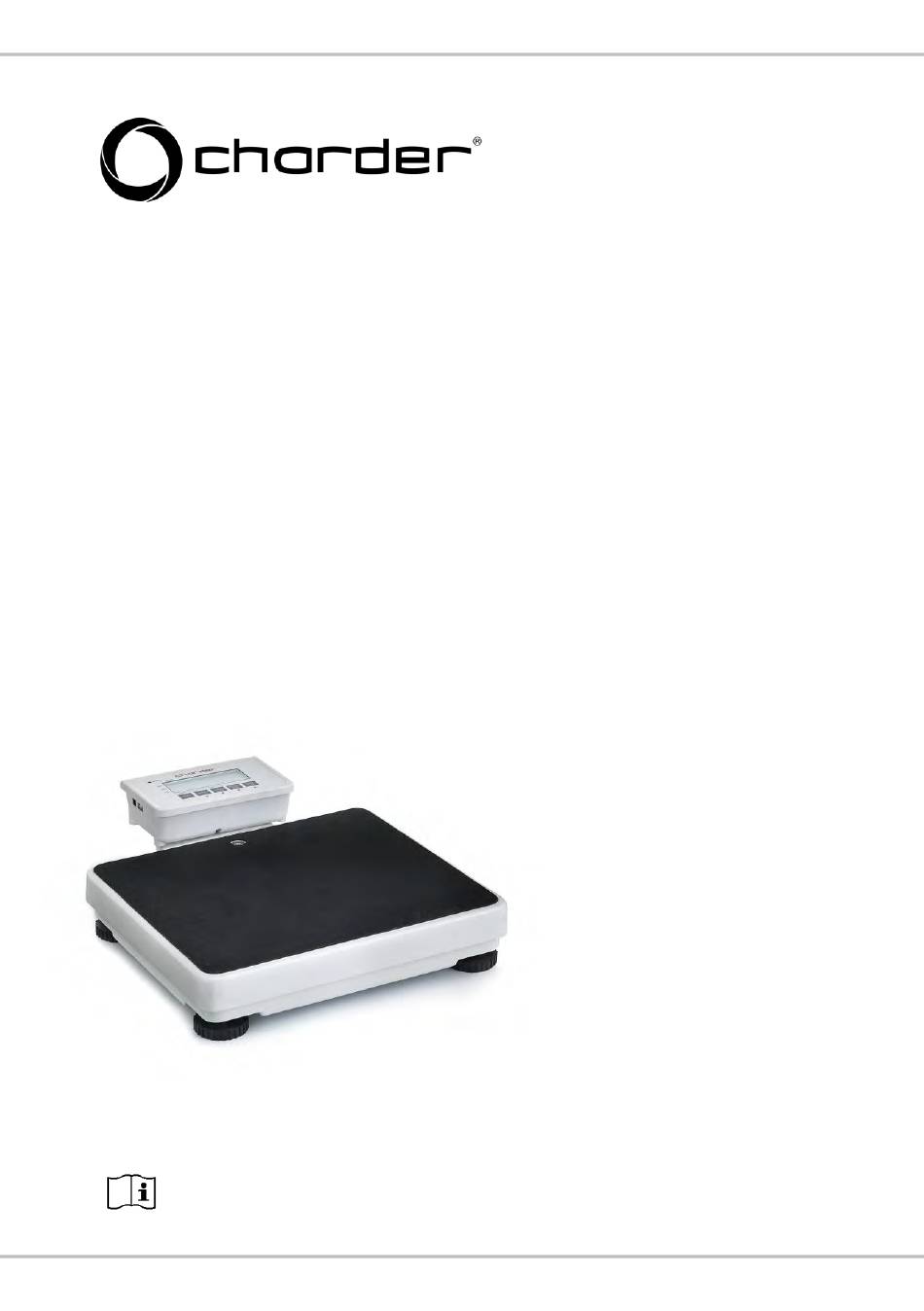

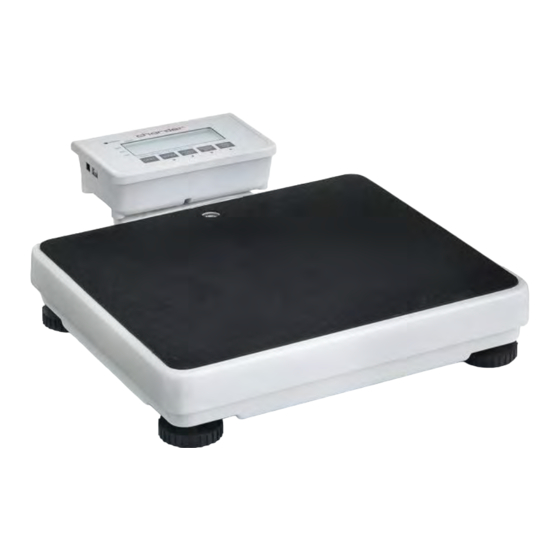

- Page 1 USER MANUAL MS5750/ MS5751 Stand-on Floor Scale Please keep the instruction manual at hand all the time for future reference.
- Page 2 Explanation of Graphic Symbols on Label/Packaging Caution, consult Separate collection for accompanying documents waste of electrical and before use electronic equipment, in accordance with Directive 2002/96/EC Manufacturer of medical Manufacturing year of device medical device Carefully read user manual Medical electrical before installation and equipment with Type B usage, and follow...
- Page 3 Copyright© Charder Electronic Co., Ltd. All rights reserved. This user manual is protected by international copyright law. All content is licensed, and usage is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual.
-
Page 4: Table Of Contents
CONTENTS I. Safety Notes ................5 A. General Information ............5 B. EMC Guidance and Manufacturer's Declaration ......8 II. Installation ................12 A. Assembly ................12 B. Inserting Batteries .............12 C. Using Adapter ..............13 III. Indicator ................14 A. Indicator and Key Functions ..........14 B. -
Page 5: Safety Notes
I. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner. - Page 6 All maintenance, technical inspections, and repairs should be conducted by an authorized Charder service partner, using original Charder accessories and spare parts. Charder is not liable for any damages arising from improper maintenance or usage. Disposal This product is not to be treated as regular household waste, but ...
- Page 7 Do not under any circumstances dismantle or alter the device, as this could result in electric shock or injury as well as adversely affect the precision of measurements. Do not place the device in direct sunlight, or in close proximity to an intense heat source.
-
Page 8: Emc Guidance And Manufacturer's Declaration
B. EMC Guidance and Manufacturer's Declaration Guidance and manufacturer’s declaration-electromagnetic emissions The MS5750/MS5751 Stand-on Floor Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. - Page 9 Guidance and manufacturer’s declaration-electromagnetic immunity The MS5750/MS5751 Stand-on Floor Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. IEC 60601...
- Page 10 Guidance and manufacturer’s declaration-electromagnetic immunity The MS5750/MS5751 Stand-on Floor Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that is used in such an environment. IEC 60601 test...
- Page 11 Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. Recommended separation distance between portable and mobile RF communications equipment and the MS5750/MS5751 Stand-on Floor Scale The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.
-
Page 12: Installation
II. Installation A. Assembly Device does not require installation, and can be used once power is supplied. B. Inserting Batteries 1. Open battery housing cover 2. Take out battery housing 3. Place batteries in compartment (ensure polarity is correct) 4. Insert battery housing 5. -
Page 13: Using Adapter
C. Using Adapter 1. Connect adapter to indicator before connecting to mains power supply 2. Disconnect adapter from mains power supply before unplugging adapter pin from indicator. AC Connector Port... -
Page 14: Indicator
III. Indicator A. Indicator and Key Functions Key Function (UNIT): Switch between units. (MS5750 only, inactive on OIML-approved MS5751) (Send Data): When printer is connected to the indicator, press this key to send results. (On/Off/Zero): Power button. Press and hold to turn off. -
Page 15: Display Layout
B. Display layout BSA: Body Surface Area is being displayed BMI: Body Mass Index is being displayed NET: Net weight appears after tare is activated HOLD: Weight lock function is in use Stable Negative Zero Battery Stable symbol: Indicates that weight is stable. Negative symbol: Weight under zero. -
Page 16: Using Device
IV. Using Device Unit Send On/Off/Zero Hold/BMI Tare/BSA A. Basic Operation Switch on the device using key. (To turn off device, press and hold key for 3 seconds) The device will automatically perform self-calibration, displaying software version. Once "0.00 kg" appears on indicator, device is ready for measurement. Note: If "0.00 kg"... -
Page 17: Tare
device. However, if subject finds it difficult to stand still, we recommend activating Hold after subject stands on device. Hold function will not function under 2 kg. C. Tare The tare function allows the user to deduct the weight of objects from the device's measurement result. -
Page 18: Print
indicator. Press key to return to BMI mode. Press key to return to normal weighing mode. weight Height F. Print If thermal printer is connected to indicator, results can be printed by pressing key. -
Page 19: Device Setup
V. Device Setup When the device is switched on, press and hold the key for 6 seconds, until the display shows the "SETUP”, followed by "AOFF” (first option in setting menu). In device setup menu: to toggle next menu option to toggle previous menu option to confirm selection Auto Power-Off: Instruct device to shut off automatically after a certain... - Page 20 Bluetooth (optional): If device has Bluetooth module installed, Bluetooth function can be turned on or off. Press [HOLD] to toggle between on/off, and [TARE] to confirm selection. Wi-Fi (optional): If device has Wi-Fi module installed, Wi-Fi function can be turned on or off. Press [HOLD] to toggle between on/off, and [TARE] to confirm selection.
-
Page 21: Setup Usb Connection To Pc
USB 2.0 or above. Operators should select a USB cable length that is most suitable to the operating environment. 1. Charder Smart Data Manager can be used to connect the device to a PC. The software program can be downloaded from the Charder website: [LINK URL] https://www.chardermedical.com/download.htm... - Page 22 Conducting Measurement 1. Input subject's first name, last name, patient ID, date of birth (DD/MM/YYYY), gender, and height (for BMI calculation) into software if needed. Press [Clear] to clear all input. NOTE: information can also be input after weight measurement. 2.
- Page 23 Saving & Printing Results 1. Press [Save as] to save measurement results as .csv file on PC. Default file name is same as user ID. (ex: 20190201.csv) To track changes and multiple measurements for the same subject, we recommend not changing the default file name. 2.
-
Page 24: Wireless Connection
NOTE: Body Surface Area (BSA) data cannot be transferred to PC. BSA results should be read from device indicator. VII. Wireless Connection If the device has the wireless module installed, the indicator can transmit measurement results wirelessly. Please see Charder wireless software instructions for details. -
Page 25: Troubleshooting
VIII. Troubleshooting Before contacting your local Charder distributor for repair service, we recommend considering the following troubleshooting procedures: Self-inspection 1. Device will not power on If battery power is depleted, replace with new batteries If batteries are not used, check if the power adapter is plugged into ... - Page 26 2. Indicator damage Possible hardware defects include: uneven brightness in LCD screen, blurred text, smeared rainbow screen, incorrect decimal display Unable to save or read data Indicator shows "ERRL" after device is switched on Keys not responding ...
-
Page 27: Product Specifications
IX. Product Specifications Model MS5750/MS5751 Display DP4400 Capacity 300 kg x 0.1 kg Accuracy ± 1.5e Weight Measurement OIML Class III (MS5751 only) LCD Screen 1.4-inch LCD screen (5 digits) Overall 360(W) x 430(D) x 110(H) mm Dimensions (Standard) Platform... -
Page 28: Declaration Of Conformity
Non-automatic Weighing Instruments Directive (MS5751 only) Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 41262 Taiwan (R.O.C.) CD-IN-00017 REV 005 04/2021...
