Page 1

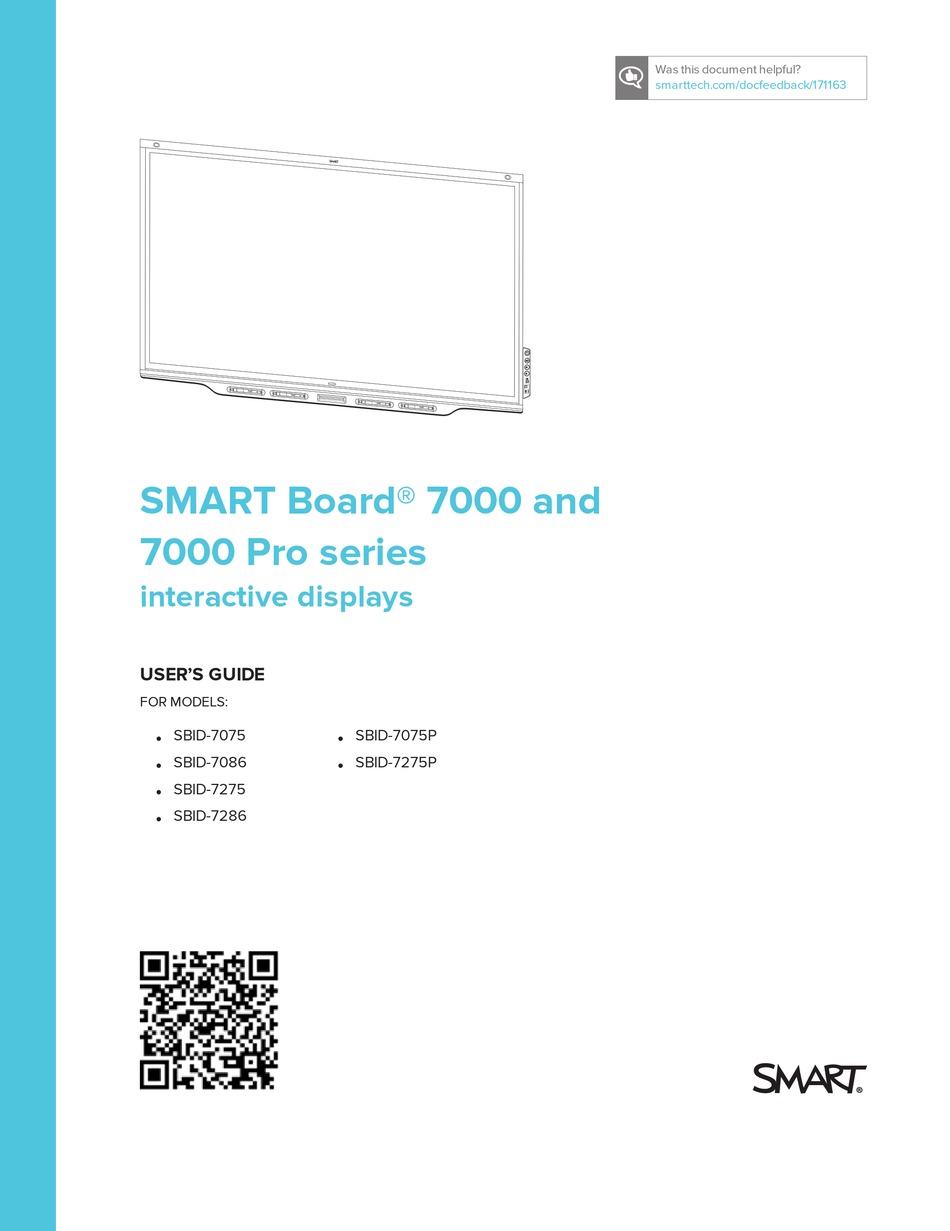

Was this document helpful? smarttech.com/docfeedback/171163 SMART Board® 7000 and 7000 Pro series interactive displays USER’S GUIDE FOR MODELS: SBID-7075 SBID-7075P SBID-7086 SBID-7275P SBID-7275 SBID-7286...
Page 2
Licenses The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. The Bluetooth word mark is owned by the Bluetooth SIG, Inc. and any use of such marks by SMART Technologies ULC is under license. Trademark notice SMART Board, SMART Notebook, SMART Meeting Pro, SMART Ink, SMART amp, SMART lab, SMART kapp, SMART kapp iQ, HyPr Touch, Pen ID, smarttech, the SMART logo and all SMART taglines are trademarks or registered trademarks of SMART Technologies ULC in the U.S.
Important information NOTE Refer to the installation and maintenance guide for important information about installing and maintaining the display (see More information on page 9). WARNING Do not open or disassemble the display. You risk electrical shock from the high voltage inside the casing.
IMPORTANT INFORMATION Federal Communication Commission interference statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
Hereby, SMART Technologies ULC declares that the radio equipment type Interactive Display SBID-7075, SBID-7075P, SBID-7086 and the interactive pen, SBID-7000-PEN, are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: smarttech.com/compliance...
Contents Important information Federal Communication Commission interference statement Innovation, Science and Economic Development Canada statement EU declaration of conformity EU declaration of conformity: AM40 Chapter 1: Welcome About this guide About the display Components Related products More information Chapter 2: Getting started with the display Waking up the display and putting it back to sleep Using apps on the iQ appliance Using SMART software on connected computers...
Page 8
CONTENTS Resolving issues with Screen Share Appendix A: Using the SMART kapp app Installing the app and starting it for the first time Connecting and disconnecting the app Writing, erasing and viewing notes Saving and working with snapshots Sharing sessions smarttech.com/kb/171163...
Chapter 1 Welcome About this guide About the display Features Identifying your SMART Board 7000 or 7000 Pro series interactive display model Identifying your iQ appliance model Components iQ appliance Screen Home button Pens Eraser Convenience panel Presence detection sensors Internal speakers Related products SBA-100 projection audio system SMART Audio 400 classroom amplification system...

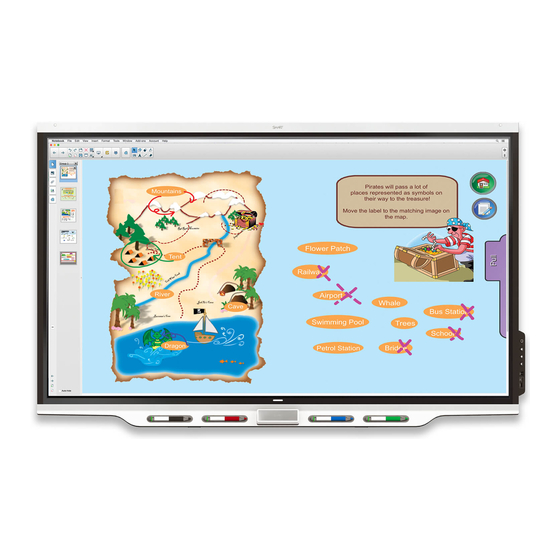

CHAPTER 1 WELCOME About the display The SMART Board 7000 or 7000 Pro series interactive display is the hub of your classroom or meeting room. PC-free embedded computing provides one-touch access to collaborative tools, including a whiteboard, wireless screen sharing and a web browser. There’s no need for wires, cables or manual software and firmware updates.
CHAPTER 1 WELCOME Model Frame style Screen size (approximate) SBID-7086 White 86" (218 cm) SBID-7275 White 75" (190 cm) SBID-7286 White 86" (218 cm) SBID-7075P Black 75" (190 cm) SBID-7275P Black 75" (190 cm) Refer to the specifications for detailed technical information for this model, including product dimensions and weights (see More information on page 9).
CHAPTER 1 WELCOME The display’s HyPr Touch™ (Hybrid Precision Touch) technology enables you to interact with objects on the screen and write and draw in digital ink. Home button Tap the Home button to open the launcher. From the launcher, you can open the iQ appliance’s apps as well as the settings.
CHAPTER 1 WELCOME Light Pen status Action Flashing green or The pen’s firmware is Wait for the light to stop flashing. This indicates amber (while the updating. the pen’s firmware has completed updating. pen is in the magnetic holder) CAUTION When you return a pen to the magnetic holder, make sure it’s centered in its holder to keep it from falling and being damaged.
CHAPTER 1 WELCOME Name Procedure Power Press to enter or exit Standby mode. Press and hold for four seconds to turn off the display. Press and hold for 10 seconds to reset the display. Volume increase Press to increase the volume. Volume decrease Press to decrease the volume.
CHAPTER 1 WELCOME Internal speakers The display includes two 10 W integrated speakers. You can also connect external speakers. Related products Related products for the display include the following: SBA-100 projection audio system SMART Audio 400 classroom amplification system USB extenders SBA-100 projection audio system Available for education models, the SBA-100 projection audio system consists of two 14 W speakers and is intended for wall-mounted displays.
In addition to this guide, SMART provides the following documents for the display: Document Link Quick reference smarttech.com/kb/171162 SBID-7075, 7275, 7075P and 7275P installation instructions smarttech.com/kb/171160 SBID-7086 and 7286 installation instructions smarttech.com/kb/171232 Installation and maintenance guide smarttech.com/kb/171164 SBID-7075 specifications smarttech.com/kb/171131 SBID-7086 specifications smarttech.com/kb/171132...
Chapter 2 Getting started with the display Waking up the display and putting it back to sleep Using apps on the iQ appliance Using SMART software on connected computers Interacting with content Writing, drawing and erasing Adjusting audio Freezing the screen This chapter explains how to wake the display when it’s asleep, how to view connected computers’...
In addition to the iQ appliance, the display comes with SMART software, which you or your organization’s system administrators can install on computers that you connect to the display. The SBID-7075, SBID-7086, SBID-7275 and SBID-7286 models come with SMART Learning Suite, which includes SMART Notebook® collaborative learning software. SMART Notebook software enables you to create .notebook files that include graphics, text, tables, lines, shapes, animations...
CHAPTER 2 GETTING STARTED WITH THE DISPLAY You can connect computers with SMART software to the display (as shown below) and then view the computers’ input on the display. NOTES To interact with content, connect a USB cable to the appropriate USB Type-B receptacle on the connector panel or convenience panel (as shown in the above diagrams).
CHAPTER 2 GETTING STARTED WITH THE DISPLAY Pan (one finger) Pan (two fingers) / scroll Pinch to zoom in / scale (enlarge) Pinch to zoom out / scale (reduce) Rotate Flick Writing, drawing and erasing The display includes black, red, blue and green pens, which you can use to write or draw in digital ink.
CHAPTER 2 GETTING STARTED WITH THE DISPLAY If you’re viewing a connected computer’s input, SMART Ink enables you to write or draw in digital ink over applications, files, folders, websites and any other open window on the computer. To write or draw in digital ink 1.
Page 24
CHAPTER 2 GETTING STARTED WITH THE DISPLAY NOTE Freezing the screen does not pause any applications running on the connected computer. It simply freezes the display of those applications. To unfreeze the screen, press the Freeze button again. smarttech.com/kb/171163...
Chapter 3 Using apps on the display Using the launcher Using acetates Using the Whiteboard Using education apps Using Browser Using Input Using Screen Share Using the Clean Up button The display includes the following apps: Whiteboard SMART Notebook® Player Activities Workspaces Browser Input...
CHAPTER 3 USING APPS ON THE DISPLAY Using the launcher The launcher contains all your apps and settings. Opening and closing the launcher To open the launcher Tap the Home button on the screen. The launcher appears. To close the launcher Select an app, tap the Home button , or tap anywhere on the screen.
CHAPTER 3 USING APPS ON THE DISPLAY Using acetates When using the Browser app or Screen Share app, you can write or draw on acetates and save them to the Whiteboard library. Writing, drawing and erasing ink on an acetate The display includes black, red, blue and green pens, which you can use to write or draw in digital ink.
Page 28
CHAPTER 3 USING APPS ON THE DISPLAY To erase ink on an acetate NOTE If you erase all the ink, the display returns to the app without saving the acetate. See Writing, drawing and erasing on page 14. Acetate tools Tool Icon Description Back...
Page 29
CHAPTER 3 USING APPS ON THE DISPLAY Open the launcher and switch to another app. Tap Whiteboard Library to go to the Whiteboard Library. 2. Tap Save to save the acetate in the Whiteboard Library. Tap Discard to return to the app without saving the acetate. Opening a saved acetate Acetates are saved to the Whiteboard library.
CHAPTER 3 USING APPS ON THE DISPLAY Deleting acetates To delete a saved acetate 1. Open the launcher. 2. Tap Whiteboard 3. Tap the Whiteboard Library icon 4. Select an acetate by tapping its check box. Tap Select All to select all whiteboard sessions and acetates. 5.
Page 31
CHAPTER 3 USING APPS ON THE DISPLAY Tool Icon Description Connect Use the SMART kapp app to connect your mobile device to your display. See Connecting and disconnecting the app on page 61 for more information. NOTE If the QR code is not visible, the SMART kapp app won’t be able to connect to the display and your mobile device won’t be able to save snapshots of the display in the app.
Page 32
CHAPTER 3 USING APPS ON THE DISPLAY Using Panoramic View Panoramic View provides an overview of the entire Whiteboard. Panoramic View is visible only on the display. Use Panoramic View to quickly view a different part of the Whiteboard. To show Panoramic View Touch the Whiteboard near the bottom of the screen.
CHAPTER 3 USING APPS ON THE DISPLAY Continuing a session from the Whiteboard Library You can easily continue from where you left off in a previous Whiteboard session. To continue a session from the Whiteboard Library 1. Tap Whiteboard Library 2.
Page 34
CHAPTER 3 USING APPS ON THE DISPLAY Opening a SMART Notebook file in SMART Notebook Player You can open a SMART Notebook file on the display by doing the following: Copy the SMART Notebook files to the USB drive. Share SMART Notebook files to the display from your computer. Then, download SMART Notebook Player to interact with the content from anywhere in the classroom.
Page 35
CHAPTER 3 USING APPS ON THE DISPLAY To open SMART Notebook files using Share To Board NOTE Sign in is required to share content to the display. See SMART Notebook 17 for more information. Share to Board requires SMART Notebook 17 software or later. 1.
Page 36
CHAPTER 3 USING APPS ON THE DISPLAY 3. Open a SMART Notebook file. See Opening a SMART Notebook file in SMART Notebook Player on page 26. 4. Tap the file to open. If the file contains a SMART lab activity, you can play the activity. 5.
Page 37
CHAPTER 3 USING APPS ON THE DISPLAY To start a Shout It Out! activity 1. Open the launcher. 2. Tap Player 3. In Board Files, tap Instant SIO. NOTE The Shout It Out! activity is in a SMART Notebook file. 4. Tap Start. For more information, see Creating and adding a Shout It Out! activity in SMART Notebook 17 collaborative learning software user’s guide (smarttech.com/kb/171185) About SMART Notebook Player tools...
Page 38
CHAPTER 3 USING APPS ON THE DISPLAY About SMART Notebook Player settings Access SMART Notebook Player settings by tapping the Player icon in the upper-left corner. Option Values Function Right toolbar visibility Displays a copy of the toolbar on the right Frequently asked questions about SMART Notebook Player on the display How do I access Copy SMART Notebook files to a USB drive and insert the drive in SMART Notebook files on...
Page 39
CHAPTER 3 USING APPS ON THE DISPLAY Using SMART Notebook Player on your mobile device Teachers can download SMART Notebook Player for mobile devices to share SMART Notebook files to the display and interact with the content from anywhere in the classroom. Provide any feedback about SMART Notebook Player to SMART at smarttech.uservoice.com.
Page 40
CHAPTER 3 USING APPS ON THE DISPLAY Using SMART Notebook Player on an iPad The Notebook Player app for iPad® devices has additional features. To write or draw ink in the Notebook Player app on an iPad NOTE The ink won’t be saved when you close the SMART Notebook file. 1.
Page 41
CHAPTER 3 USING APPS ON THE DISPLAY How do I sign in to Sign in with the same Google™ or Microsoft® account used to sign SMART Notebook Player? in to SMART Learning Suite. How did my SMART Notebook files were shared to the board using the Share to SMART Notebook files Board feature in SMART Notebook 17 software or later.
CHAPTER 3 USING APPS ON THE DISPLAY Opening Workspaces To open Workspaces 1. Open the launcher. 2. Tap the Workspaces icon. A browser window opens and the SMART amp web page appears. Using Workspaces For more information on Workspaces, see the Using SMART amp.
CHAPTER 3 USING APPS ON THE DISPLAY Using Input Connect a computer to the display to present content on the display. Download and install SMART software on the connected computer to take full advantage of the display’s touch and ink features. Showing content on the display To show content on the display 1.
CHAPTER 3 USING APPS ON THE DISPLAY Stop showing content on the display To stop showing content on the display Open the launcher and select another app. Using Screen Share You can share content wirelessly to the display from your computer or mobile device. NOTES Touch interactions are not supported while using Screen Share.
Page 45
CHAPTER 3 USING APPS ON THE DISPLAY To share content from the browser tab to the display 1. On the display, open the launcher. The launcher appears. 2. Tap Screen Share NOTE Remember the display’s name. 3. On your computer, open the Chrome browser. 4.
Page 46
CHAPTER 3 USING APPS ON THE DISPLAY Sharing content from your Windows® computer to the display If your computer is running Windows 10 or Windows 8.1 operating system, you can use Miracast to share content. You can use the Chrome browser to share content from your Windows computer. See Sharing content from the Chrome browser to the display on page 36 You can purchase AirParrot®, an application that allows you to share your display, a single application or a media file.
Page 47
CHAPTER 3 USING APPS ON THE DISPLAY 2. Tap Screen Share NOTE Remember the display’s name. 3. On your computer, swipe in from the right edge of the screen, and then tap Devices. With a mouse, point to the lower-right corner of the screen, move the pointer up and click Devices.
Page 48
CHAPTER 3 USING APPS ON THE DISPLAY Sharing content from your Apple product to the display For a list of supported Apple products, see Supported Apple devices and operating systems on the facing page. NOTE Make sure your Mac computer or iOS device is connected to the same network as the display. See Verifying that the display and mobile device or computer are connected to the same network on page 44 for more information.
Page 49
CHAPTER 3 USING APPS ON THE DISPLAY To mirror your iOS device’s screen to the display 1. On the display, open the launcher. The launcher appears. 2. Tap Screen Share NOTE Remember the display’s name. 3. On your iOS mobile device, open the Control Center. 4.
Page 50
CHAPTER 3 USING APPS ON THE DISPLAY NOTE Make sure your Android mobile device is connected to the same network as the display. See Verifying that the display and mobile device or computer are connected to the same network on page 44 for more information. To share your Android device’s screen on the display using the Google Home app 1.
Page 51
CHAPTER 3 USING APPS ON THE DISPLAY Supported Android devices and operating systems All devices running Android 4.4.2 or later support the Cast Screen feature. Optimized devices for Android Screen casting. NOTE Not all mobile devices have been optimized for screen casting. Make sure Power Saving mode is off on your Android device.
CHAPTER 3 USING APPS ON THE DISPLAY 2. On your computer, swipe in from the right edge of the screen, and then tap Devices. With a mouse, point to the lower-right corner of the screen, move the pointer up and click Devices.
Page 53
CHAPTER 3 USING APPS ON THE DISPLAY NOTES Pressing the Clean Up button doesn’t perform a factory reset on the display. For information about changing the Clean Up button settings, see the SMART Board 7000 and 7000 Pro series interactive displays installation and maintenance guide (smarttech.com/kb/171164).
Chapter 4 Troubleshooting Resolving general issues Resolving issues with SMART Notebook Player Resolving issues with Activities Resolving issues with Workspaces Resolving issues with Browser Resolving issues with Input Resolving issues with Screen Share Resolving issues with Android mobile devices Resolving issues with Apple devices Resolving issues with Chrome browser and Chromebook Resolving issues with Windows computers This chapter explains how to troubleshoot the display’s software.
Content Protection (HDCP). Make sure the sync device is able to receive and display HDMI content that is protected by HDCP. For more information, see SMART Board interactive flat panels and High-bandwidth Digital Content Protection (HDCP). When updating the iQ system...
CHAPTER 4 TROUBLESHOOTING Issue Solutions The display’s name doesn’t appear See the SMART Board 7000 and 7000 Pro series interactive displays in the list of available devices. installation and maintenance guide (smarttech.com/kb/171164) and your computer’s documentation. Restart the display. See the SMART Board 7000 and 7000 Pro series interactive displays installation and maintenance guide (smarttech.com/kb/171164).
CHAPTER 4 TROUBLESHOOTING Resolving issues with Workspaces Issue Solutions Workspaces is unable to display Make sure the display is connected to a network and the network is configured any content. properly. See the SMART Board 7000 and 7000 Pro series interactive displays installation and maintenance guide (smarttech.com/kb/171164).
CHAPTER 4 TROUBLESHOOTING Issue Solutions There is an issue with touch. Make sure the USB cable is securely fastened to both your computer and the display. Use a USB 2.0 cable and make sure it’s connected to the correct USB receptacle.
Page 60
CHAPTER 4 TROUBLESHOOTING Resolving issues with Android mobile devices Issue Solutions The display’s name doesn’t appear Make sure your mobile device is on the same network as the display. in the list of available devices. Not all Android devices can initiate Screen Share from the notification drawer. Download the Google Home app from Google Play to use Screen Share.
Page 61
CHAPTER 4 TROUBLESHOOTING Issue Solutions The video has no audio. Make sure the volume on your Android device is turned up and the display is not muted. Turn up the volume on the display. See Convenience panel on page 6. Make sure you have the latest operating software on your Android mobile device.
Page 62
CHAPTER 4 TROUBLESHOOTING Issue Solutions The display’s name appears in the Open the Screen Share app. list of available devices but you’re a. On the display, open the launcher. unable to connect to it. The launcher appears. b. Tap Screen Share The video is choppy or the audio If your network is slow or congested, Screen Share is affected.
Page 63
CHAPTER 4 TROUBLESHOOTING Resolving issues with Chrome browser and Chromebook Issue Solutions The display’s name doesn’t appear Make sure your computer is on the same network as the display. in the list of available devices. If your display is using a wired network connection, try connecting it to a wireless network.
Page 64
CHAPTER 4 TROUBLESHOOTING Resolving issues with Windows computers Issue Solutions The display’s name doesn’t appear Make sure your computer is on the same network as the display. in the list of available devices. If your display is using a wired network connection, try connecting it to a wireless network.
Page 65
CHAPTER 4 TROUBLESHOOTING Issue Solutions The video is choppy or the audio If your network is slow or congested, Screen Share is affected. Contact your isn’t in sync with the video. administrator. The Wi-Fi signal could be weak. Contact your administrator. Your device could be connected to a different access point than your display, which can increase latency.
Page 66
CHAPTER 4 TROUBLESHOOTING Issue Solutions When using Miracast, the text on NOTE your is fuzzy or images stutter. Projecting video or games to the display might not work well. Decrease the screen resolution on your Windows 8.1 computer. a. On your computer, swipe in from the right edge of the screen, and then tap Search.
Appendix A Using the SMART kapp app Installing the app and starting it for the first time Installing the app Starting the app for the first time Connecting and disconnecting the app Connecting Disconnecting Continuing a previous session Writing, erasing and viewing notes Write and erase notes on the display Write and erase notes in the app Viewing notes...
APPENDIX A USING THE SMART KAPP APP The app is compatible with the following devices: Device type Requirements Apple iOS 9 or later operating system software 50 MB of storage iPhone 4S or later Third generation iPad or later First generation iPad mini or later Fifth generation iPod touch or later Android Android 4.4.4 (KitKat) or later operating system...
APPENDIX A USING THE SMART KAPP APP 2. Use the swipe gestures to progress through the screens of the tutorial. Previous screen Next screen 3. Tap Close when you have completed the tutorial. The app home screen appears. If you want to see the tutorial again, do the following: On an Apple mobile device, tap Settings on the app home screen and then select Tutorial.
APPENDIX A USING THE SMART KAPP APP To connect by QR code 1. Start the SMART kapp app on your mobile device. 2. Hold your mobile device’s rear-facing camera still over the display’s QR code so that the QR code appears in the center of the app screen. The app connects your mobile device to the display.
APPENDIX A USING THE SMART KAPP APP To disconnect the app manually Tap Disconnect in the top left corner of the SMART kapp app screen, and then tap Disconnect. Tap Disconnect on the display. Continuing a previous session You can easily pick up from where you left off in a previous SMART kapp session. You can continue one of your previous sessions from the last snapshot taken in a session.
APPENDIX A USING THE SMART KAPP APP To continue a previous session on an Android mobile device 1. If you’re currently in a session, disconnect (see Disconnecting on page 62). 2. Tap Sessions The Sessions screen appears. 3. For the session you want to continue, tap Menu and select Continue. In the snapshot library, select the session you want to continue to view and tap Continue The QR scanner appears.
APPENDIX A USING THE SMART KAPP APP 3. Tap the buttons on the bottom of the screen, and then use your fingers to write, erase, pan or zoom. Write in black ink Write in red ink Erase Pan and zoom using gestures (see Viewing notes below) 4.
APPENDIX A USING THE SMART KAPP APP Using Radar View Radar View provides an overview of the entire Whiteboard. Radar View is visible only on the display. Use Radar View to quickly view a different part of the Whiteboard. To show Radar View Touch the Whiteboard near the bottom of the display.
APPENDIX A USING THE SMART KAPP APP Saving snapshots to the app To save a snapshot 1. Start or connect to a session (see Connecting and disconnecting the app on page 61). 2. Tap Capture on the display. Tap Capture in the app. The app saves a snapshot of your notes.
APPENDIX A USING THE SMART KAPP APP To view snapshots in previous sessions 1. If you’re currently in a session, disconnect (see Disconnecting on page 62). 2. On an Apple mobile device, tap Sessions On an Android mobile device, tap Sessions The Sessions screen appears. 3.
Page 77
APPENDIX A USING THE SMART KAPP APP 3. On an Apple mobile device, tap Export On an Android mobile device, tap Menu , and then select Share as Image or Share as PDF. 4. Select the app you want to use to export the snapshots. 5.
APPENDIX A USING THE SMART KAPP APP Deleting snapshots You can delete snapshots individually or delete an entire session and all of its saved snapshots. To delete a snapshot from a previous session 1. If you’re currently in a session, disconnect (see Disconnecting on page 62). 2.
APPENDIX A USING THE SMART KAPP APP Sharing sessions During a session, you can use the SMART kapp app to invite up to 250 people to view your notes on their mobile or desktop devices. NOTE You can share notes only as long as the SMART kapp app is running on your mobile device and the device is connected to a display.
APPENDIX A USING THE SMART KAPP APP 2. Tap Invite , and then select Send Link. 3. Select the app you want to use to send the invitation. 4. Use the selected app to send the invitation. Setting the shared session link type When you invite others to join your session, the app sends them a dynamic link by default.
APPENDIX A USING THE SMART KAPP APP 3. Select Sharing, and then select Password. The Enter Password screen appears. 4. Select Require a Password. 5. Type up to 32 characters for a password. 6. Tap OK. To remove the password 1. If you’re currently in a session, stop sharing the session (see Stopping sharing below). 2.
Page 82
APPENDIX A USING THE SMART KAPP APP Save snapshots of notes Share snapshots You can also connect your own display to the session, and then view and interact with notes using the display. Changes you make on your display appear automatically on the other person’s display. Changes made on their display appear on yours.
Page 83
APPENDIX A USING THE SMART KAPP APP 4. Hold your mobile device’s rear-facing camera still over the display’s QR code so that the QR code appears in the center of the app screen. The app connects your mobile device to the display. The other person’s shared notes appear on the display.
