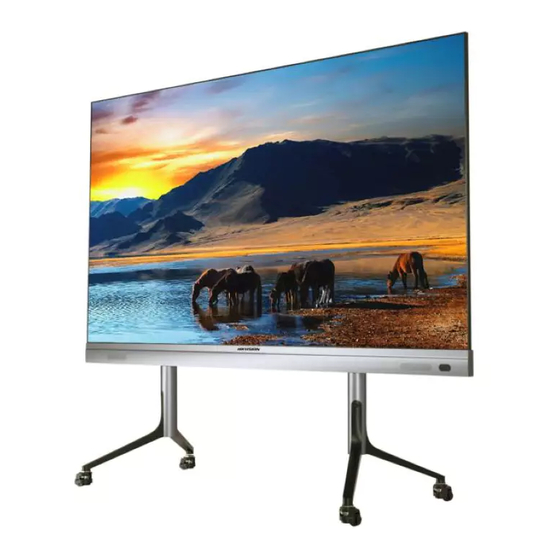

HIKVISION DS-D4215FI-135H User Manual
  1. Manuals
  2. Brands
  3. HIKVISION Manuals
  4. Monitor
  5. DS-D4215FI-135H
  6. User manual

HIKVISION DS-D4215FI-135H User Manual

Led multi-media display
Hide thumbs Also See for DS-D4215FI-135H:
Table of Contents

Advertisement

Quick Links

Download this manual
LED Multi-Media Display
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-D4215FI-135H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-D4215FI-135H

Summary of Contents for HIKVISION DS-D4215FI-135H

  • Page 1 LED Multi-Media Display User Manual...
  • Page 2 INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
  • Page 3 LED Multi-Media Display User Manual PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
  • Page 4 LED Multi-Media Display User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, Caution could result in equipment damage, data loss, performance...
  • Page 5 LED Multi-Media Display User Manual ● After installation, there should be no openings around the LED module. The bottom bracket under the wire outlet position should completely cover the bottom hole only to let the wire out, to prevent the molten material from dripping to the bottom during fire caused by internal failure.

  • Page 6: Table Of Contents

    LED Multi-Media Display User Manual Contents Chapter 1 Product Introduction ....................1 Chapter 2 Sending Card Configuration ..................1 2.1 Activate Device ........................1 2.2 Add Device ..........................3 2.2.1 Add Single or Multiple Online Devices ..............3 2.2.2 Add Device by IP Address................... 5 2.2.3 Add Device by IP Segment ..................
  • Page 7 LED Multi-Media Display User Manual 3.6.7 Bottom Gesture ......................8 3.6.8 Float Menu ......................... 9 3.6.9 Select Desktop Style ....................9 3.7 System ............................ 9 3.6.1 Schedule Startup and Shutdown ................10 3.6.2 Reset to Factory Settings ..................10 3.6.3 System Upgrade ....................... 11 3.6.4 About ........................

  • Page 8: Chapter 1 Product Introduction

    PC or mobile phone. Operation through a remote control is also allowed. The LED multi-media display is equipped with Hikvision’s professional image processing technology, including Pix Code (algorithm for optimizing the details of low- grayscale image), Pix Master (algorithm for image enhancement), Color Master (algorithm for color fidelity), HDR display, 3D display and other research and development achievements.

  • Page 9: Chapter 2 Sending Card Configuration

    LED Multi-Media Display User Manual Chapter 2 Sending Card Configuration 2.1 Activate Device Activate the sending card via the LED Display Client when using it for the first time. Before You Start ● The client has been installed correctly. ● Ensure the PC running the client and the sending card are in the same LAN. Steps 1.
  • Page 10 LED Multi-Media Display User Manual Figure 2-2 Activation Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 11: Add Device

    LED Multi-Media Display User Manual Figure 2-3 Set Network Parameters Note If the device connected network has DHCP function, the IP address of the device will be allocated automatically. You can skip step 4. 2.2 Add Device The client provides multiple device adding modes including by IP address and IP segment. You can also import multiple devices in batch when there are large amount of devices to be added.
  • Page 12 LED Multi-Media Display User Manual client in batch. Before You Start ● The device(s) to be added are in the same network with the PC running the client. ● The device(s) to be added have been activated. Steps 1. Click Device Management. 2.

  • Page 13: Add Device By Ip Address

    LED Multi-Media Display User Manual User Name By default, the user name is admin. Password Enter the device password. Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 14 LED Multi-Media Display User Manual Figure 2-5 Add Device by IP Address 4. Enter the required information. Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 15: Add Device By Ip Segment

    LED Multi-Media Display User Manual Note If you do not check Add Offline, you cannot add the offline device(s). Synchronize Time Check Synchronize Time to synchronize the device time with the PC running the client after adding the device to the client. Parameters Self- If you enable Parameters Self-Check, the device will detect some of Check...
  • Page 16 LED Multi-Media Display User Manual Figure 2-6 Add Device by IP Segment 4. Enter the required information. Note ● The top three segments of the start and end IP addresses should be same. Up to 255 devices in the same IP segment can be added. ●...

  • Page 17: Import Devices In Batch

    LED Multi-Media Display User Manual Note If you do not check Add Offline, you cannot add the offline device(s). Synchronize Time Check Synchronize Time to synchronize the device time with the PC running the client after adding the device to the client. Parameters Self- If you enable Parameters Self-Check, the device will detect some of Check...

  • Page 18: Import Configuration File

    LED Multi-Media Display User Manual Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 19: Set Screen Type

    LED Multi-Media Display User Manual Figure 2-8 Set Display Attribute 3. Set the display attribute. Video Wall Scale Set row(s) and column(s) of the screen according to the actual situation. Each cabinet contains 1 or 2 receiving cards. Enable Zooming Check it to enable the signal source zooming.
  • Page 20 LED Multi-Media Display User Manual Figure 2-9 Load Screen Type from Cloud – Load from Screen: Click Load. The system will load the screen type automatically. Figure 2-10 Load Screen Type from Screen – Import File: 1. Click to select the configuration file. 2.

  • Page 21: Set Signal Connection

    LED Multi-Media Display User Manual 2.6 Set Signal Connection Set signal line connection according to the actual receiving card connection between LED cabinets. Steps Note After setting the video wall scale, the LED screen will show the signal line connection. The signal connection via the client must match with the actual screen connection.
  • Page 22 LED Multi-Media Display User Manual – Click the screen on the right side of the interface to connect signal lines. – Select Line Type, and select the start port and end port. 6. Optional: Other operations. Display/Hide Line Click the button to display/hide the connection lines shown on the screen.

  • Page 23: Chapter 3 System Introduction

    LED Multi-Media Display User Manual Chapter 3 System Introduction 3.1 Home When sending card configuration is completed, the device will show system home. Introduction to the software on the home is shown as follows. ● Wireless Sharing: Enables devices including PCs and mobile phones to mirror screen via miracast or screen mirroring code.

  • Page 24: Network

    LED Multi-Media Display User Manual Figure 3-2 Wireless Sharing 3.3 Network Click Settings → Network. Set up wired network, wireless network, hotspot, and Bluetooth. Figure 3-3 Network Settings Note Wired network and wireless network cannot be enabled at the same time. 3.3.1 Wired Network Wired network can be enabled when the device is connected to a network cable.

  • Page 25: Wireless Network

    LED Multi-Media Display User Manual Figure 3-4 Wired Network 3.3.2 Wireless Network The device can also be connected to network via Wi-Fi. Figure 3-5 Wireless Network Note Wireless network will be disabled when hotspot is enabled.

  • Page 26: Hotspot

    LED Multi-Media Display User Manual 3.3.3 Hotspot When wired network is enabled, the device can be served as a hotspot. ● Default Hotspot Name: ZY_ADA.L8386 ● Default Password: 88888888 Hotspot parameters can be edited. Figure 3-6 Hotspot Note Wireless network will be disabled when hotspot is enabled. 3.3.4 Bluetooth When the Bluetooth is enabled, the device can be paired to a Bluetooth speaker for audio output.

  • Page 27: Sound

    LED Multi-Media Display User Manual Figure 3-8 Picture 3.5 Sound Click Settings → Sound. Configure sound parameters. ● System Sound: If enabled, device volume can be adjusted; if disabled, the device is muted. ● Optical Fiber Output: If enabled, device sound will be output to the connected speaker via optical fiber.

  • Page 28: Signal

    LED Multi-Media Display User Manual Figure 3-10 General Settings 3.6.1 Signal ● Remember Signal: Select system signal input. – Last Used: Signal input used last. – Home: Android signal input. – OPS: Windows signal input. – HDMI2: HDMI signal input. ●...

  • Page 29: Apps

    LED Multi-Media Display User Manual input. Figure 3-11 Signal Settings 3.6.2 Apps Select an application to see more details and for more operations: forcefully stop, open, uninstall, or remove data. 3.6.3 Date & Time Enable Set Automatically to synchronize system time automatically. Or disable the function to set Date, Time, and Time Zone manually.

  • Page 30: Language & Keyboard

    LED Multi-Media Display User Manual 3.6.4 Language & Keyboard You can select system language. Figure 3-13 Language & Keyboard 3.6.5 Wallpaper Select system wallpaper or custom wallpaper. Figure 3-14 Wallpaper 3.6.6 Assistive Touch When enabled, click on either side of the screen to use Assistive Touch. Table 3-1 Assistive Touch Description Icon Description...

  • Page 31: Float Menu

    LED Multi-Media Display User Manual 3.6.8 Float Menu When enabled, float buttons will appear on the screen. Table 3-2 Float Menu Description Icon Description Icon Description Back to the previous page, or Enter menu settings. exit current application. Open Whiteboard. Enter system settings.

  • Page 32: Schedule Startup And Shutdown

    LED Multi-Media Display User Manual default or upgrade the system, and see more details about the device. Figure 3-16 System Settings 3.6.1 Schedule Startup and Shutdown Enable Schedule Startup and Schedule Shutdown, and set up time. The device will start up and shut down at the scheduled time.

  • Page 33: System Upgrade

    LED Multi-Media Display User Manual 3.6.3 System Upgrade Upgrade system via the packages saved in a USB flash drive or local file folder. Note  The upgrade package must be saved in the root directory of the local storage or the connected USB flash drive.

  • Page 34: Chapter 4 Remote Control

    LED Multi-Media Display User Manual Chapter 4 Remote Control The device is equipped with an infrared remote controller, which can be paired with via Bluetooth. In infrared mode, aim the remote controller at the power button at the bottom right of the device to use.

  • Page 35: Communication Matrix And Device Command
