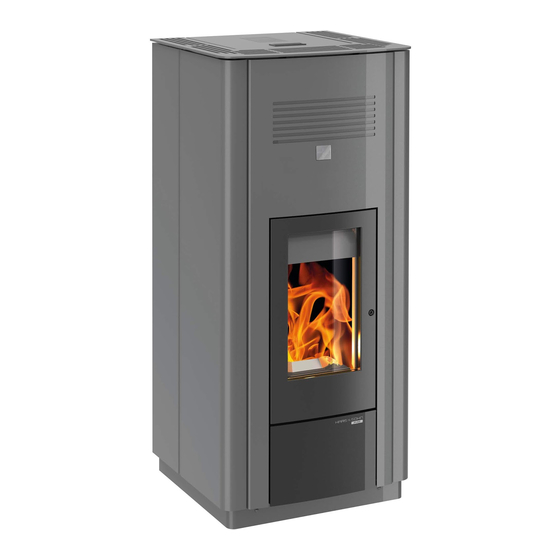

- Page 1 Equipment sheet HSP 6 537.08–WT RLU/PGI HSP 6 537.08–WT RLU/PGI Equipment sheet Pellet stove with heat exchanger 0553708001403b...
- Page 2 Notes in the text Of utmost importance there are the notes entitled WARNING. The notes entitled WARNING advise you on serious danger of damage to the heating device or of an injury. The note entitled Notice advises you on possible damage to your heating device. The note entitled Important calls your attention to the information important for the operation of your heating device.
-
Page 3: Table Of Contents
Contents 1. Technical data..........................1 2. Dimensions........................... 2 2.1. Dimensions ..........................2 2.2. Connection of the exchanger ....................3 3. Cleaning work ..........................4 3.1. Cleaning the surface ......................... 4 3.2. Cleaning the glass panel ......................4 3.3. Clean combustion chamber “function instruction” Error F040..........4 3.4. -
Page 5: Technical Data
1. Technical data HSP 6 537.08–WT RLU/PGI Heat output range: 2,7 – 10 kW Nominal heat output: 10 kW Output delivered by the stove body only (NO/PO): 2,1/0,2 kW Output available for heating of water (NO/PO): 7,9/2,5 kW Height: 1200 mm Width: 545 mm Depth:... -
Page 6: Dimensions
2. Dimensions 2.1. Dimensions... -
Page 7: Connection Of The Exchanger
2.2. Connection of the exchanger Item Name Heating water output (outside thread G3/4") Return water intake (outside thread G3/4") Outlet of the safety valve (outside thread G1/2") Filling of the circulation system Venting valve... -
Page 8: Cleaning Work
3. Cleaning work WARNING Before starting any cleaning work, the stove must be cool down! Once the cleaning work is completed, the correct operating status of the device must be re- established: Put the combustion pot in correctly, close the combustion chamber door. 3.1. - Page 9 WARNING If this is not done, the clinker will continue to accumulate. Then the device will no longer be able to ignite properly. Pellets can pile up in the combustion pot. In extreme cases, this can reach all the way back to the pellet chute.
-
Page 10: Maintenance Work
4. Maintenance work WARNING Before starting any cleaning work, the stove must be cool down! The mains plug must be pulled out of the power supply socket (always in advance)! WARNING Devices that are not maintained in accordance with our specifications must not be operated. Failure to observe this point will invalidate all guarantee claims. - Page 11 Figure 1...
-
Page 12: Cleaning Of The Exchanger - Once A Week
4.2. Cleaning of the exchanger - once a week CAUTION We recommend you to clean the conduits of combustion products and the exchanger once in a week. Please perform the short-time cleaning in two steps: 4.2.1. Vertical cleaning of the exchanger •... -
Page 13: Horizontal Cleaning Of The Conduits Of Combustion Products
4.2.2. Horizontal cleaning of the conduits of combustion products • Get the cleaning bar from the rear cover of the stove. Next, remove the cover plug and dismount the screw M10x70 by means of an Allen wrench, located behind the ash-pan door. After having finished the cleaning by means of the blade, mount the screw and fit the cover plug to their places again. - Page 14 Figure 3a...
- Page 15 Figure 3b...
- Page 16 Figure 3c Description Pos. Piece No. PR Cover plug 1 piece 0553808006180 1 piece Allen wrench 6mm 9001700060005 1 piece Screw M10x70 0030121000705 Drawbar of cleaning 1 piece 0433317006063...
-
Page 17: Cleaning Of The Exchanger
4.3. Cleaning of the exchanger CAUTION Check and clean the flue-gas ways, exhaust (flue-gas) fan and flue-gas ducts at the latest after 1000 kg of pellets have been consumed. Clean with a brush or an ash extractor. CAUTION After completion of the cleaning make sure that when putting back the covers, the seals are seated in the right positions. - Page 18 Figure 4...
- Page 19 Figure 5: Removing the side wall...
-
Page 20: Cleaning The Pellet Container - Annual Maintenance
4.4. Cleaning the pellet container - annual maintenance • Heat the pellet stove until the storage tank is completely empty. • Then the protective grille (1) in the pellet tank may be removed. • Then clean the tank and the intake of the screw conveyor housing with a vacuum cleaner. •... -
Page 21: Replacement Parts List
5. Replacement parts list 5.1. Replacement parts list HSP 6 537.08–WT RLU/PGI (without trim parts) - Page 22 Description Pos. Piece No. PR Replacement parts list HSP 6 537.08–WT RLU/PGI (without trim parts) Complete combustion chamber door/black 1 piece 0553808005300 Complete combustion chamber door/ 1 piece 0553808015300 anthracite Ash-pan door/anthracite 1 piece 0553808005060 Ash pan/anthracite 1 piece 0553808005600 1 piece Burner cast/anthracite 0553808005706...
- Page 23 4 piece Screw UN5950 M5x10 Motor plate - set 1 piece 0551908007080 Screw conveyor motor 1 piece 0089500000006 1 piece Air inlet funnel 0553808015320 1 piece Hose Meniflex AL L=500 0553808005322 Entry to the panel of flanges 1 piece 0553808005901 Room temperature sensor 1 piece 0089500390005...
-
Page 24: Detail A1
5.2. Detail A1 Description Pos. Piece No. PR Detail A1 Screwing door — set 1 piece A1.1. 0551908005001 Door hinge/black — set 1 piece A1.2. 0553808006340 Door hinge/anthracite — set 1 piece 0553808005340 A1.2. 1 piece A1.3. Glass holder/black — set 0551908035308 1 piece A1.3. -
Page 25: Replacement Parts List Hsp 6 537.08-Wt Rlu
5.3. Replacement parts list HSP 6 537.08–WT RLU/PGI Description Pos. Piece No. PR Replacement parts list HSP 6 537.08–WT RLU/PGI Side wall left+right/anthracite 2 piece 56+58 0553808006140 Side wall left+right/white 2 piece 56+58 0553808016140 Front plate/anthracite 1 piece 0553808016120 Front plate/anthracite-black 1 piece 0553808006120 Cover plate/anthracite... -
Page 26: Circuit Diagram
6. Circuit diagram Circuit diagram IO 33.6... - Page 27 Fuse T 3,15A ignition, induced draught fan, screw conveyor motor Fuse T 3,15A pump Fuse T 0,315A operator console * You can use the following types of thermostats for the storage tank: (not supplied by Haas + Sohn) Afriso 7P1 Watts Industries TC-200-AN...
