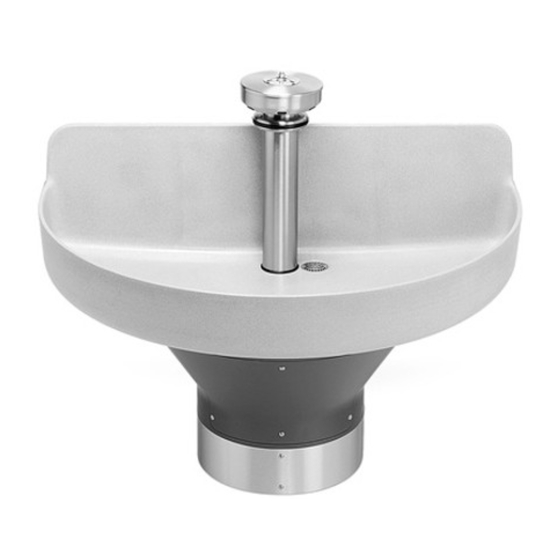

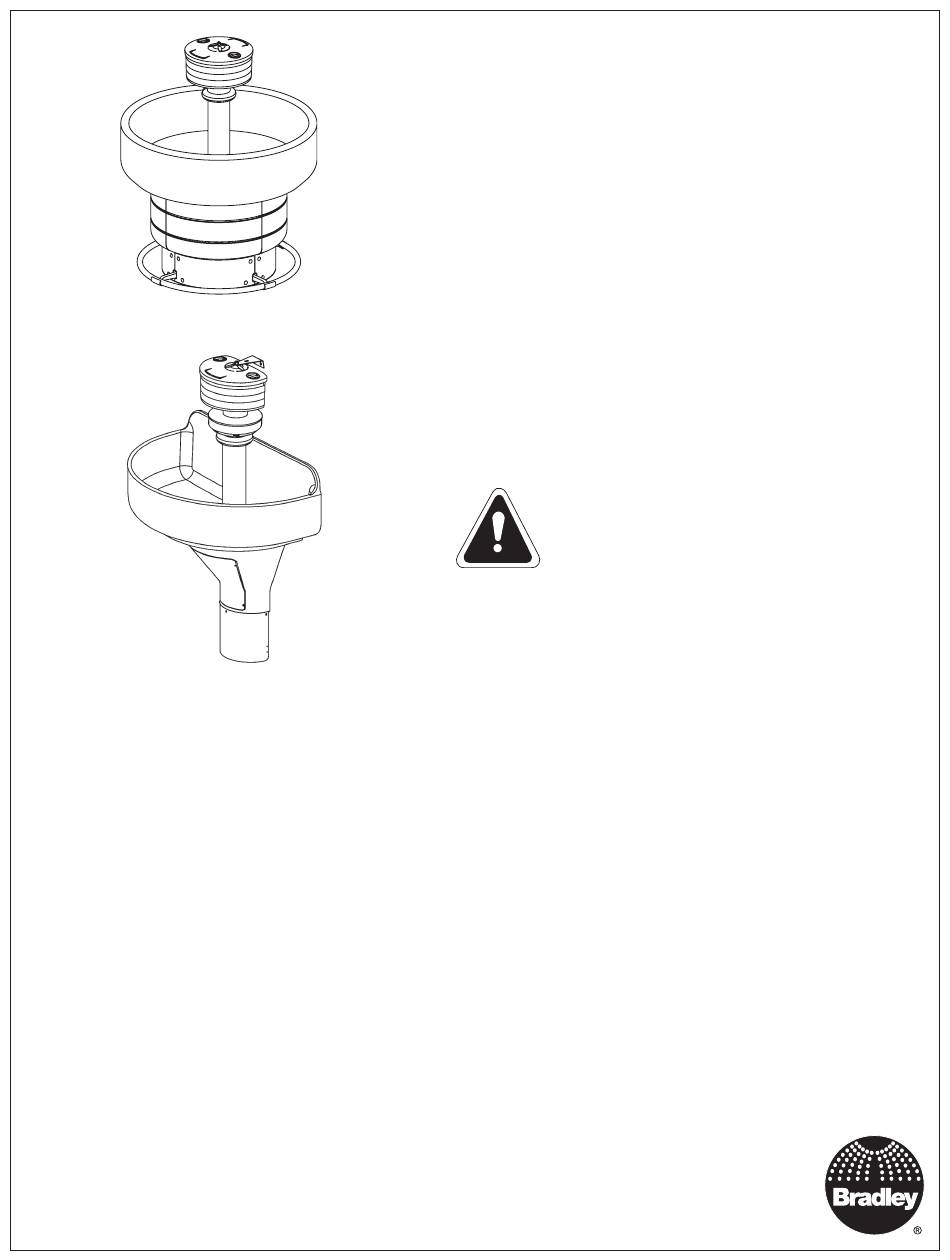

Installation
WF2500 Series Terreon Classic
WF2600 Series Terrazzo
WF2700 Series Stainless Steel
WF2800 Series Bradstone
WF3200 Series Terreon Deep Bowl
TDB3100 Series Terreon Deep Bowl
Read the instructions in this manual before
beginning installation. Save these instructions
and refer to them for inspection, maintenance
and troubleshooting information.
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
P.O. Box 309
+1 262 251 6000
bradleycorp.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WF2705 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bradley WF2705

Summary of Contents for Bradley WF2705

  • Page 1 If any parts are missing, do not begin installation until you obtain the missing parts. P.O. Box 309 Menomonee Falls, WI 53052 USA 215-1833-10 Rev. B; ECN 18-00-009 800 BRADLEY (800 272 3539) © 2018 Bradley +1 262 251 6000 Page 1 of 4 7/19/2018 bradleycorp.com...

  • Page 2: Cleaning And Maintenance

    Cleaning and Maintenance WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Safety Information Installation Turn OFF electrical supply to the unit before installation.
  • Page 3 Cleaning and Maintenance WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Cleaning and Maintenance for Terreon ® Material Description: Terreon is a densified solid surface material composed of bio based resin and is resistant to chemicals, stains, burns and impact.

  • Page 4: Brand Names

    Cleaning and Maintenance WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Cleaning and Maintenance for Terrazzo Material Description: Terrazzo is a mosaic-looking natural stone and concrete material polished to a high gloss and sealed with clear polyurethane resin for long lasting beauty.
  • Page 5 Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2603, WF2604, WF2703, WF2704 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com This document describes installation of washfountain bowl and pedestal only. Some optional equipment and accessories are shown for clarity.
  • Page 6 Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2603, WF2604, WF2703, WF2704 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Circular Washfountain Dimensions (mm) Adjust to Towel Dispenser Mounting Holes 6"...
  • Page 7 Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2603, WF2604, WF2703, WF2704 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Length of Tie Pipe Required for Vent Through Washfountain Column...

  • Page 8: Rough-In Specifications

    Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2603, WF2604, WF2703, WF2704 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com (mm) Rough-In Specifications Type A 1" NPT Supplies 2" NPT Supplies Through Floor: Stub Through Wall Up 3"...
  • Page 9 Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2603, WF2604, WF2703, WF2704 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com (mm) Rough-In Specifications Type O 1" NPT Supplies from Off-line vent with Above Must Reduce to 1/2"...
  • Page 10 Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2603, WF2604, WF2703, WF2704 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com (mm) Rough-In Specifications Type B 1" NPT Supplies from Above Must Reduce to 1/2"...
  • Page 11 Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2603, WF2604, WF2703, WF2704 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com (mm) Rough-In Specifications Type H 1" NPT Supplies Centrally Rising Vent...

  • Page 12: Installing The Drain

    Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2603, WF2604, WF2703, WF2704 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Installing the Drain All piping shown in dotted lines Rough in supply and drain piping as to be supplied by installer.
  • Page 13 Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2603, WF2604, WF2703, WF2704 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Assembling the Pedestal (with Foot Control) Assemble the legs and scuff base Add the foot levers to the pedestal panels with the 5/16"...
  • Page 14 Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2603, WF2604, WF2703, WF2704 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Bowl Assembly and Mounting NOTICE! The pedestal must be level when secured to floor for proper drainage.
  • Page 15 Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2603, WF2604, WF2703, WF2704 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Installing Drain Spud in Bowl Strainer (S45-067) Spud Terrazzo (112-015)
  • Page 16 Sprayheads WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Non-Sectional Sprayhead Repair kit does not include sprayhead grommet. Order as a separate item.
  • Page 17 Sprayheads WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Sprayhead Troubleshooting Problem Cause Solution Water splashes over Foreign matter has reduced the size of Clean the sprayhead: the rim of the bowl.

  • Page 18: Pre-Installation Information

    Infrared Activation Modules - Non-Sectional Semi-Circular Washfountains ® WF2603, WF2604, WF2613, WF2703, WF2704 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Supplies Required by Installer • 110 VAC GFI power source for 120VAC/12VDC plug in adapter.
  • Page 19 Infrared Activation Modules - Non-Sectional Semi-Circular Washfountains ® WF2603, WF2604, WF2613, WF2703, WF2704 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Accu-Zone Infrared Assembly – A and O Units Place sprayhead with 1/2" tubing onto Install hemmed end (not sharp end) support tube.
  • Page 20 Infrared Activation Modules - Non-Sectional Semi-Circular Washfountains ® WF2603, WF2604, WF2613, WF2703, WF2704 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Accu-Zone Infrared Assembly – A and O Units (cont...) Unit with "O" Drain and Infrared...
  • Page 21 Infrared Activation Modules - Non-Sectional Semi-Circular Washfountains ® WF2603, WF2604, WF2613, WF2703, WF2704 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Accu-Zone Infrared Assembly – B and H Units Place sprayhead with 1/2" tubing onto Install hemmed end (not sharp end) support tube.
  • Page 22 ® WF2603, WF2604, WF2613, WF2703, WF2704 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Accu-Zone Infrared Assembly – B and H Units (cont...) Unit with "H" Drain and Infrared Module Insert the 1-1/2"...
  • Page 23 Infrared Activation Modules - Non-Sectional Semi-Circular Washfountains ® WF2603, WF2604, WF2613, WF2703, WF2704 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Connect Valve and Tubing for Non-Sectional Accu-Zone Infrared Control Flush supply lines before making connections.
  • Page 24 Infrared Activation Modules - Non-Sectional Semi-Circular Washfountains ® WF2603, WF2604, WF2613, WF2703, WF2704 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Connect Valve and Tubing for Non-Sectional Infrared Control (Cont...) When tubing and wiring connections Assemble valving as shown.

  • Page 25: Make Electrical Connections

    ® WF2603, WF2604, WF2613, WF2703, WF2704 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Make Electrical Connections WARNING! The Accu-Zone Infrared activation must be connected with a 12V DC plug in adaptor.
  • Page 26 ® WF2603, WF2604, WF2613, WF2703, WF2704 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Turn on Water and Electricity, Test and Adjust Unit Turn on power to plug-in adapter. The solenoid Turn on water supply and check for leaks.
  • Page 27 Accu-Zone Infrared Activation Modules - Non-Sectional Semi-Circular Washfountains ® WF2603, WF2604, WF2613, WF2703, WF2704 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Accu-Zone Infrared Module Components Item Qty. Part No.
