Bradley Terreon WF2505 Installation Instructions Manual

Pre-assembled classic circular 36"/54" washfountain with air valve control
Hide thumbs Also See for Terreon WF2505:
Table of Contents

Advertisement

Quick Links

Download this manual

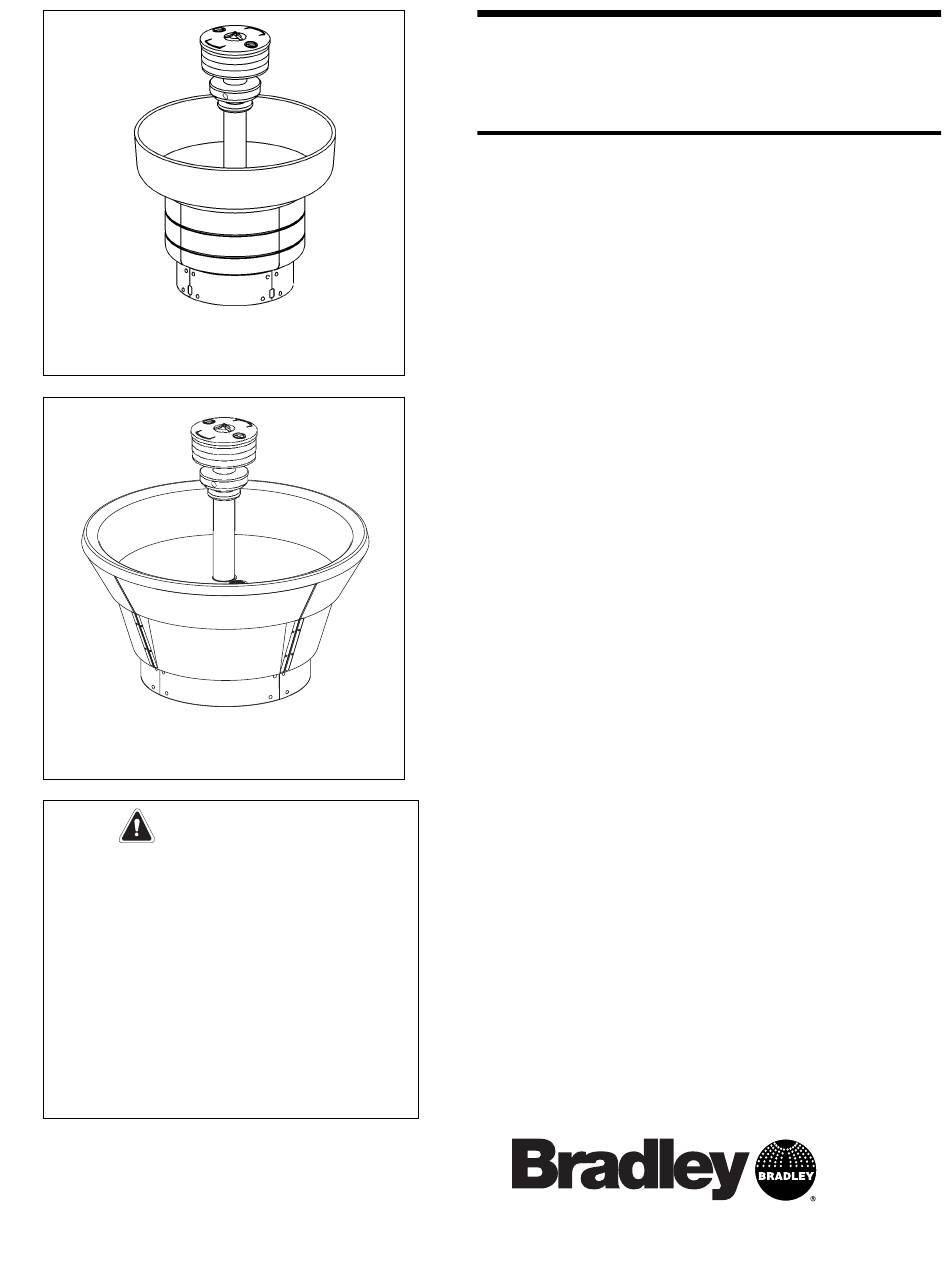

WF2505
WF2808
IMPORTANT
Read this entire installation manual
to ensure proper installation.
Flush all the water supply lines
before making connections.
Main water supply to the unit
should be ON at all times.
This installation manual and parts
list should be filed by the owner or
maintenance department.
215-1516; EN 03-031
© 2003 Bradley Corporation
Page 1 of 25
7-24-2003
Installation
Instructions
WF2505, WF2508 Terreon®
WF2805, WF2808 Bradstone®
Pre-Assembled Classic
Circular 36"/54"
Washfountain with
Air Valve Control

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . . . . . . . . 2
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Circular Washfountain Dimensions . . . . . . . . . . . . . 3-4
Rough-In Specifications . . . . . . . . . . . . . . . . . . . . . . 5-6
Drain Rough-In Specifications . . . . . . . . . . . . . . . . . . .7
Drain Spud Installation . . . . . . . . . . . . . . . . . . . . . . . . .8
Supplies with Optional Soap Dispenser
(A/O drains) . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-10
Supplies with Optional Soap Dispenser
(B/H drains) . . . . . . . . . . . . . . . . . . . . . . . . . . .11-12
Valve Connections for Air Valve . . . . . . . . . . . . . . . .13
Adjust the Air Valve Metering Time . . . . . . . . . . . . .14
Air Valve Troubleshooting . . . . . . . . . . . . . . . . . . . . .15
Check Valve Troubleshooting . . . . . . . . . . . . . . . . . . .15
Air Valve Module Repair Parts . . . . . . . . . . . . . . . . .16
Soap Dispensing Valve Repair Parts . . . . . . . . . . . . .19
Manual Mixing Valve Repair Parts . . . . . . . . . . . . . .21
Volume Control Valve Repair Parts . . . . . . . . . . . . . .22
P.O. Box 309, Menomonee Falls, WI 53052-0309
TEL. 1-800-BRADLEY
http://www.bradleycorp.com
FAX 262-251-5817

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Terreon WF2505 and is the answer not in the manual?

Questions and answers

Related Manuals for Bradley Terreon WF2505

Summary of Contents for Bradley Terreon WF2505

  • Page 1: Table Of Contents

    Cleaning and Maintenance Instructions ..24-25 This installation manual and parts list should be filed by the owner or maintenance department. 215-1516; EN 03-031 P.O. Box 309, Menomonee Falls, WI 53052-0309 © 2003 Bradley Corporation TEL. 1-800-BRADLEY FAX 262-251-5817 Page 1 of 25 7-24-2003 http://www.bradleycorp.com...

  • Page 2: Pre-Installation Information

    1. This warranty is limited to replacing or repairing, at our option, transportation charges prepaid by the purchaser, any Bradley unit or part thereof which our inspection shall show to have been defective within the limitations of this warranty.

  • Page 3: Circular Washfountain Dimensions

    1372 1289 1505 1372 Terreon® 1188 1416 Bradstone® 1372 1257 1470 1372 Bradstone® 1169 1381 Juvenile height: Subtract 102mm from dimensions A through E for juvenile height. (Bradstone not available in juvenile height) Bradley Corporation • 215-1516; EN 03-031 7-24-2003...
  • Page 4 NOTE: Drain must be connected with 2" schedule 40 welded wrought iron pipe, minimum, to provide lower support for this installation. Vent or support pipe must be of the same material in 1-1/2". 7-24-2003 Bradley Corporation • 215-1516 EN 03-031...

  • Page 5: Rough-In Specifications

    1-1/4 " (32) Rough-In Notes For All Models: 1. All pipes and fittings not furnished by Bradley are shown in broken lines. 2" NPT DRAIN: STUB UP 3" (76) 1-1/2" NPT VENT 2. Supply lines for one to two washfountains should 4"...
  • Page 6 FLOOR Rough-In Notes For All Models: COLD 1. All pipes and fittings not furnished by Bradley are shown in broken lines. 2. Supply lines for one to two washfountains should 1-1/2" NPT 4" be 1"; for three washfountains 1-1/4"; for more...

  • Page 7: Installation Instructions

    Types A, O Table 1 — “B” Trap Dimensions Material Size Standard Height Juvenile Height Terreon® 36" 18-5/8" (473) 14-5/8" (371) Terreon® 54" 18-5/8" (473) 14-5/8" (371) Bradstone® 36" 17-3/8" (441) Bradstone® 54" 17" (432) Bradley Corporation • 215-1516; EN 03-031 7-24-2003...

  • Page 8: Pedestal And Bowl Assembly And Mounting

    1. Secure drain spud with lock nut and washers as shown in Figure 2. DRAIN PRE-PACK TOP VIEW OF PEDESTAL ASSEMBLY S45-273 PEDESTAL ASSEMBLY GASKET STRAINER 125-011 S45-067 SPUD 112-015 MOUNTING HOLES FOR ANCHOR BOLTS BOWL WASHER LOCKNUT 142-068 161-021 Figure 3 Figure 2 7-24-2003 Bradley Corporation • 215-1516 EN 03-031...

  • Page 9: (A/O Drains)

    • If connector leaks, reseat tubing according to above procedure. If leaking persists, replace male connector, or call your Bradley representative for assistance. 3. Place sprayhead with 1/2" tubing onto support tube as shown in Figure 5 on page 10. Run tubing down through support tube.
  • Page 10 SUPPORT TUBE GASKET SUPPORT TUBE GASKET (125-011) (125-011) Figure 5 LOWER TIE BAR LOWER TIE BAR SET SCREW SET SCREW (159-009) (159-009) (160-208) (160-208) TIE ROD HEX NUT TIE ROD HEX NUT (110-064) (110-064) 7-24-2003 Bradley Corporation • 215-1516 EN 03-031...

  • Page 11: (B/H Drains)

    • If connector leaks, reseat tubing according to above procedure. If leaking persists, replace male connector, or call your Bradley representative for assistance. 3. Place sprayhead with 1/2" tubing onto support tube as shown in Figure 6 on Page 12. Run tubing down through support tube.
  • Page 12 (S04-083) AIR MODULE ASSEMBLY (S65-132) PUSHBUTTON (S45-1316) 1-1/2" VENT PIPE SPRAYHEAD (S05-054) SUPPORT TUBE (S57-006 36" BOWL) (S57-005 54" BOWL) SUPPORT TUBE GASKET (125-011) 4" HOLE IN BOWL VENTED TRAP (111-024) Figure 6 7-24-2003 Bradley Corporation • 215-1516 EN 03-031...

  • Page 13: Valve Connections For Air Valve

    Table 2 — Distance from 1/2" Supply to Finished Floor Model Number Type A Type B Type O Type H Standard Height 9" (229mm) 7-3/16" 183mm) 9" (229mm) 7-3/16" (183mm) Juvenile Height 5-1/4" (133mm) 3-7/16" (87mm) 5-1/4" (133mm) 3-7/16" (87mm) Bradley Corporation • 215-1516; EN 03-031 7-24-2003...

  • Page 14: Adjust The Air Valve Metering Time

    2. Continue to adjust the timer until it is set at the desired length. 3. Replace the filter cap. RELEASE BUTTON 1/8” TUBING LOCKING SLOPE SEALING RING GRIPPING RIDGE Figure 8 TUBE STOP Figure 9 7-24-2003 Bradley Corporation • 215-1516 EN 03-031...

  • Page 15: Air Valve Troubleshooting

    2. Inspect check valves for proper installation. 3. Open the stops and clean the strainers, if necessary. 4. Inspect mixing valve for proper installation (see Vernatherm valve on page 23). • Hot inlet is marked with red paint. Bradley Corporation • 215-1516; EN 03-031 7-24-2003...

  • Page 16: Air Valve Module Repair Parts

    135-053 REPAIR KIT S73-054A (Note: This repair kit also includes kit S65-110) LOCKWASHER 142-002CR SCREW 160-313 Air Valve Module Assembly (S65-132) MODULE COVER (ONLY) MODULE COVER (ONLY) (S04-083) (S04-083) PUSHBUTTON PUSHBUTTON (S45-1316) (S45-1316) 7-24-2003 Bradley Corporation • 215-1516 EN 03-031...

  • Page 17: Stop, Strainer, Check Valve Repair Parts

    Tail Piece - Brass 129-007A Tail Piece - Plated 110-005 Tail Piece Nut - Brass 110-005A Tail Piece Nut - Plated 124-001AF Tail Piece Washer 135-001AB Spring S21-015 Check Assembly S45-050 Repair Kit Includes these parts Bradley Corporation • 215-1516; EN 03-031 7-24-2003...

  • Page 18: Soap Recommendations And Maintenance Tips

    Soap thickness is determined by a measurement called viscosity. Soap viscosity should be between 100 cps (centerpoise) and 2500 cps for all Bradley soap dispensers. Thinner soaps are perceived by the users as being “watered down” so users tend to take more than they need, resulting in waste. Thick soaps flow slower and inhibit the “flushing”...

  • Page 19: Soap Dispensing Valve Repair Parts

    To change from liquid to powdered, the plug must be removed. If none is present, it will be necessary to drill out the bearing hole with a 1/2" or 5/8" drill. The plastic container configuration forms a natural template for locating the bearing hole. Bradley Corporation • 215-1516; EN 03-031 7-24-2003...

  • Page 20: Sprayhead Troubleshooting/Repair Parts

    Description 125-001DE Neoprene Washer-Top 139-031 Sprayhead Manifold — 124-001AL Washer 160-211 Carriage Bolt 115-061 Sprayhead Top — 116-008 Sprayhead Bottom — 124-001AT Washer 161-025 124-020C Sprayhead Grommet - Circle — 125-001DF Neoprene Washer-Bottom 7-24-2003 Bradley Corporation • 215-1516 EN 03-031...

  • Page 21: Manual Mixing Valve Repair Parts

    Tailpiece - Brass — — 110-005 Tailpiece Nut - Brass — — 129-007A Tailpiece - Chrome — — — 110-005A Tailpiece Nut - Chrome — — — 124-001AF Tailpiece Washer — Parts not shown Bradley Corporation • 215-1516; EN 03-031 7-24-2003...

  • Page 22: Volume Control Valve Repair Parts

    Repair Kit S02-045 S45-198 Item Part No. Description 125-001BC O-Ring 152-038 Roll Pin 121-016 Bonnet 121-016A Bonnet — — 124-001BD Fiber Washer 119-060 Valve Core 118-033 Valve Body — 118-033B Valve Body — — 7-24-2003 Bradley Corporation • 215-1516 EN 03-031...

  • Page 23: Maintenance Instructions

    Correct No Water Cold Valve shuts off or drips Correct Correct Cold Cold Cold Reversed Cold Cold/below 107° Hot/above 107° Reversed No Water Reversed No Water Cold Cold Reversed Reversed Cold Cold Cold Bradley Corporation • 215-1516; EN 03-031 7-24-2003...

  • Page 24: Cleaning And Maintenance Instructions

    ® Solid Surface cleaner and polish to refresh and protect the Terreon Solid Surface material.Bradley recommends additional care and maintenance for the darker colored Terreon, for complete instructions on this additional maintenance see Bradley document #1505. IMPORTANT: DO NOT USE STRONG ACID OR ALKALINE CHEMICALS AND CLEANSERS TO CLEAN TERREON.
  • Page 25 Drains can be cleaned with a plumbers snake inserted through the drain spud after removing the strainer, or through the trap clean out plug IMPORTANT: Do not put drain cleaners in bowl. Damage to bowl will result. Bradley Corporation • 215-1516; EN 03-031 7-24-2003...

This manual is also suitable for:

Terreon wf2508Bradstone wf2805Bradstone wf2808
