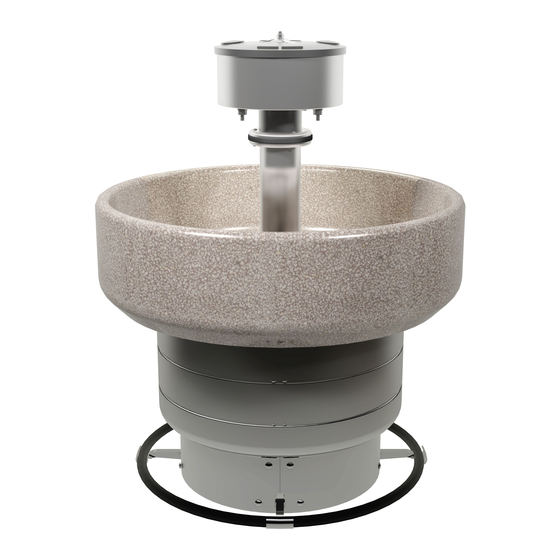

Bradley WF2500 Series Installation Manual

Hide thumbs Also See for WF2500 Series:

Advertisement

Quick Links

Download this manual
WF2605
WF3203
Make sure that all water supply lines have been flushed and then completely turned off before beginning
isntallation. Debris in the supply lines can cause valves to malfunction.
Turn OFF electrical supply to the unit before installation.
Main water supply to the unit should be "ON" at all times.
Read this installation manual completely to ensure proper installation, then file it with the owner or
maintenance department. Compliance and conformity to drain requirements and other local codes and
ordinances is the responsibility of the installer.
Separate parts from packaging and make sure all parts are accounted for before discarding any packaging
material. If any parts are missing, do not begin installation until you obtain the missing parts.
Product warranties and parts information may also be found under "Products" on our web site at bradleycorp.com.
215-1833-10 Rev. A; ECN 17-00-006B
© 2017 Bradley
Page 1 of 2
11/21/2017
Installation
WF2500 Series Terreon Classic
WF2600 Series Terrazzo
WF2700 Series Stainless Steel
WF2800 Series Bradstone
WF3200 Series Terreon Deep Bowl
TDB3100 Series Terreon Deep Bowl
WARNING
NOTICE
IMPORTANT
P.O. Box 309
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
+1 262 251 6000
bradleycorp.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the WF2500 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bradley WF2500 Series

Summary of Contents for Bradley WF2500 Series

  • Page 1 Installation WF2500 Series Terreon Classic WF2600 Series Terrazzo WF2605 WF2700 Series Stainless Steel WF2800 Series Bradstone WF3200 Series Terreon Deep Bowl TDB3100 Series Terreon Deep Bowl WF3203 WARNING Make sure that all water supply lines have been flushed and then completely turned off before beginning isntallation.
  • Page 2 Cleaning and Maintenance WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Cleaning and Maintenance for Terreon ® Material Description: Terreon is a densified solid surface material composed of bio based resin and is resistant to chemicals, stains, burns and impact.
  • Page 3 Cleaning and Maintenance WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Cleaning and Maintenance for Terrazzo Material Description: Terrazzo is a mosaic-looking natural stone and concrete material polished to a high gloss and sealed with clear polyurethane resin for long lasting beauty.
  • Page 4 Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2605, WF2608, WF2705, WF2708 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com This document describes installation of washfountain bowl and pedestal only. Some optional equipment and accessories are shown for clarity.
  • Page 5 Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2605, WF2608, WF2705, WF2708 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Circular Washfountain Dimensions (mm) Approximate Dimensions in Inches* Material Size Terrazzo 54"...
  • Page 6 Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2605, WF2608, WF2705, WF2708 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Length of Tie Pipe Required for Vent Through Washfountain Column...

  • Page 7: Rough-In Specifications

    Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2605, WF2608, WF2705, WF2708 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com (mm) Rough-In Specifications Type A 1" NPT Supplies Through Floor: Stub Up 2-1/2"...
  • Page 8 Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2605, WF2608, WF2705, WF2708 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com (mm) Rough-In Specifications Type O 1" NPT Supplies From Above Must Off-line vent with Reduce to 1/2"...

  • Page 9: Installing The Drain

    Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2605, WF2608, WF2705, WF2708 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Installing the Drain All piping shown in dotted lines Rough in supply and drain piping as to be supplied by installer.
  • Page 10 Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2605, WF2608, WF2705, WF2708 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Assembling the Pedestal (with Foot Control) Assemble the legs and scuff base Add the foot levers and operating cross panels with the 5/16"...
  • Page 11 Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2605, WF2608, WF2705, WF2708 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Bowl Assembly and Mounting NOTICE! The pedestal must be level when secured to floor for proper drainage.
  • Page 12 Sprayheads WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Sectional Sprayhead Sectional Sprayhead (Circular Shown - S34-038, Semi-Circular Similar - S34-037) Connector 1/4" NPT x 1/4" Tube (169-974) 1/4"...
  • Page 13 Sprayheads WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Non-Sectional Sprayhead Repair kit does not include sprayhead grommet. Order as a separate item.
  • Page 14 Sprayheads WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Sprayhead Troubleshooting Problem Cause Solution Water splashes over Foreign matter has reduced the size of Clean the sprayhead: the rim of the bowl.

  • Page 15: Pre-Installation Information

    Air Metering Activation - Non-Sectional Circular Washfountains WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805 WF2808 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Supplies Required by Installer • 1-1/2" vent pipe on types vented through washfountain column •...
  • Page 16 Air Metering Activation - Non-Sectional Circular Washfountains WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805 WF2808 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Air Metering Valve Assembly – A and O Units...
  • Page 17 Air Metering Activation - Non-Sectional Circular Washfountains WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805 WF2808 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Some optional equipment shown. Type "O" Drain Supplies from Above Type "A"...
  • Page 18 Air Metering Activation - Non-Sectional Circular Washfountains WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805 WF2808 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Air Metering Valve Assembly for B Drain and H Drain Units Insert the 1-1/2"...
  • Page 19 Air Metering Activation - Non-Sectional Circular Washfountains WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805 WF2808 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Some optional equipment shown. Type "H" Drain Supplies from Below Supplies 1/2"...
  • Page 20 Air Metering Activation - Non-Sectional Circular Washfountains WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805 WF2808 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Connect Valve and Tubing for Sectional Air Metering Activation Flush supply lines before making connections.
  • Page 21 Air Metering Activation - Non-Sectional Circular Washfountains WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805 WF2808 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Connect Valve and Tubing for Sectional Air Metering Control (Cont...) Connect the stop-strainer-check Bowl, tubing and supplies not shown for clarity.
  • Page 22 Air Metering Activation - Non-Sectional Circular Washfountains WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805 WF2808 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Turn on Water, Test and Adjust Unit 4 pushbutton AST valve assembly shown.
  • Page 23 Air Metering Activation - Non-Sectional Circular Washfountains WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805 WF2808 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Metering Air Valve Maintenance Water Tube Connector The air valve timer is located next to the tube connector on the air valve body.
  • Page 24 Air Metering Activation - Non-Sectional Circular Washfountains WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805 WF2808 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com AST4 Valve Repair Kits 5/16" Compression Nut (sold separately,...
  • Page 25 Air Metering Activation - Non-Sectional Circular Washfountains WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805 WF2808 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Metering Air Valve Trouleshooting Problem Cause Solution Valve will not shut off.
  • Page 26 Air Metering Activation - Non-Sectional Circular Washfountains WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805 WF2808 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Troubleshooting – Metering Air Valve Turn off water supplies to the unit before troubleshooting.
