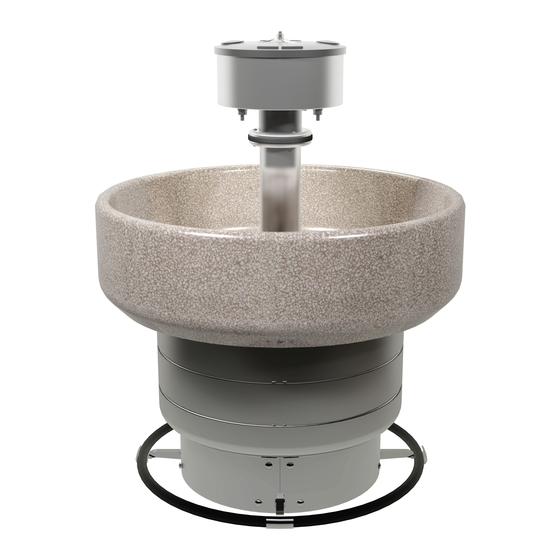

Bradley WF2500 Series Installation Manual

Terreon classic, terrazzo, stainless steel, bradstone, terreon deep bowl, terreon deep bowl
Hide thumbs Also See for WF2500 Series:
Table of Contents

Advertisement

Quick Links

WF2605
WF3203
Make sure that all water supply lines have been flushed and then completely turned off before beginning
isntallation. Debris in the supply lines can cause valves to malfunction.
Turn OFF electrical supply to the unit before installation.
Main water supply to the unit should be "ON" at all times.
Read this installation manual completely to ensure proper installation, then file it with the owner or
maintenance department. Compliance and conformity to drain requirements and other local codes and
ordinances is the responsibility of the installer.
Separate parts from packaging and make sure all parts are accounted for before discarding any packaging
material. If any parts are missing, do not begin installation until you obtain the missing parts.
Product warranties and parts information may also be found under "Products" on our web site at bradleycorp.com.
215-1833-10 Rev. A; ECN 17-00-006B
© 2017 Bradley
Page 1 of 2
11/21/2017
Installation
WF2500 Series Terreon Classic
WF2600 Series Terrazzo
WF2700 Series Stainless Steel
WF2800 Series Bradstone
WF3200 Series Terreon Deep Bowl
TDB3100 Series Terreon Deep Bowl
WARNING
NOTICE
IMPORTANT
P.O. Box 309
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
+1 262 251 6000
bradleycorp.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WF2500 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bradley WF2500 Series

Summary of Contents for Bradley WF2500 Series

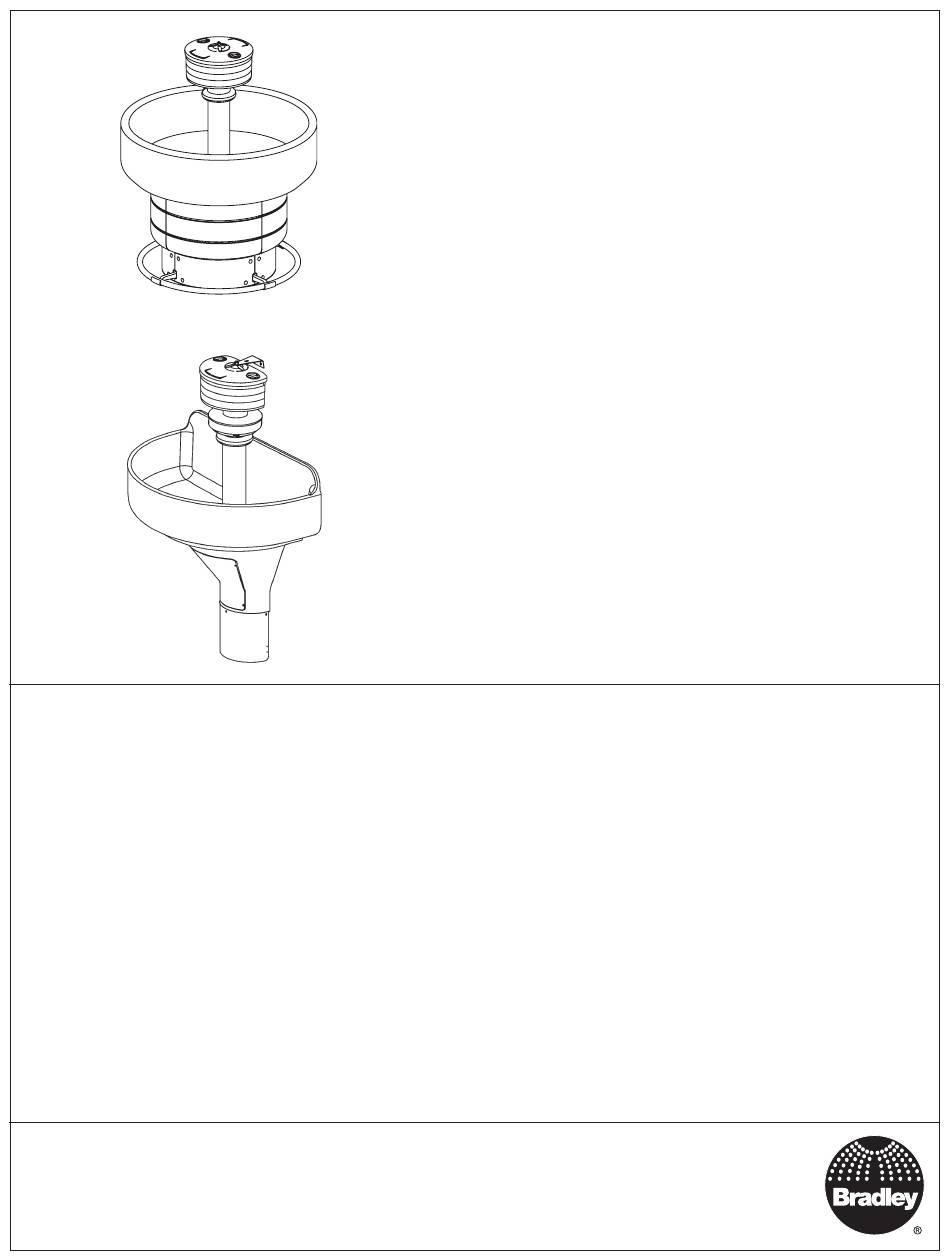

  • Page 1 Installation WF2500 Series Terreon Classic WF2600 Series Terrazzo WF2605 WF2700 Series Stainless Steel WF2800 Series Bradstone WF3200 Series Terreon Deep Bowl TDB3100 Series Terreon Deep Bowl WF3203 WARNING Make sure that all water supply lines have been flushed and then completely turned off before beginning isntallation.

  • Page 2: Cleaning And Maintenance

    Cleaning and Maintenance WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Cleaning and Maintenance for Terreon ® Material Description: Terreon is a densified solid surface material composed of bio based resin and is resistant to chemicals, stains, burns and impact.
  • Page 3 Cleaning and Maintenance WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Cleaning and Maintenance for Terrazzo Material Description: Terrazzo is a mosaic-looking natural stone and concrete material polished to a high gloss and sealed with clear polyurethane resin for long lasting beauty.
  • Page 4 Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2605, WF2608, WF2705, WF2708 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com This document describes installation of washfountain bowl and pedestal only. Some optional equipment and accessories are shown for clarity.

  • Page 5: Circular Washfountain Dimensions

    Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2605, WF2608, WF2705, WF2708 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Circular Washfountain Dimensions (mm) Approximate Dimensions in Inches* Material Size Terrazzo 54"...
  • Page 6 Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2605, WF2608, WF2705, WF2708 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Length of Tie Pipe Required for Vent Through Washfountain Column...

  • Page 7: Rough-In Specifications

    Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2605, WF2608, WF2705, WF2708 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com (mm) Rough-In Specifications Type A 1" NPT Supplies Through Floor: Stub Up 2-1/2"...
  • Page 8 Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2605, WF2608, WF2705, WF2708 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com (mm) Rough-In Specifications Type O 1" NPT Supplies From Above Must Off-line vent with Reduce to 1/2"...

  • Page 9: Installing The Drain

    Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2605, WF2608, WF2705, WF2708 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Installing the Drain All piping shown in dotted lines Rough in supply and drain piping as to be supplied by installer.
  • Page 10 Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2605, WF2608, WF2705, WF2708 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Assembling the Pedestal (with Foot Control) Assemble the legs and scuff base Add the foot levers and operating cross panels with the 5/16"...
  • Page 11 Bowl and Pedestal Assembly (Stainless Steel & Terrazzo) WF2605, WF2608, WF2705, WF2708 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Bowl Assembly and Mounting NOTICE! The pedestal must be level when secured to floor for proper drainage.

  • Page 12: Parts List

    Sprayheads WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Sectional Sprayhead Sectional Sprayhead (Circular Shown - S34-038, Semi-Circular Similar - S34-037) Connector 1/4" NPT x 1/4" Tube (169-974) 1/4"...
  • Page 13 Sprayheads WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Non-Sectional Sprayhead Repair kit does not include sprayhead grommet. Order as a separate item.
  • Page 14 Sprayheads WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Sprayhead Troubleshooting Problem Cause Solution Water splashes over Foreign matter has reduced the size of Clean the sprayhead: the rim of the bowl.

  • Page 15: Pre-Installation Information

    ® WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805 & WF2808 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Supplies Required by Installer • 110VAC GFI power source for 120VAC/12VDC plug in adapter •...
  • Page 16 Activation Modules - Non-Sectional Circular Washfountains ® WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805 & WF2808 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Assemble TouchTime – A and O Units (A Shown) ®...
  • Page 17 Activation Modules - Non-Sectional Circular Washfountains ® WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805 & WF2808 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Assemble TouchTime – A and O Units (O Shown) (cont...) ®...
  • Page 18 Activation Modules - Non-Sectional Circular Washfountains ® WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805 & WF2808 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Assemble TouchTime – B and H Units (B Shown) ®...
  • Page 19 Activation Modules - Non-Sectional Circular Washfountains ® WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805 & WF2808 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Assemble TouchTime – B and H Units (H Shown) (cont...) ®...
  • Page 20 ® WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805 & WF2808 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Connect Valve and Tubing for Non-Sectional TouchTime Control Flush supply lines before making connections.
  • Page 21 ® WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805 & WF2808 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Connect Valve and Tubing for Non-Sectional TouchTime Control (Cont...) Bowl, tubing and supplies not shown for clarity.
  • Page 22 ® WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805 & WF2808 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Electrical and Supply Connections WARNING The TouchTime activation must be connected with a 12V DC plug in adapter. Connections to 110 VAC can cause personal injury and will result in damage to the electronics.
  • Page 23 ® WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805 & WF2808 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Adjusting the TouchTime Module The TouchTime module is set at the factory with the selector switch in position 5.
  • Page 24 Activation Modules - Non-Sectional Circular Washfountains ® WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805 & WF2808 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com TouchTime Module Components Wires not shown for clarity.
