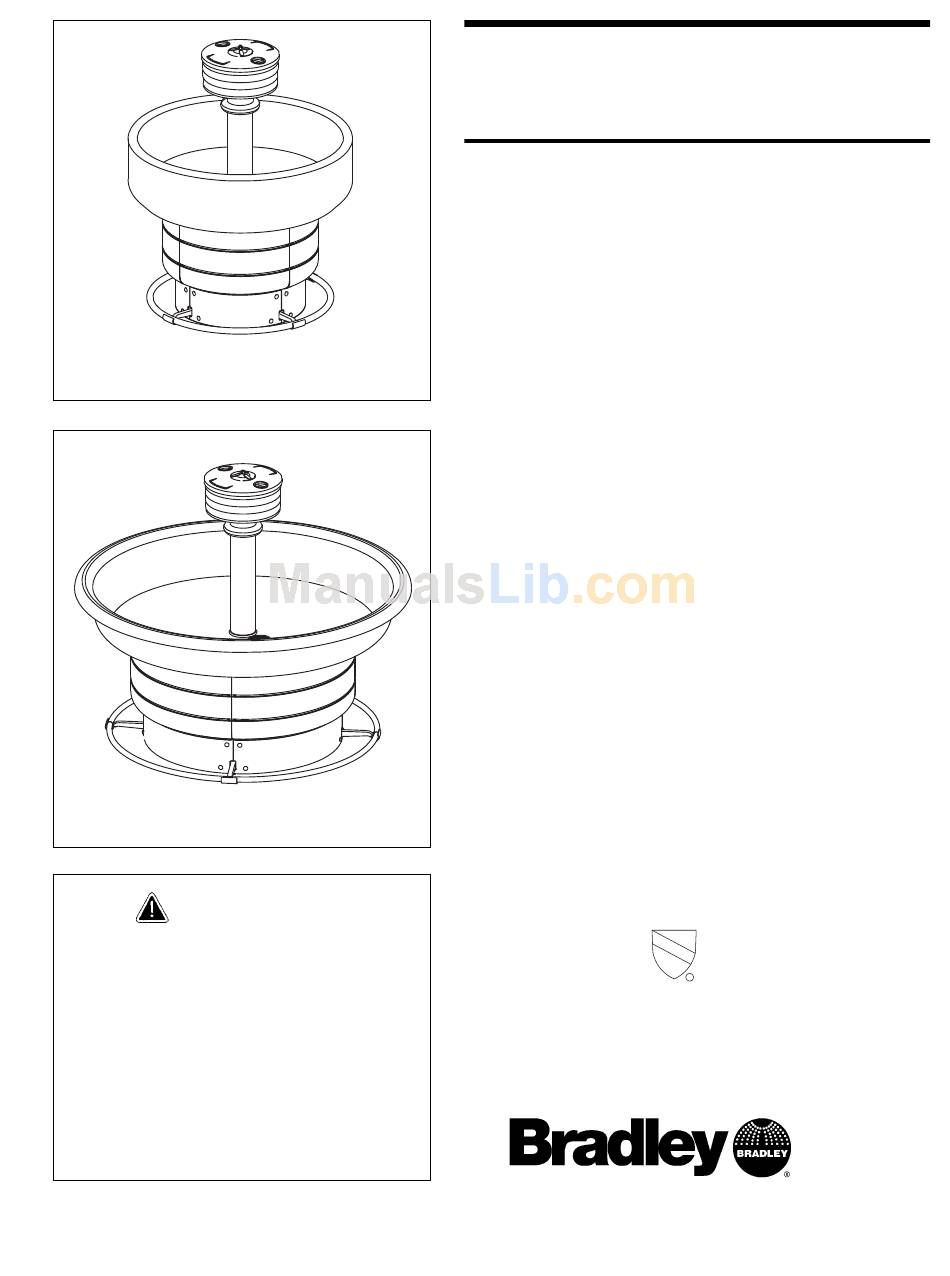

Bradley WF2605 Installation Instructions Manual

Bradley WF2605 Installation Instructions Manual

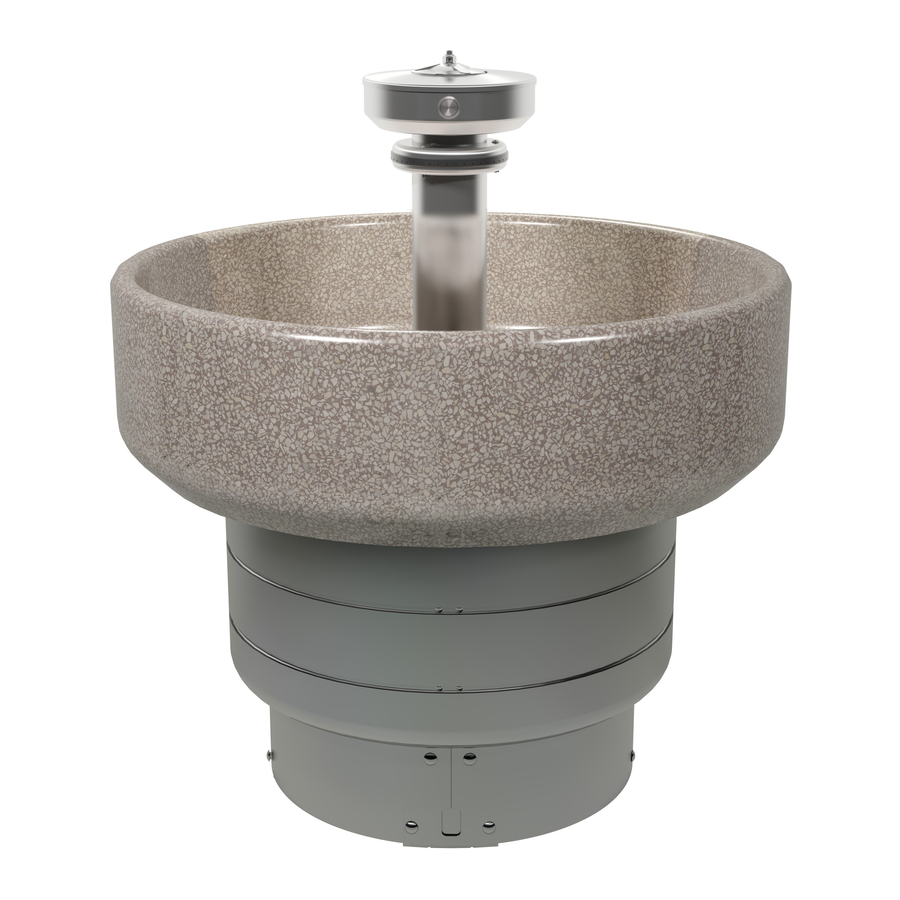

Classic circular 36"/54" washfountain with foot control
Hide thumbs Also See for WF2605:

Advertisement

WF2605
WF2708
IMPORTANT
Read this entire installation manual
to ensure proper installation.
Flush all the water supply lines
before making connections.
Main water supply to the unit
should be ON at all times.
This installation manual and parts
list should be filed by the owner's
maintenance department.
215-603 Rev. M; EN 06-915B
© 2007 Bradley Corporation
Page 1 of 28
4/6/2007
Installation
Instructions
WF2605, WF2608 Terrazzo
WF2705, WF2708 Stainless Steel
Classic Circular 36"/54"
Washfountain with Foot
Control

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . . . . . 2
Circular Washfountain Dimensions . . . . . . . . . . 3-4
Rough-In Specifications . . . . . . . . . . . . . . . . . . . 5-6
Drain Rough-In Specifications . . . . . . . . . . . . . . . .7
Pedestal Mounting and Assembly . . . . . . . . . . . . .8
Drain Spud Installation . . . . . . . . . . . . . . . . . . . . .10
Supplies w/Optional Soap Dispenser (A/O drains) . .11-12
Supplies w/Optional Soap Dispenser (B/H drains) . .13-14
Installing the Valve Assembly . . . . . . . . . . . . . . .15
Installing the Operating Rod . . . . . . . . . . . . . . . .16
Check Valve Troubleshooting . . . . . . . . . . . . . . .17
Manual Mixing Valve Repair Parts . . . . . . . . . . .22
Volume Control Valve Repair Parts . . . . . . . . . . .23
UPC Certified
P.O. Box 309, Menomonee Falls, WI 53052-0309
TEL. 1-800-BRADLEY
http://www.bradleycorp.com
U P
C
C
R
FAX 262-251-5817

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WF2605 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bradley WF2605

  • Page 1: Table Of Contents

    215-603 Rev. M; EN 06-915B © 2007 Bradley Corporation Page 1 of 28 4/6/2007 Installation Instructions WF2605, WF2608 Terrazzo WF2705, WF2708 Stainless Steel Classic Circular 36"/54" Washfountain with Foot Control Table of Contents Pre-Installation Information ....2 Circular Washfountain Dimensions .
  • Page 2: Pre-Installation Information

    Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Pre-Installation Information Operation Stepping on the foot rail allows the user to activate a valve starting the flow of water. Supplies required for installation: • (8) 1/2" lag bolts, screws or other fasteners to anchor washfountain pedestal to floor •...
  • Page 3: Circular Washfountain Dimensions

    Juvenile height (Terrazzo only): Subtract 4" from dimensions A through E for juvenile height. Bradley Corporation • 215-603 Rev. M; EN 06-915B Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel 29-1/4 39-1/8 47-5/8...
  • Page 4 Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Length of Tie Pipe Required for Vent Through Washfountain Column Type 54" Less Soap Dispenser 36" Less Soap Dispenser 54" With Soap Dispenser 36" With Soap Dispenser 54"...
  • Page 5: Rough-In Specifications

    4. Check valve inlets are 1/2" NPT. 5. Dimensions shown in parentheses are millimeters. Bradley Corporation • 215-603 Rev. M; EN 06-915B Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel TOP VIEW above floor 7-5/8"...
  • Page 6 Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Rough-In Specifications Type O Off-line vent with supplies from above 1" NPT supplies from above must reduce to 1/2 nom. copper tube on these centers to pass thru washfountain 7/8"...
  • Page 7: Installation Instructions

    36" Stainless Steel 36" Bradley Corporation • 215-603 Rev. M; EN 06-915B Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Vent Tie Pipe (Supplied by Installer) n t e r l i n...
  • Page 8: Step 2: Assembling The Pedestal

    Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Installation Instructions continued . . . Step 2: Assembling the Pedestal 1. Assemble the leg and scuff base panels with the 5/16” carriage bolts and nuts provided (Figure 2).
  • Page 9: Bowl And Pedestal Assembly And Mounting

    4. Anchor the pedestal assembly to the floor with suitable anchors/fasteners (supplied by installer). Bradley Corporation • 215-603 Rev. M; EN 06-915B Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Figure 5 TOP VIEW OF PEDESTAL ASSEMBLY...
  • Page 10: Drain Spud Installation

    Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Installation Instructions continued . . . Step 4: Installing drain spud in bowl NOTE: Seal between drain spud and drain hole with plumber’s putty (supplied by installer).
  • Page 11 (see Figure 8). 2. Continue installation with Step 6 on Page 15. Bradley Corporation • 215-603 Rev. M; EN 06-915B Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel 4/6/2007...
  • Page 12 Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Acorn Nut (110-052A) & Set Screw (160-093) Dispenser Cover Soap Dispenser Lid Soap Dispenser Upper Tie Bar (159-009A) (notched at corners) Support Tube (S57-005, 54") (S57-006, 36")
  • Page 13 Connect the vent pipe to the vent through the ceiling with the pipe union. b. Continue installation with Step 6 on Page 15. Bradley Corporation • 215-603 Rev. M; EN 06-915B Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel 4/6/2007...
  • Page 14 Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Installation Instructions continued . . . Cap Screw (160-108) 1-1/2" Vent Pipe Soap Dispenser Support Tube (S57-005, 54") (S57-006, 36") Sprayhead Supply Pipe (3/8") Gasket...
  • Page 15: Installing The Valve Assembly

    Model Number Standard Height Juvenile Height Bradley Corporation • 215-603 Rev. M; EN 06-915B Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel To Supply Pipe Tailpiece STD: 2" Long (113-852) (129-009) JUV: Close (113-006AL)
  • Page 16: Installing The Operating Rod

    Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Installation Instructions continued . . . Step 7: Installing the Operating Rod 1. Insert the operating rod in the operating rod lever and then into the foot lever (see Figure 11).
  • Page 17: Soap Valve Maintenance And Repair Parts

    3. Open the stops and clean the strainers, if necessary. 4. Inspect mixing valve for proper installation (see Vernatherm valve on page 24). Bradley Corporation • 215-603 Rev. M; EN 06-915B Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel 4/6/2007...
  • Page 18: Parts List

    Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Soap Valve - Liquid - S09-007S This valve delivers a measured amount of soap with each upward stroke. The soap dispenser has been standard on...
  • Page 19: Stop, Strainer And Check Valve Repair Parts

    Spring S21-015 Check Assembly S45-050 Repair Kit Includes these parts Bradley Corporation • 215-603 Rev. M; EN 06-915B Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Strainer Parts List 1/2" NPT Item Check...
  • Page 20: Sprayhead Troubleshooting/Repair Parts

    Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Sprayhead Troubleshooting and Repair Parts Problem: Water splashes over the rim of the bowl. Cause: Foreign matter has reduced the size of the sprayhead slots, causing greater pressure at the open slots.
  • Page 21: Foot Valve Breakdown And Repair Kit

    VALVE SEAT 125-001Y DIAPHRAGM 124-001V WASHER, 1-3/8" x 5/8" 130-033 KEY, VALVE SEAT S45-125 LUBRICANT (not shown) Bradley Corporation • 215-603 Rev. M; EN 06-915B Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel 4/6/2007...
  • Page 22: Manual Mixing Valve Repair Parts

    Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Manual Mixing Valve Repair Parts Manual Mixing Valve Parts List Item Part No. Description 118-034 Mixing Valve Body - Brass 118-034A Mixing Valve Body - Chrome...
  • Page 23: Volume Control Valve Repair Parts

    119-060 Valve Core 118-033 Valve Body 118-033B Valve Body Bradley Corporation • 215-603 Rev. M; EN 06-915B Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Brass Valve S02-045 Description — — Repair Kit S45-198 —...
  • Page 24: Vernathermâ„¢ Mixing Valve Maintenance

    Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Adjusting the Vernatherm Thermostatic Mixing Valve NOTE: This valve is NOT factory preset. Upon installation, the temperature of this valve must be checked and adjusted to ensure delivery of a safe water temperature. Water in excess of 110°F (43°C) may cause scalding.
  • Page 25 Cause: Valve temperature is not properly set. Solution: "Adjust the temperature" per steps on Page 24. Bradley Corporation • 215-603 Rev. M; EN 06-915B Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel 4/6/2007...
  • Page 26 Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Vernatherm Thermostatic Mixing Valve (S01-525) Parts List — Repair Kit S65-259 Parts List S65-259 Valve Repair Kit Item Part No. Description S39-413 Thermostat 125-001BX O-Ring...
  • Page 27: Cleaning And Maintenance Instructions

    IMPORTANT: Do not put drain cleaners in bowl. Damage to bowl will result. Bradley Corporation • 215-603 Rev. M; EN 06-915B Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel 4/6/2007...
  • Page 28 Classic Circular 36"/54" Washfountain with Foot Control WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Cleaning and Maintenance Instructions for Stainless Steel Material Description: Stainless steel is extremely durable, and maintenance is simple and inexpensive. Proper care, particularly under corrosive conditions, is essential. Always start with the simplest solution and work your way toward the more complicated.
