Bradley Bradstone WF2800 Series Installation Manual
Hide thumbs
Also See for Bradstone WF2800 Series:
- Installation manual (28 pages) ,
- Installation instructions manual (25 pages) ,
- Installation manual (26 pages)
Table of Contents
Advertisement
Quick Links
WF2605
WF3203
For questions regarding the operation, installation or maintenance of this product, visit bradleycorp.com
or call 800.BRADLEY (800.272.3539).
Product warranties and parts information may also be found under "Products" on our website at bradleycorp.com.
Separate parts from packaging and make sure all parts are accounted for before discarding any packaging material.
If any parts are missing, do not begin installation until you obtain the missing parts.
215-1833-10 Rev. B; ECN 18-00-009
© 2018 Bradley
Page 1 of 4
7/19/2018

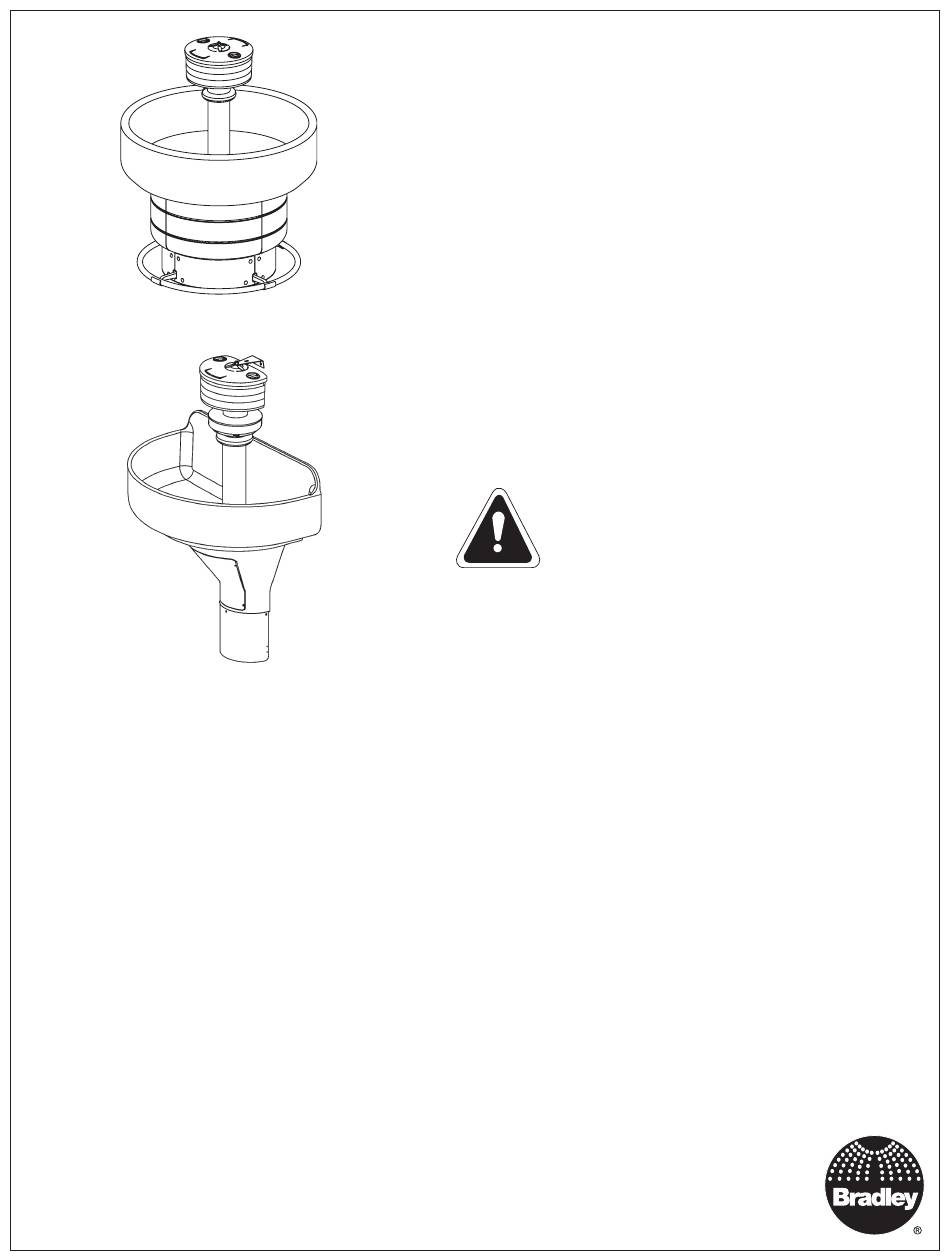

Installation
WF2500 Series Terreon Classic
WF2600 Series Terrazzo
WF2700 Series Stainless Steel
WF2800 Series Bradstone
WF3200 Series Terreon Deep Bowl
TDB3100 Series Terreon Deep Bowl
Read the instructions in this manual before
beginning installation. Save these instructions
and refer to them for inspection, maintenance
and troubleshooting information.
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
P.O. Box 309
+1 262 251 6000
bradleycorp.com
Advertisement
Table of Contents
Related Manuals for Bradley Bradstone WF2800 Series
Summary of Contents for Bradley Bradstone WF2800 Series
- Page 1 If any parts are missing, do not begin installation until you obtain the missing parts. P.O. Box 309 Menomonee Falls, WI 53052 USA 215-1833-10 Rev. B; ECN 18-00-009 800 BRADLEY (800 272 3539) © 2018 Bradley +1 262 251 6000 Page 1 of 4 7/19/2018 bradleycorp.com...
-
Page 2: Cleaning And Maintenance
Cleaning and Maintenance WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Safety Information Installation Turn OFF electrical supply to the unit before installation. - Page 3 Cleaning and Maintenance WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Cleaning and Maintenance for Terreon ® Material Description: Terreon is a densified solid surface material composed of bio based resin and is resistant to chemicals, stains, burns and impact.
-
Page 4: Brand Names
Cleaning and Maintenance WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Cleaning and Maintenance for Terrazzo Material Description: Terrazzo is a mosaic-looking natural stone and concrete material polished to a high gloss and sealed with clear polyurethane resin for long lasting beauty. - Page 5 Bowl and Pedestal Assembly (Terrazzo) WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com This document describes installation of washfountain bowl and pedestal only. Some optional equipment and accessories are shown for clarity. For activation, optional equipment and accessory installation, see installation documents included with those parts.
-
Page 6: Circular Washfountain Dimensions
Bowl and Pedestal Assembly (Terrazzo) WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Circular Washfountain Dimensions (mm) Adjust to Towel Dispenser Mounting Holes 6" (152) Approximate Dimensions Inches 29-1/4... -
Page 7: Rough-In Specifications
Bowl and Pedestal Assembly (Terrazzo) WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Rough-In Specifications Type A Type O Off-line vent with supplies from below Off-line vent with supplies from above 12-3/4"... -
Page 8: Side View
Bowl and Pedestal Assembly (Terrazzo) WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Rough-In Specifications Type B Type O Centrally rising vent with supplies from above Centrally rising vent with supplies from below 18-1/2"... -
Page 9: Installing The Drain
Bowl and Pedestal Assembly (Terrazzo) WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Installing the Drain All piping shown in dotted lines Rough in supply and drain piping as to be supplied by installer. - Page 10 Bowl and Pedestal Assembly (Terrazzo) WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Assembling the Pedestal (with Foot Control) Assemble the legs and scuff base Add the foot levers and operating cross panels with the 5/16"...
- Page 11 Bowl and Pedestal Assembly (Terrazzo) WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Bowl Assembly and Mounting NOTICE! The pedestal must be level when secured to floor for proper drainage.
- Page 12 Sprayheads WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Non-Sectional Sprayhead Repair kit does not include sprayhead grommet. Order as a separate item.
- Page 13 Sprayheads WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Sprayhead Troubleshooting Problem Cause Solution Water splashes over Foreign matter has reduced the size of Clean the sprayhead: the rim of the bowl.
-
Page 14: Pre-Installation Information
Activation Modules - Non-Sectional Corner Washfountains ® WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Supplies Required by Installer • 110VAC GFI power source for 120VAC/12VDC plug in adapter •... - Page 15 TouchTime Activation Modules - Non-Sectional Corner Washfountains ® WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Assemble TouchTime – A and O Units (A Shown) ® Install hemmed end (not sharp end) of support tube with gasket onto bowl.
- Page 16 TouchTime Activation Modules - Non-Sectional Corner Washfountains ® WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Assemble TouchTime – A and O Units (O Shown) ® Unit with "O" Drain and...
- Page 17 TouchTime Activation Modules - Non-Sectional Corner Washfountains ® WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Assemble TouchTime – B and H Units (B Shown) ® Type "H" Drain...
- Page 18 TouchTime Activation Modules - Non-Sectional Corner Washfountains ® WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Assemble TouchTime – B and H Units (H Shown) ® Unit with "H" Drain and...
- Page 19 Activation Modules - Non-Sectional Corner Washfountains ® WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Connect Valve and Tubing for Non-Sectional TouchTime Control Connect 1/2" OD Supply Tubing from...
- Page 20 Activation Modules - Non-Sectional Corner Washfountains ® WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Connect Valve and Tubing for Non-Sectional TouchTime Control (Cont...) Bowl, tubing and supplies not shown for clarity.
- Page 21 Activation Modules - Non-Sectional Corner Washfountains ® WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Electrical and Supply Connections WARNING The TouchTime activation must be connected with a 12V DC plug in adapter. Connections to 110 VAC can cause personal injury and will result in damage to the electronics.
- Page 22 Activation Modules - Non-Sectional Corner Washfountains ® WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Adjusting the TouchTime Module The TouchTime module is set at the factory with the selector switch in position 5.
- Page 23 TouchTime Activation Modules - Non-Sectional Corner Washfountains ® WF2613 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com TouchTime Module Components Wires not shown for clarity. Item Qty. Part No. Description...
