Bradley WF2608 Installation Manual
  1. Manuals
  2. Brands
  3. Bradley Manuals
  4. Bathroom Fixtures
  5. WF2608
  6. Installation manual

Bradley WF2608 Installation Manual

Hide thumbs Also See for WF2608:

Advertisement

Quick Links

Download this manual
WF2605
WF3203
For questions regarding the operation, installation or maintenance of this product, visit bradleycorp.com
or call 800.BRADLEY (800.272.3539).
Product warranties and parts information may also be found under "Products" on our website at bradleycorp.com.
Separate parts from packaging and make sure all parts are accounted for before discarding any packaging material.
If any parts are missing, do not begin installation until you obtain the missing parts.
215-1833-10 Rev. B; ECN 18-00-009
© 2018 Bradley
Page 1 of 4
7/19/2018
Installation
WF2500 Series Terreon Classic
WF2600 Series Terrazzo
WF2700 Series Stainless Steel
WF2800 Series Bradstone
WF3200 Series Terreon Deep Bowl
TDB3100 Series Terreon Deep Bowl
Read the instructions in this manual before
beginning installation. Save these instructions
and refer to them for inspection, maintenance
and troubleshooting information.
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
P.O. Box 309
+1 262 251 6000
bradleycorp.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the WF2608 and is the answer not in the manual?

Questions and answers

Related Manuals for Bradley WF2608

Summary of Contents for Bradley WF2608

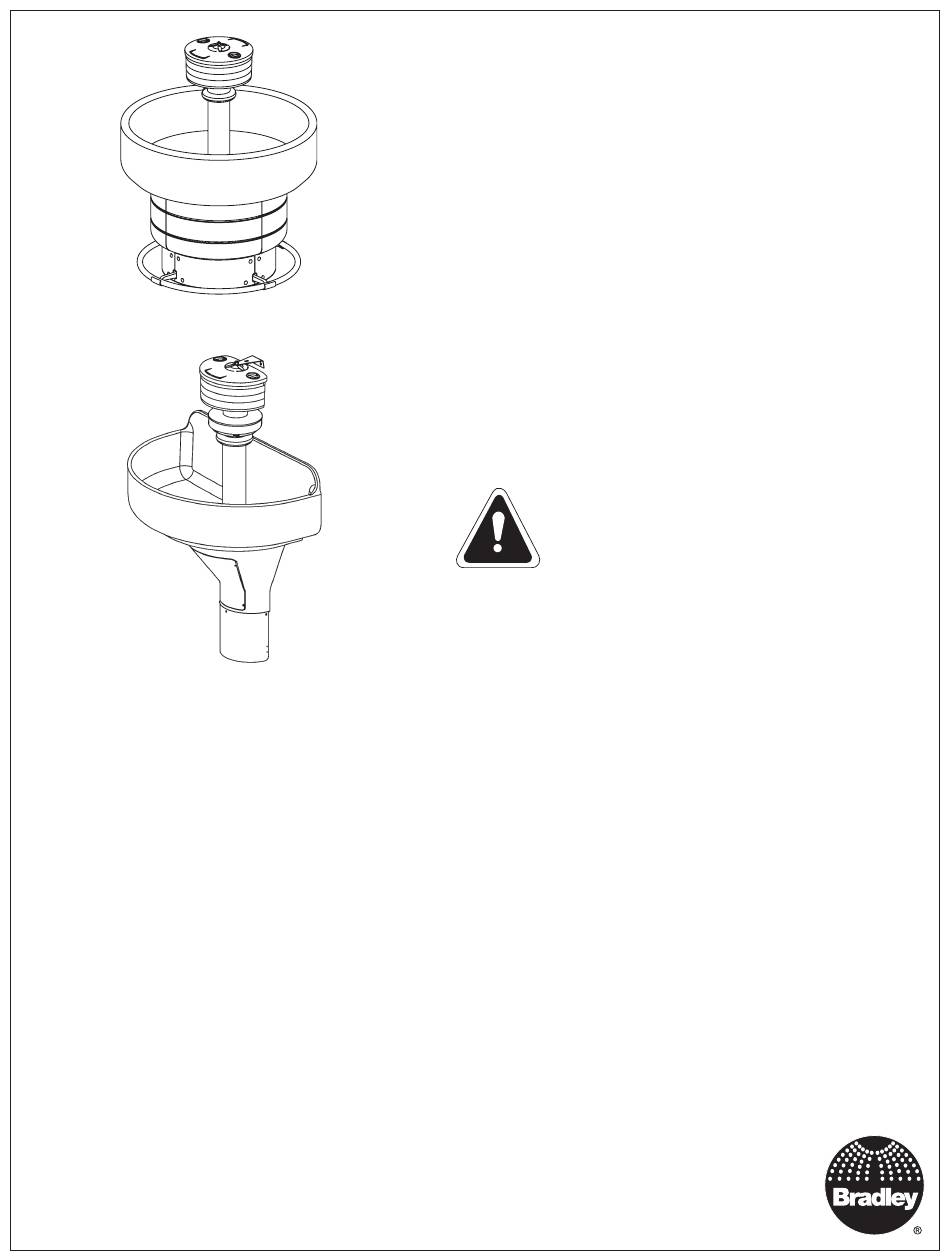

  • Page 1 If any parts are missing, do not begin installation until you obtain the missing parts. P.O. Box 309 Menomonee Falls, WI 53052 USA 215-1833-10 Rev. B; ECN 18-00-009 800 BRADLEY (800 272 3539) © 2018 Bradley +1 262 251 6000 Page 1 of 4 7/19/2018 bradleycorp.com...

  • Page 2: Cleaning And Maintenance

    Cleaning and Maintenance WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Safety Information Installation Turn OFF electrical supply to the unit before installation.
  • Page 3 Cleaning and Maintenance WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Cleaning and Maintenance for Terreon ® Material Description: Terreon is a densified solid surface material composed of bio based resin and is resistant to chemicals, stains, burns and impact.
  • Page 4 Cleaning and Maintenance WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Cleaning and Maintenance for Terrazzo Material Description: Terrazzo is a mosaic-looking natural stone and concrete material polished to a high gloss and sealed with clear polyurethane resin for long lasting beauty.
  • Page 5 Bowl and Pedestal Assembly TDB3103, WF3203 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com This document describes installation of washfountain bowl and pedestal only. Some optional equipment and accessories are shown for clarity. For activation, optional equipment and accessory installation, see installation documents included with those parts.
  • Page 6 Bowl and Pedestal Assembly TDB3103, WF3203 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Semi-Circular Washfountain Dimensions (Optional Equipment Shown) 22-3/4" Model TDB3103 (577) Top View 36" Semi-circular - side view 14-1/16"...
  • Page 7 Bowl and Pedestal Assembly TDB3103, WF3203 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Semi-Circular Washfountain Dimensions Model WF3203 Top View 36" Semi-circular - side view 22-3/4" (577) 6" 13-3/8"...
  • Page 8 Bowl and Pedestal Assembly TDB3103, WF3203 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com (mm) Semi-Circular Washfountain Rough-Ins 2" (51) 1" (25) 1-1/2" NPT Drain from the Wall Location of Electrical Outlet (Check...

  • Page 9: Rough-In Specifications

    Bowl and Pedestal Assembly TDB3103, WF3203 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Rough-In Specifications (mm) Drain P-Trap and supplies by others. Type A Drain 1/2" Nominal Copper 1" (25)
  • Page 10 Bowl and Pedestal Assembly TDB3103, WF3203 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Rough-in Drain and Supplies A location to plug in the 24 VAC Tramsformer is Rough in supply and drain piping required.
  • Page 11 Bowl and Pedestal Assembly TDB3103, WF3203 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Installing Drain Spud in Bowl Seal between drain spud and drain hole with Secure drain spud with lock nut and plumber’s putty (supplied by installer).
  • Page 12 Bowl and Pedestal Assembly TDB3103, WF3203 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Cleaning and Maintenance for Terreon ® Material Description: Terreon is a densified solid surface material composed of bio based resin and is resistant to chemicals, stains, burns and impact.
  • Page 13 Sprayheads WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Non-Sectional Sprayhead Repair kit does not include sprayhead grommet. Order as a separate item.
  • Page 14 Sprayheads WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Sprayhead Troubleshooting Problem Cause Solution Water splashes over Foreign matter has reduced the size of Clean the sprayhead: the rim of the bowl.

  • Page 15: Pre-Installation Information

    ® TDB3103, WF3203, TDB3104, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Supplies Required by Installer • (4) 1/2" lag bolts, screws or other fasteners to anchor washfountain pedestal •...
  • Page 16 Activation Modules - Non-Sectional Semi-Circular Washfountains ® TDB3103, WF3203, TDB3104, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Assemble TouchTime – A and O Units without Tie Pipe Option (A Shown) ®...
  • Page 17 Activation Modules - Non-Sectional Semi-Circular Washfountains ® TDB3103, WF3203, TDB3104, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Assemble TouchTime – A and O Units without Tie Pipe Option (A Shown) ®...
  • Page 18 Activation Modules - Non-Sectional Semi-Circular Washfountains ® TDB3103, WF3203, TDB3104, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Assemble TouchTime – B and H Units with Tie Pipe Option (B Shown) ®...
  • Page 19 Activation Modules - Non-Sectional Semi-Circular Washfountains ® TDB3103, WF3203, TDB3104, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Assemble TouchTime – B and H Units with Tie Pipe Option (B Shown) ®...
  • Page 20 Activation Modules - Non-Sectional Semi-Circular Washfountains ® TDB3103, WF3203, TDB3104, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Connect Valve and Tubing for Non-Sectional TouchTime Control Flush supply lines before making connections.
  • Page 21 ® TDB3103, WF3203, TDB3104, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Connect Valve and Tubing for Non-Sectional TouchTime Control (Cont...) Bowl, tubing and supplies not shown for clarity.
  • Page 22 ® TDB3103, WF3203, TDB3104, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Electrical and Supply Connections WARNING The TouchTime activation must be connected with a 12V DC plug in adapter. Connections to 110 VAC can cause personal injury and will result in damage to the electronics.
  • Page 23 Activation Modules - Non-Sectional Semi-Circular Washfountains ® TDB3103, WF3203, TDB3104, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Adjusting the TouchTime Module The TouchTime module is set at the factory with the selector switch in position 5.
  • Page 24 TouchTime Activation Modules - Non-Sectional Semi-Circular Washfountains ® TDB3103, WF3203, TDB3104, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com TouchTime Module Components Wires not shown for clarity. Item Qty.

  • Page 25: Thermostatic Mixing Valve Troubleshooting

    ® TDB3103, WF3203, TDB3104, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Thermostatic Mixing Valve Troubleshooting Before attempting to troubleshoot the valve or disassemble the components, check for the following conditions: •...
