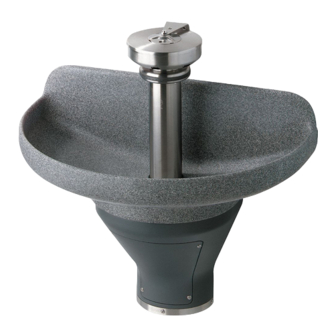

36" semi-circular deep bowl washfountain with air metering control, extra height 36" semicircular classic washfountain with 9" deep bowl and air metering control
Hide thumbs Also See for Terreon TDB3103:
Table of Contents

Advertisement

Quick Links

Download this manual
TDB3103
WF3203
215-1479 Rev. A; EN 02-089
Page 1 of 24
Installation
Instructions
TDB3103
Terreon ® 36" Semi-Circular
Deep Bowl Washfountain with Air
Metering Control
WF3203
Terreon ® Extra Height 36" Semi-
Circular Classic Washfountain with
9" Deep Bowl and Air Metering
Control

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . . . . . 2
Washfountain Rough-Ins . . . . . . . . . . . . . . . . . . 5-7
Installation Instructions . . . . . . . . . . . . . . . . . . .7-12
Air Valve Troubleshooting . . . . . . . . . . . . . . . . . .13
Terreon® Cleaning/Maintenance . . . . . . . . . . . . .14
Manual Mixing Valve Repair Parts . . . . . . . . . . .20
Metering Air Valve Maintenance . . . . . . . . . . . . .23
IMPORTANT
Main water supply to the unit
should be ON at all times.
This installation manual and parts
list should be filed by the owner's
maintenance department.
P.O. Box 309, Menomonee Falls, WI 53052-0309
TEL. 1-800-BRADLEY
http://www.bradleycorp.com
FAX 262-251-5817

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Terreon TDB3103 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bradley Terreon TDB3103

Summary of Contents for Bradley Terreon TDB3103

  • Page 1: Table Of Contents

    ON at all times. This installation manual and parts list should be filed by the owner’s maintenance department. WF3203 P.O. Box 309, Menomonee Falls, WI 53052-0309 TEL. 1-800-BRADLEY FAX 262-251-5817 215-1479 Rev. A; EN 02-089 http://www.bradleycorp.com Page 1 of 24...

  • Page 2: Pre-Installation Information

    1. This warranty is limited to replacing or repairing, at our option, transportation charges prepaid by the purchaser, any Bradley unit or part thereof which our inspection shall show to have been defective within the limitations of this warranty.

  • Page 3: Model Tdb3103 Washfountain Dimensions

    TAS Ages 11 thru 14 or 15, Subtract 2" Grades 6 thru 8 or 9 30" TAS Ages 4 thru 10 or 11, Subtract 4" Grades Pre-K thru 5 or 6 & Proposed Juvenile Height ADA Bradley Corporation • 215-1479 Rev. A; EN 02-089...

  • Page 4: Model Wf3203 Washfountain Dimensions

    TAS Ages 11 thru 14 or 15, Subtract 2" Grades 6 thru 8 or 9 30" TAS Ages 4 thru 10 or 11, Subtract 4" Grades Pre-K thru 5 or 6 & Proposed Juvenile Height ADA Bradley Corporation • 215-1479 Rev. A; EN 02-089...

  • Page 5: Washfountain Rough-Ins

    TAS Ages 11 thru 14 or 15, Grades 6 thru 8 or 9 Subtract 2" 30" TAS Ages 4 thru 10 or 11, Grades Pre-K thru 5 or 6 Subtract 4" & Proposed Juvenile Height ADA Bradley Corporation • 215-1479 Rev. A; EN 02-089...
  • Page 6 Proposed Juvenile Height ADA NOTE: Supply lines for one to two washfountains should be 1"; for three Figure 2b washfountains, 1-1/4". For more than three washfountains, pipe sizes should be increased proportionately. Bradley Corporation • 215-1479 Rev. A; EN 02-089...

  • Page 7: Installation Instructions

    6. Using 1/4" wing nuts and washers, secure the bowl to the pedestal, three places (see Figure 4). CAUTION: BOWL SURFACE IS SMOOTH. APPROXIMATE WEIGHT OF BOWL IS 75 POUNDS. HANDLE WITH CARE! Figure 4 Bradley Corporation • 215-1479 Rev. A; EN 02-089...
  • Page 8 Tighten nut to secure tube to fitting (make sure nut is securely tightened). • If connector leaks, reseat tubing according to above procedure. If leaking persists, replace male connector, or call your Bradley representative for assistance. 4. Connect P-Trap (supplied by installer) to tailpiece and drain outlet.
  • Page 9 8. Turn on the supplies and check piping installation for leaks. 9. Clean sprayhead if necessary. See page 17 for sprayhead troubleshooting. Adjust volume control valve, if necessary, to control the flow of water. Bradley Corporation • 215-1479 Rev. A; EN 02-089...
  • Page 10 Part no. varies with color of bowl. Contact your 125-011 local Bradley Representative for assistance. VALVE ASSY. SEE FIGURE 8 FOR PART NUMBER PEDESTAL ASSY. ACCESS PANEL S17-287 186-1260 A/O UNITS Figure 7 (A shown) Bradley Corporation • 215-1479 Rev. A; EN 02-089...
  • Page 11 R68-600014 VOLUME CONTROL TIE ROD NUT 110-064 ELBOW MANUAL MIXING VALVE 145-102 S01-038B FLEXIBLE HOSE 269-653 FILTER WASHER 269-1188 COLD CHECK STOP S27-102 ELBOW 169-639 ELBOW CHECK STOP 169-639 S27-102 Figure 8 Bradley Corporation • 215-1479 Rev. A; EN 02-089...
  • Page 12 DISPENSER SPACER COUPLING NUT AND SET SCREW MODULE 4-1/4" COVER TIE ROD 176-118 18-1/8" TIE ROD COUPLING 176-008 NUT AND SET SCREW ACTUATOR TIE BAR MODULE ASSEMBLY SUPPORT TUBE SPRAYHEAD Figure 9 Bradley Corporation • 215-1479 Rev. A; EN 02-089...

  • Page 13: Air Valve Troubleshooting

    2. Clean valve seat and inspect for deep gouges or scratches. Replace if necessary. 3. Remove all debris that may be clogging center hole of plastic diaphragm assembly. 4. Remove any debris clogging off-center hole in rubber diaphragm. Bradley Corporation • 215-1479 Rev. A; EN 02-089...

  • Page 14: Terreon® Cleaning/Maintenance

    ® Solid Surface cleaner and polish to refresh and protect the Terreon Solid Surface material. Bradley recommends additional care and maintenance for the darker colored Terreon, for complete instructions on this additional maintenance see Bradley document #1505. IMPORTANT: DO NOT USE STRONG ACID OR ALKALINE CHEMICALS AND CLEANSERS TO CLEAN TERREON.

  • Page 15: Stainless Steel Cleaning/Maintenance

    It is emphasized that all products should be used in strict accordance with package instructions. Bradley Corporation • 215-1479 Rev. A; EN 02-089...

  • Page 16: Soap Dispensing Valve Repair Parts

    Valve Attaching Assembly Parts S09-057 S09-057S Item Part No. Description 124-001D Washer — 110-057 — 125-001AN Stopper — 159-114 Reinforcing Plate — 124-001AT Washer — 160-176 Screw — S09-040 Valve S53-045 Adaptor Bradley Corporation • 215-1479 Rev. A; EN 02-089...
  • Page 17 If none is present, it will be necessary to drill out the bearing hole with a 1/2" or 5/8" drill. The plastic container config- uration forms a natural template for locating the bearing hole. Bradley Corporation • 215-1479 Rev. A; EN 02-089...

  • Page 18: Soap Recommendations And Maintenance

    Soap thickness is determined by a measurement called viscosity. Soap viscosity should be between 100 cps (centerpoise) and 2500 cps for all Bradley soap dispensers. Thinner soaps are perceived by the users as being "watered down" so users tend to take more than they need, resulting in waste. Thick soaps flow slower and inhibit the "flushing"...

  • Page 19: Sprayhead Troubleshooting/Repair Parts

    NOTE: The sprayhead shown above includes a perforated neopreme spray ring grommet that is self-cleaning. The water pressure flexes the spray holes which slows accumulation of foreign matter and tends to “break loose” any such deposits that may have accumulated. Bradley Corporation • 215-1479 Rev. A; EN 02-089...

  • Page 20: Manual Mixing Valve Repair Parts

    Tailpiece Nut - Brass — — — — 129-007A Tailpiece - Chrome — — — — 110-005A Tailpiece Nut - Chrome — — — — 124-001AF Tailpiece Washer — — Parts not shown Bradley Corporation • 215-1479 Rev. A; EN 02-089...

  • Page 21: Angle Volume Control Valve Repair Parts

    Item Part No. Description 125-001BC O-Ring 152-038 Roll Pin 121-016 Bonnet — 121-016A Bonnet — — 124-001BD Fiber Washer 119-060 Valve Core 118-033 Valve Body — — 118-033B Valve Body — — Bradley Corporation • 215-1479 Rev. A; EN 02-089...

  • Page 22: Actuator Module Assembly Components

    Installation Instructions Actuator Module Components SPRING* U-CUP* 135-065 SCREW 125-099 160-165 ACTUATOR BODY* 118-279 STRAIGHT TUBE CONNECTOR* 169-890 PISTON* 119-227 ACTUATOR BRACKET 140-743 110-115 PUSHBUTTON ASSEMBLY S08-324 * Included in Actuator Assembly S65-168 Bradley Corporation • 215-1479 Rev. A; EN 02-089...

  • Page 23: Metering Air Valve Maintenance

    3. If leak persists, remove tubing from the fitting, and trim the tubing end square with a razor-sharp knife. If leak continues, replace the fitting or contact your Bradley representative for assistance. Metering Air Valve Repair Kits and Parts List...

  • Page 24: Vernatherm™ Mixing Valve Maintenance

    No Water Cold Valve shuts off or drips Correct Correct Cold Cold Cold Reversed Cold Cold/below 107° Hot/above 107° Reversed No Water Reversed No Water Cold Cold Reversed Reversed Cold Cold Cold Bradley Corporation • 215-1479 Rev. A; EN 02-089...
