Removal and Installation Procedures
Removing the P6475 Fan
Screws (8)
Wire from
J1520
6- 20
Follow the steps below to remove and replace the P6475 fan (See Figure 6- -14):
1. Disconnect the fan cable (J1510 or J1520).
2. Remove the 4 screws securing the fan that you are replacing.
3. Remove the fan from the probe chassis.
Replace the fan by reversing this procedure. Be sure the fan is reinstalled so that
the airflow is directed inside of the chassis.
Wire from
J1510
J1510

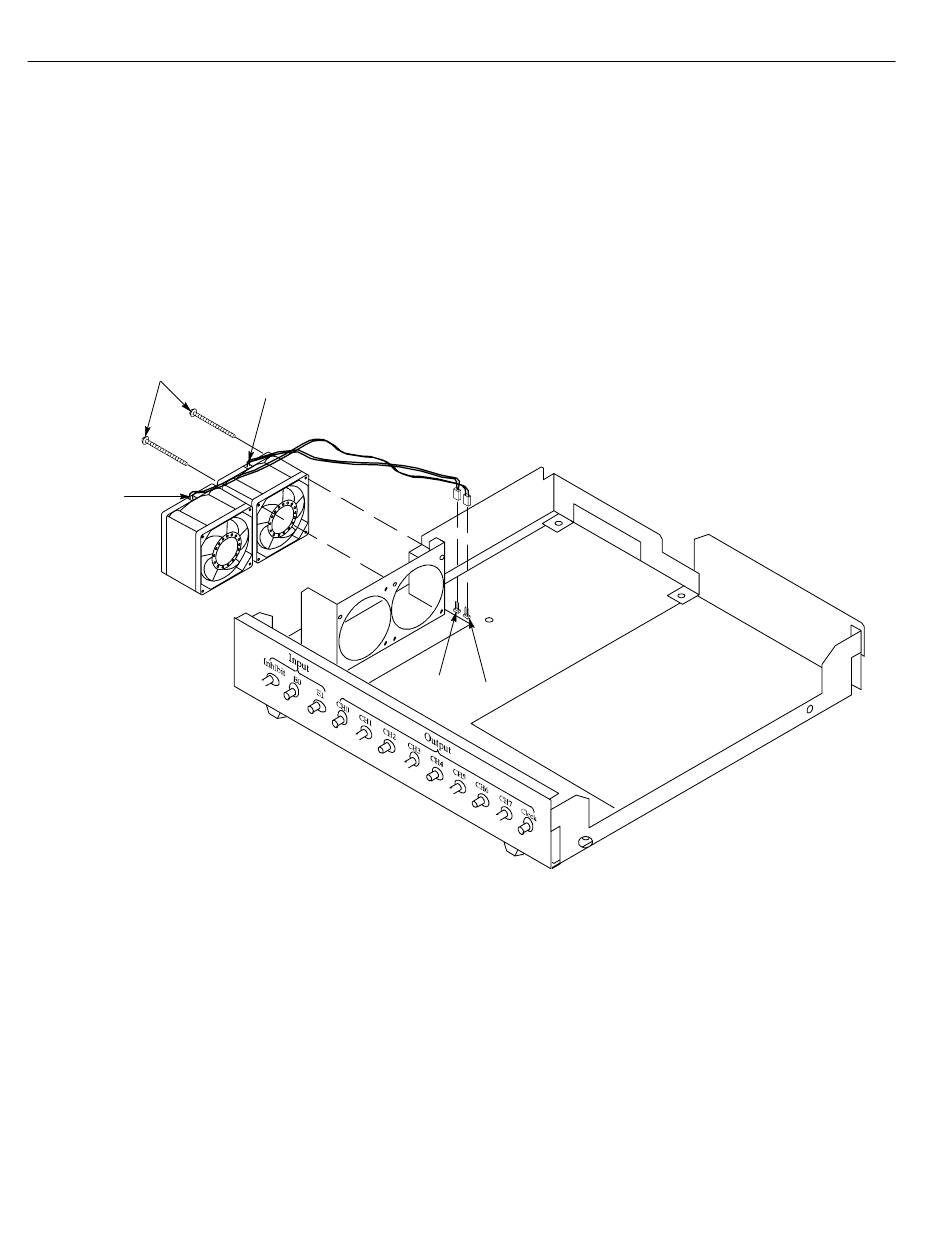

Figure 6- 14: Removing the P6475 fans
J1520
TLA7PG2 Pattern Generator Module Service Manual
