Performance Verification
4- 100
13. Set the oscilloscope horizontal axis to 20 ns/div.
14. Change the slew rate to 2.5 V/ns.
15. Verify that the waveforms are similar to those shown in Figure 4- -45.
CH1 (P6475 CH0)
CH2 (P6475 CH6)
CH3 (P6475 CH7)

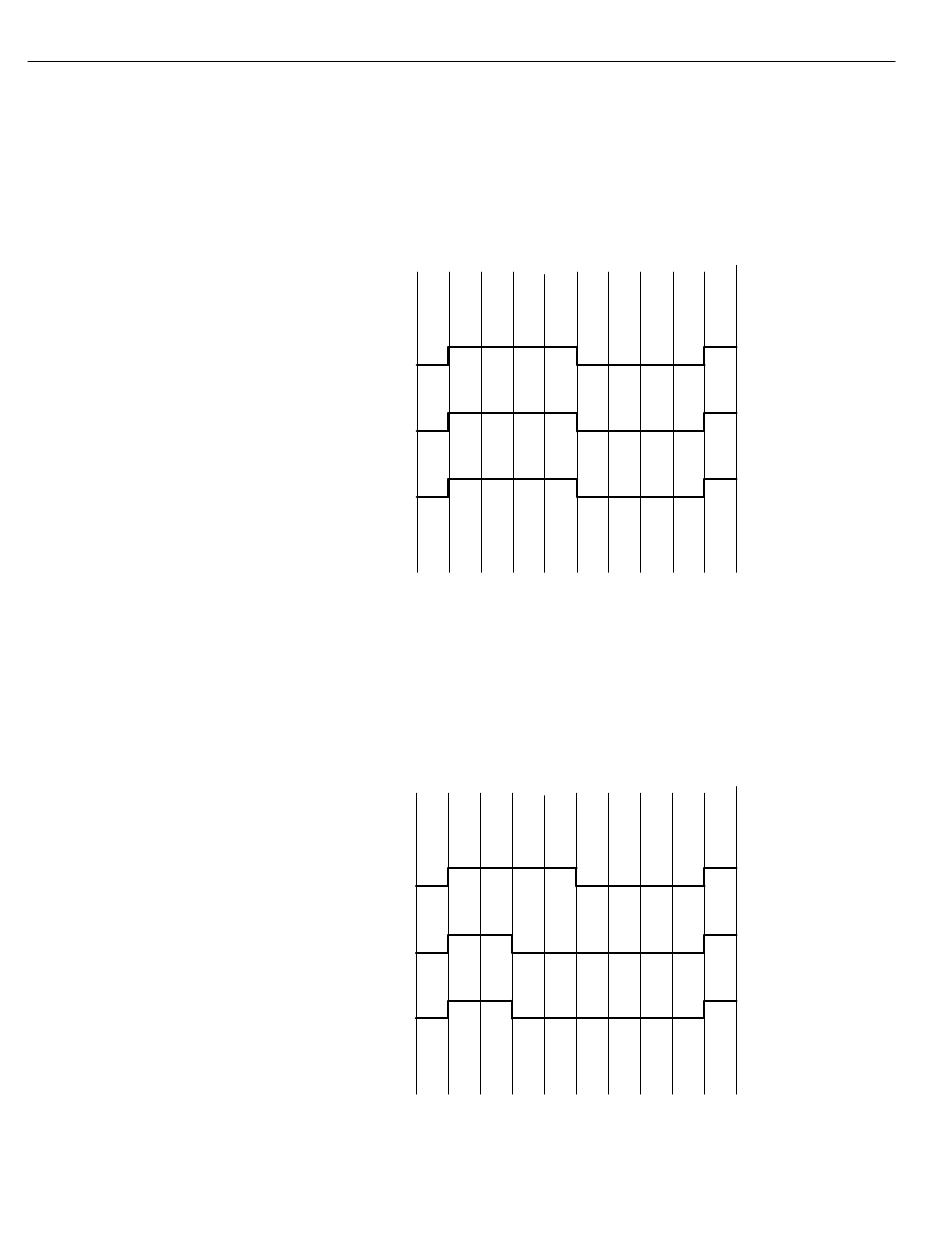

Figure 4- 45: NRZ data format
16. Select the Probe Setup window and change the data format of P6475 CH6
and CH7 to RZ.
17. Verify that the waveforms are similar to those shown in Figure 4- -46.
CH1 (P6475 CH0)
CH2 (P6475 CH6)
CH3 (P6475 CH7)
Figure 4- 46: RZ data format
