TLA7PG2 Pattern Generator Module Service Manual
CH1(P6475 CH0)
CH2(P6475 CH1)
CH2(P6475 CH2)
CH2(P6475 CH3)
CH2(P6475 CH4)
CH2(P6475 CH5)
CH2(P6475 CH6)
CH2(P6475 CH7)

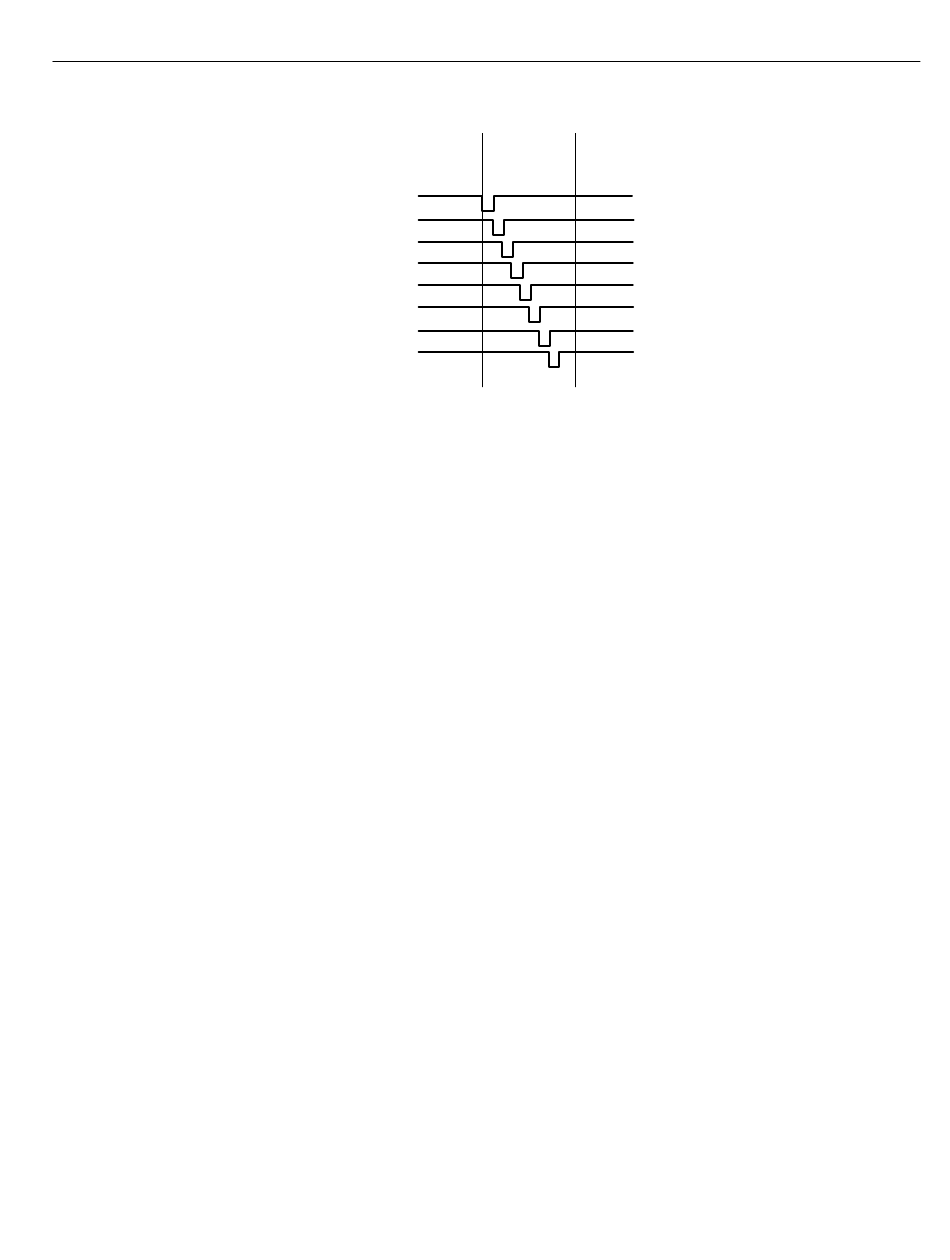

Figure 4- 41: P6475 Sequence and Data sample waveforms
14. Connect the Probe B connector on the TLA7PG2 to the P6475.
15. Load the TP6PG1.TPG module setup file.
16. Repeat steps 7 through 10.
17. Connect the Probe C connector on the TLA7PG2 to the P6475.
18. Load the TP7PG1.TPG module setup file.
19. Repeat steps 7 through 10.
20. Connect the Probe D connector on the TLA7PG2 to the P6475.
21. Load the TP8PG1.TPG module setup file.
22. Start the pattern generator.
23. Verify that the CH1 waveform is similar to the waveforms shown in
Figure 4- -42.
24. Connect the CH2 BNC to SMB cable on the oscilloscope to the CH1
connector on the P6475.
25. Verify that the output signal data pattern is similar to the waveform shown in
Figure 4- -42.
26. Repeat steps 24 and 25 for CH2 through CH7 on the P6475.
27. Verify that the CH0 through CH7 waveforms are similar to the waveforms
shown in Figure 4- -42.
28. Verify that the Ready, Output, and Started front panel indicators are
illuminated and the Waiting front panel indicator blinks while the system is
operating.
