PowerShield Pilot DC 50 User Manual

INSTALLATION
1 INSPECTION

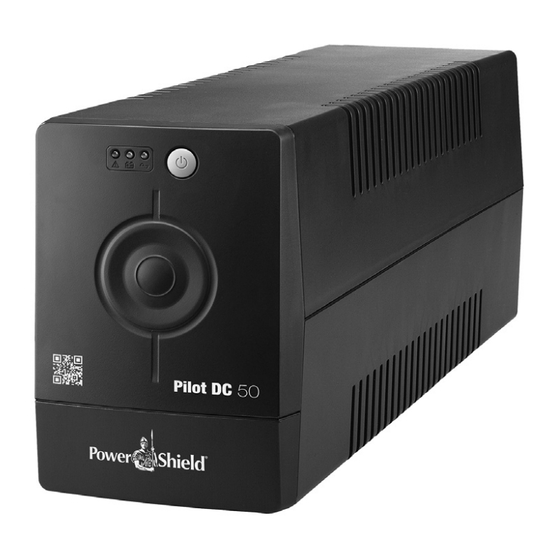

The following items are included with your new
PowerShield DC Pilot 50 24Vdc UPS (Model:
PSDCP50) carton:
• DC UPS
• User Manual
• 3m Phoenix connector to DC plug cable
Please remove the PSDCP50 UPS from its packaging
and check the unit. Re-pack and return the unit
to the place of purchase if there are any signs of
damage or mishandling during delivery.
2 CONNECTION OF PSDCP50 TO THE AC TO DC
ADAPTER
Connect the UPS DC input to the DC Adapter and
turn on the power to the adapter to commence
charging the batteries. It is recommended to
charge the batteries for 6 hours prior to initial use.
USER MANUAL
Pilot DC 50
(PSDCP50)
3 EQUIPMENT CONNECTION
Connect your 24Vdc equipment to the 24Vdc output
via the 3m Phoenix connector to DC plug cable.
NOTE: Make sure that the UPS is powered on to
protect all important devices from data loss during
power failure.
OPERATION & FUNCTIONS
1 TURN ON THE UPS
To turn on the PowerShield DC Pilot 50 UPS, simply
press the power switch. The LED will turn ON.
2 TURN OFF THE UPS
To turn off the UPS unit, press the power switch
again. The LED will turn OFF.
3 COLD START FUNCTION
When the UPS is off and there is no DC input
power, it is still possible to cold start the UPS using
the battery to power the loads.
