Microzone 6C-MINI Product Manual page 2

DIGITAL PROPORTIONAL R/C
SYSTEM

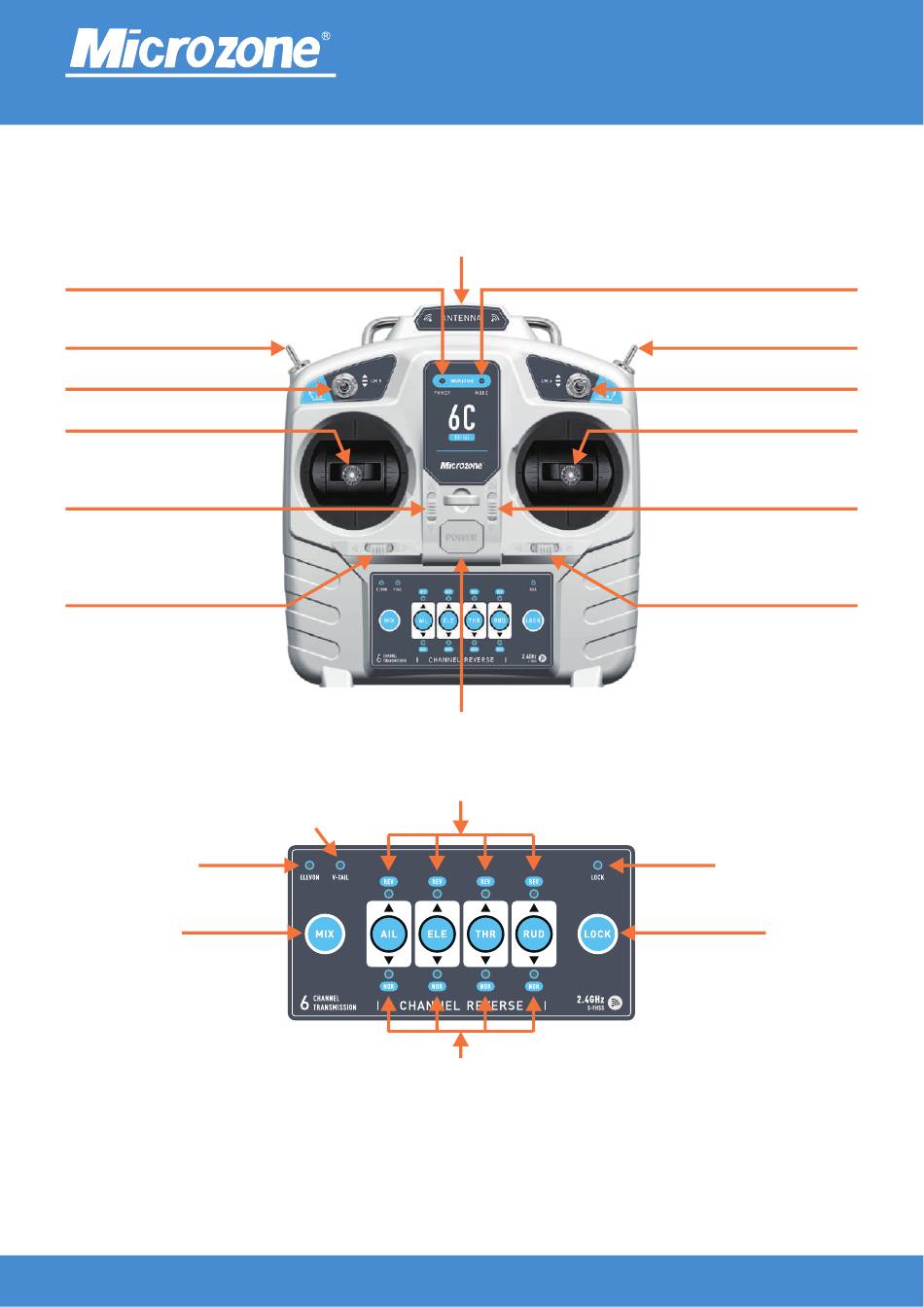

REMOTE CONTROL FUNCTION ANALYSIS
Power light
D/R switch
Channel 5
Rocker
Fine adjustment of throttle
(left hand throttle)
Elevator fine adjustment
(right hand throttle)
Rudder fine adjustment
V-tail hybrid control indicator light
Delta wing mixed
control indicator
Hybrid control
function switch
Internal Antenna
Power switch
Channel reverse indicator light
Channel forward indicator light
AIL:Aileron channel front and back settings CH.1
ELE:Front and back settings of the lifting channel CH.2
THR:Throttle channel positive and negative settings CH.3
RUD:Direction channel front and back settings CH.4
2.4GHz
FHSS
Mode light
Mode switching switch
Channel 6
Rocker
Elevator fine adjustment
(left hand throttle)
Fine adjustment of throttle
(right-hand throttle)
Aileron fine tuning
Lock indicator ligh
Lock switch
