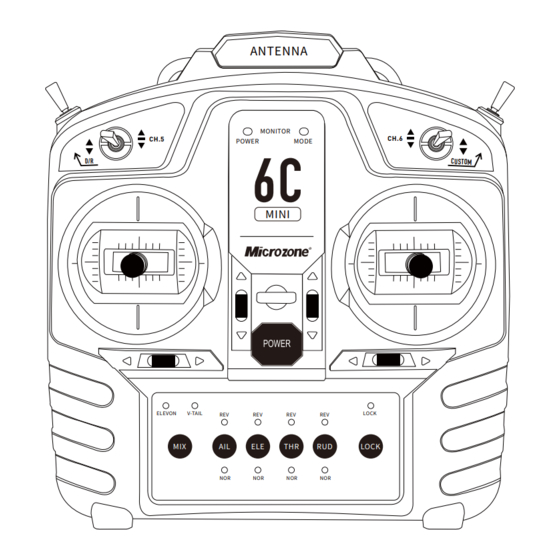

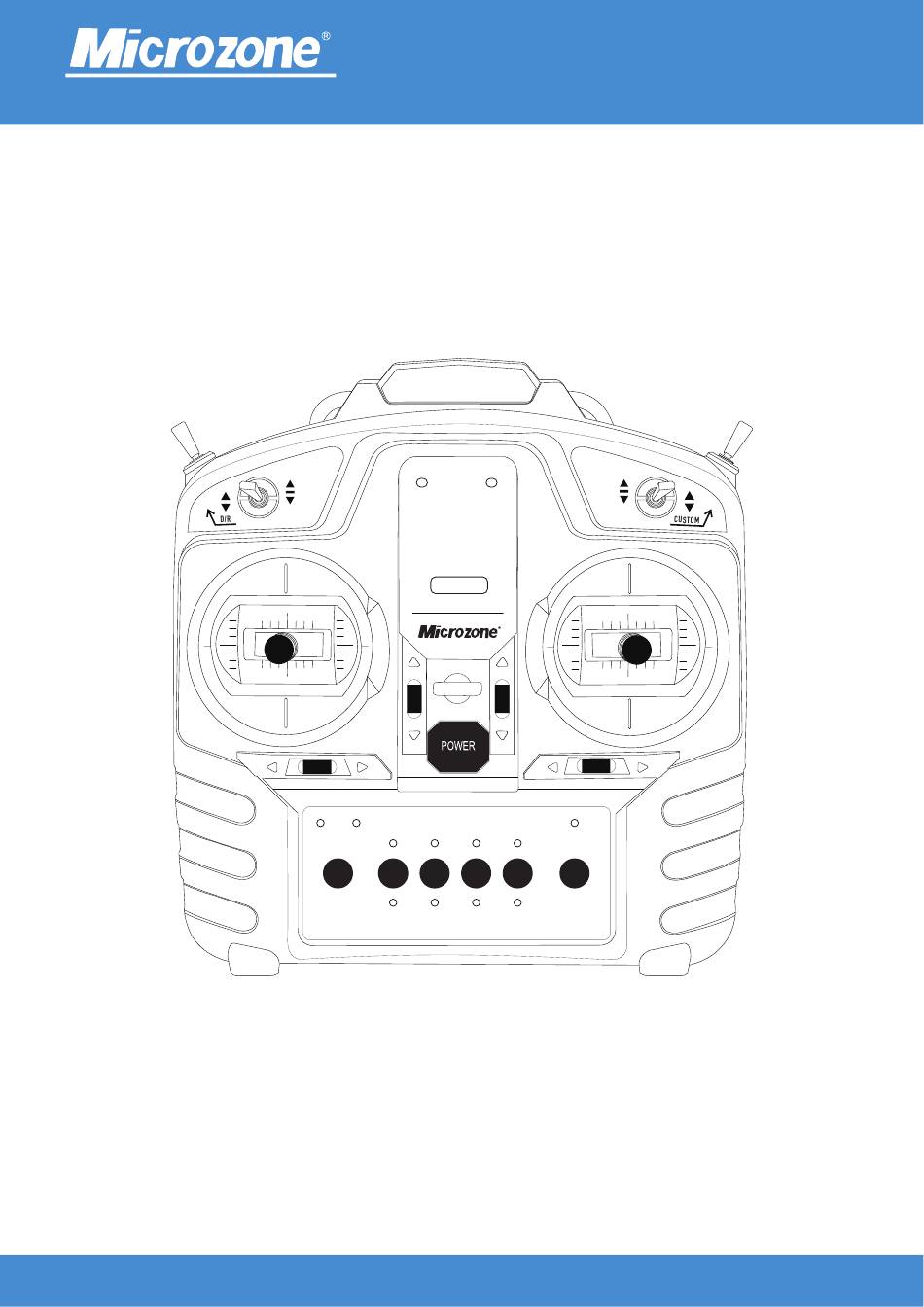

- Page 1 2.4GHz FHSS DIGITAL PROPORTIONAL R/CSYSTEM 6C-MINI ANTENNA MONITOR CH.6 CH.5 POWER MODE MINI ELEVON V-TAIL LOCK MIX AIL ELE THR RUD LOCK PRODUCT MANUAL Please read the instruction manual before use www.microzone.cn...
- Page 2 Hybrid control Lock switch function switch Channel forward indicator light AIL:Aileron channel front and back settings CH.1 ELE:Front and back settings of the lifting channel CH.2 THR:Throttle channel positive and negative settings CH.3 RUD:Direction channel front and back settings CH.4 www.microzone.cn...
- Page 3 2.4GHz FHSS DIGITAL PROPORTIONAL R/CSYSTEM Battery compartment Audio For computers and simulations Device encryption dog usage External input DC 6V power supply For indoor testing www.microzone.cn...
- Page 4 Built-in antenna 7 PWM signal (-)negative Contact frequency alignment (S)signal electrode After the receiver is powered on, press the touch button to (+)positive electrode turn on the power switch of the remote control, and the frequency matching is successful www.microzone.cn...
- Page 5 2.4GHz FHSS DIGITAL PROPORTIONAL R/CSYSTEM REMOTE CONTROL SPECIFICATIONS AND PARAMETERS Model 6C-MINI Color Off-white Number of channels Fixed-wing/Car/Boat/Multi-axis/Lawn mower/ Applications Intelligent agricultural machinery Control range >800m Frequency range 2401 - 2478MHz Rocker dynamic range 80%-120% Fine-tuning method Electronic fine-tuning Transmitting power ≤100mw...
- Page 6 Contact to frequency Contact to frequency Recovery performance Fast signal recovery Fast signal recovery Runaway protection settings Support Support Remote control support 6C-MINI/C7-MINI/8B-MINI/Classic-10 6C-MINI/C7-MINI/8B-MINI/Classic-10 Antenna type External antenna Built-in antenna Antenna length 110mm Size 37*23*1（ 3 mm） 42*30*1（ 3 mm）...
-
Page 7: Detailed Description
This DC port is not a charging port,Cannot charge, only available External connection to simulator teaching Power usage This DC port is not a charging port,Cannot charge, only available External connection to simulator teaching Power usage www.microzone.cn... - Page 8 Taking MC6RE-V2 as an example FM button www.microzone.cn...
-
Page 9: Function Settings
(Fig. 1), and when the reverse indicator goes to the upper side, the servo swings from right to left by turning the lever from left to right (Fig. 2). ① ② www.microzone.cn... - Page 10 After turning on the machine, press the (MIX) key for 3 seconds to switch to mixed control mode,The left light of the mixed control light is on for 1/2 mixed control, and the right light is on for 2/4 mixed control,As shown in the following figure, two lights off indicate no mixed control. 2/4hybrid control 1/2hybrid control www.microzone.cn...
- Page 11 3 up and down; As shown in the following figure. Right Rocker left stick Right hand mode Left hand mode D/R switch: The large and small rudder Switching switch, the large rudder signal output is 100%, i.e., 1000-2000, and the small rudder output is 50%,i.e. 1250-1750. www.microzone.cn...
- Page 12 Factory default runaway protection value, that is, the third channel runaway protection value of 900, other channels 1500; long press the frequency pair button on the receiver for more than 15 seconds, the receiver indicator light flashes, can switch to user-defined runaway protection. Taking MC6RE-V2 as an example FM button www.microzone.cn...
- Page 13 (Fig.3) to increase the Alternatively, reduce the travel amount and press the (ELE+THR) key to exit the setup (Fig.2). ① ② Left hand mode Left hand mode Right hand mode Right hand mode ③ www.microzone.cn...
- Page 14 Suggestions for safe shutdown: To ensure the safety of the aircraft model and oneself, after the aircraft model motor stops running, first turn off the power supply of the model, and then turn it off again Turn off the transmitter power. www.microzone.cn...
- Page 15 Swing the two rockers to the maximum amplitude, as shown in the following figure, Then the two rocker rods are centered, as shown in the following figure, Then the two rocker rods are centered, as shown in the following figure, www.microzone.cn...
- Page 16 1 data, the second rising edge to the third rising edge is the channel 2 data, and so on, as shown in the figure below,The following diagram shows. 20millisecond Channel 1 Channel 2 Channel 3 Channel 4 Channel 5 Channel 6 www.microzone.cn...
-
Page 17: Standard Configuration List
Read this guide and follow the instructions. 11.The remote control and receiver required for our company's 2.4G wireless transmission system are used in pairs, while other company products cannot be connected to our company's products The product is of great value. www.microzone.cn...
