Summary of Contents for Microzone M450

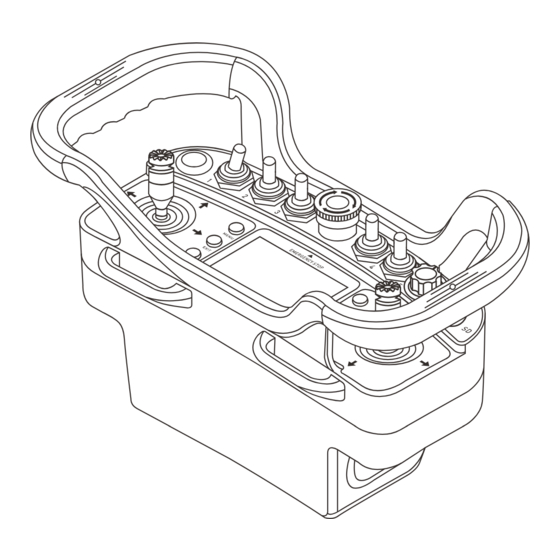

- Page 1 2.4GHz FHSS DIGITAL PROPORTIONAL R/CSYSTEM M450 VERSIONNUMBER： V1.0.0 PRODUCT MANUAL Please read the manual before use www.microzone.cn...
- Page 2 FHSS DIGITAL PROPORTIONAL R/CSYSTEM REMOTE CONTROL FUNCTION ANALYSIS Fixed Speed Switch PWM2 Emergency switch Activate Cessation Pusher1 PWM1 Headlights Pusher2 Menu key / OK key Previous one Rocker Rocker Exit button Next Power switch Key locking Type-c charging port www.microzone.cn...
- Page 3 2.4GHz FHSS DIGITAL PROPORTIONAL R/CSYSTEM REMOTE CONTROL SPECIFICATIONS AND PARAMETERS Model M450 Orange-black Color Display color Black and white 128*64 px Language Chinese/English Applications Lawn mower Number of channels Channel Resolution PCM1024 2401MHz - 2478MHz Radio band Transmitting power ≤100mw Control distance >800m...
- Page 4 Sensor Line 2 Sensor Line 1 wire Grounding Grounding Connect the Connecting the Grounding wire Grounding wire Grounding wire Grounding wire Grounding wire Grounding wire Grounding wire Grounding wire wire wire engine start wire engine off wire www.microzone.cn...
- Page 5 Frequency range 2401MHz-2478MHz Receiver power supply requirements DC:12-48V Voltage return Support PWM signal Support SBUS signal Frequency pairing mode One-button pairing Remote control support M450 Antenna type External antenna Antenna length Size(length, width, height) 131*110*3（ 6 mm） Weight 455g www.microzone.cn...
-
Page 6: Detailed Description
详细说明 2.4GHz FHSS DIGITAL PROPORTIONAL R/CSYSTEM DETAILED DESCRIPTION Charging: Use the Type-c cable + charger to connect the remote control for charging, as shown below, the. Type-c charging port www.microzone.cn... - Page 7 Low voltage alarm: When the voltage of the remote control is lower than 6.8V, it will tick and the battery icon will flash,prompting you that the power is low, please charge it as soon as possible. www.microzone.cn...
- Page 8 Fig. 2, Fig. 1 Fig. 2 Then pull the rocker to the center position, as in Figure 1, and finally pull the fixed-speed switch as in Figure 2, the drip stops and the calibration is complete. Fig. 1 Fig. 2 www.microzone.cn...
- Page 9 <MENU> key, <EXIT> key, <PREVIOUS ONE> key, and < NEXT> key is invalid, and the lock symbol will appear on the page, and then press and hold the <KEY LOCKING> key for 2 seconds to unlock the key. Key locking www.microzone.cn...
- Page 10 Turn signal off: turn signal is invalid when the rocker is swung to the left or right; press <PREVIOUS ONE> key or <NEXT> key to select the corresponding option, then press <MENU> key to confirm. Headlights www.microzone.cn...
- Page 11 Off: Toggling the fixed speed switch is not effective; Press <PREVIOUS ONE> key or <NEXT> key to select the corresponding option, then press <MENU> key to confirm. Fixed Speed Switch www.microzone.cn...
- Page 12 Rear anti-collision on: pauses when the rear of the model hits an object; Rear anti-collision off: rear anti-collision sensing is disabled; Press <PREVIOUS ONE> or <NEXT> to select the corresponding option, then press <MENU> to confirm. www.microzone.cn...
- Page 13 Mode 5: left joystick controls left wheel forward, backward, right joystick controls right wheel forward, backward; Press <PREVIOUS ONE> key or <NEXT> key to select the corresponding option, then press <MENU> key to confirm. www.microzone.cn...
- Page 14 Adjusts the response speed of the joystick, the larger the value, the faster the response speed, the smaller the value, the slower the response speed; Press the <MENU> key, then press the <PREVIOUS ONE> key or <NEXT> key to adjust the value, then press the <MENU> key to confirm. www.microzone.cn...
- Page 15 Press <PREVIOUS ONE> key or <NEXT> key to select the corresponding option, then press <MENU> key to confirm. Voice selection: Support Chinese and English; Press <PREVIOUS ONE> key or <NEXT> key to select the corresponding option, then press <MENU> key to confirm. www.microzone.cn...
-
Page 16: Standard Configuration List
Read this guide and follow the instructions. 11. The remote control and receiver required for our company's 2.4G wireless transmission system are used in pairs, while other company products cannot be connected to our company's products The product is of great value. www.microzone.cn...
