- Page 1 2.4GHz FHSS DIGITAL PROPORTIONAL R/CSYSTEM Version number:1.0.6 8B-MINI SW-A SW-B MONITOR POWER MINI MENU DOWN EXIT MONITOR LOCK PRODUCT MANUAL Please read the manual before use -01- www.microzone.cn...
-
Page 2: Table Of Contents
37、 Timer..........................21 38、 Comwunication........................21 39、 Receiver..........................21 40、 FailSafe..........................22 41、 Warning..........................22 42、 Sys Setting.........................23 43、 Volume..........................23 44、 Auto Power.........................23 45、 UserManual........................23 46、 Language........................... 23 47、 User............................23 48、 Factory Reset........................23 49、 Standard configuration list....................24 50、 Matters needing attention....................24 -02- www.microzone.cn... -

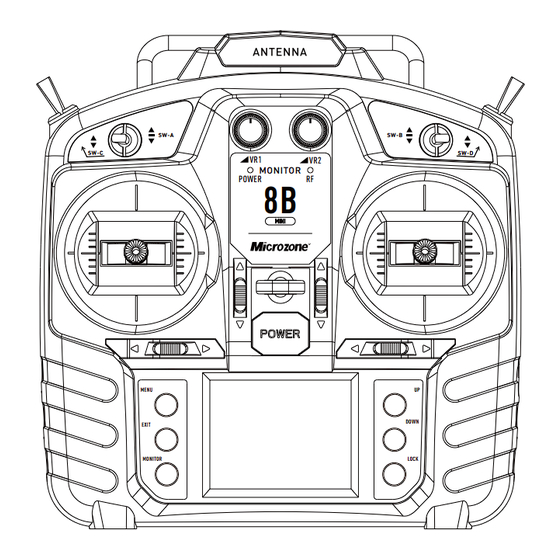

Page 3: 01、 Remote Control Introduction
Aileron fine-tuning OK key Revious one Exit button Next Channel Monitoring Lock button Power Switch Battery compartment PPM signal interface For use with computers and analog devices The dongle can be used with a computer and an analog dongle. -03- www.microzone.cn... -
Page 4: 02、 Introduction To Standard Receivers
External antenna on, press the frequency pairing button and turn on the power switch of the remote control, the frequency pairing is successful (S)signal (+)positive 8 PWM signal electrode (-)negative 1 SBUS signal electrode (-)negative (S)signal electrode (+)positive electrode -04- www.microzone.cn... -
Page 5: 03、 Remote Control Parameters
2.4GHz FHSS DIGITAL PROPORTIONAL R/CSYSTEM REMOTE CONTROL PARAMETERS Model 8B-MINI Color Ash gray Display color Colour (320*240 pixels) Language Chinese / English Number of channels Airplane / UAV / Car/Boat / Lawn mower / Applications Intelligent machinery Control range >800m... -
Page 6: 04、 Standard Receiver Parameters
SBUS signal Support Frequency pairing mode Push-button pairing Recovery performance Fast signal recovery Standard 8B-MINI / MC8B , Compatible C10-MINI / Remote control support C7-MINI / 6C-MINI / MC7 / MC6C / E6 Antenna type External dual antenna Antenna length... -
Page 7: 05、 Electricity Supply
This DC port is not a charging port,Cannot charge, only available External connection to simulator teaching Power usage This DC port is not a charging port,Cannot charge, only available External connection to simulator teaching Power usage -07- www.microzone.cn... -
Page 8: 06、 Initial Use
Safe Shutdown advice: Safe Shutdown Advice:To ensure the safety of the model and yourself, turn off the power to the model first and then the power to the remote control after the model motor stops running. -08- www.microzone.cn... -
Page 9: 10、 Trimmer Switch
2; Upper right fine adjustment switch, left mode corresponds to channel 2, right modeEquation corresponds to channel 3; As shown in the following figure. Left hand mode Left hand mode Right hand mode Right hand mode -09- www.microzone.cn... -
Page 10: 11、 Boot Page
In the main page press <MONITOR> key to enter the channel monitor, you can see the information of channels 1-8 in the channel monitor, then press <MONITOR> key or <EXIT> key to exit the channel monitor. Monitor Func -10- www.microzone.cn... -
Page 11: Lock Button
<MENU> key to enter the timepiece setting page. Timer Timer ModelSelect:Press <MENU> key in the main page, then press <UP> key or <DOWN> key to select the <ModelSelect> button, then press <MENU> key to enter the model selection page. ModelSelect -11- www.microzone.cn... -
Page 12: 16、 Model Func
Press the <UP> key or <DOWN> key to select the corresponding option, press the <MENU> key to enter the setting option, then press the <UP> key or <DOWN> key to select the corresponding option, and press the <MENU> key to finish. -12- www.microzone.cn... -
Page 13: 18、 Servo Reverse
<MENU> key to finish; When the switch is not set, all itinerary are turned on by default, and when the switch is set, the custom itinerary for the corresponding channel can be turned off or on. 1000-2000us 90° 500-2500us 180° -13- www.microzone.cn... -
Page 14: 20、 Sub Trim
Press <UP> key or <DOWN> key to select the corresponding option, press <MENU> key to determine the option to be modified, then press <UP> key or <DOWN> key to modify the setting, then press <MENU> key to finish. -14- www.microzone.cn... -
Page 15: 24、 Vtail Mix
Press <UP> key or <DOWN> key to select the corresponding channel option, press <MENU> key to determine the option that needs to be modified, then press <UP> key or <DOWN> key to modify the parameter, then press <MENU> key to finish. -15- www.microzone.cn... -
Page 16: 26、 Pos Setting
Press <UP> key or <DOWN> key to select the corresponding option, press <MENU> key to determine the option that needs to be modified, then press <UP> key or <DOWN> key to modify the setting, then press <MENU> key to finish. -16- www.microzone.cn... -
Page 17: 29、 Mixed
Press <UP> key or <DOWN> key to select the corresponding model, press <MENU> key to finish. ModelType: Fixed-wing / UAV / Vehicle / Boat can be selected; Press <UP> key or <DOWN> key to select the corresponding models, press <MENU> key to finish. -17- www.microzone.cn... -
Page 18: 33、 Modelname
<Save> button, then press <MENU> key to finish. ModelReset: Reset the parameters of the currently selected model, reset parameters include: ModelName/Receiver Type/Forward and Reverse/Trim/Switchs/Function Switch/Lock Value/Mixed/Curve/ Rudder Volume; Press <DOWN> key to select the <Enter> button, then press <MENU> key to reset the model. -18- www.microzone.cn... -
Page 19: 35、 Setting The Joystick Mode
Mode 4: left joystick up / down control channel 3, left / right control channel 1, right joystick up / down control channel 2, left / right control channel 4; Press <UP> key or <DOWN> key to select the corresponding mode, press <MENU> key to finish. -19- www.microzone.cn... -
Page 20: 6、 Rocker Calibration
(Picture ①), then press <DOWN> key to select <Centre> button, then press <MENU> key to confirm, and then push forward the two joysticks at the maximum range (Picture ②), and when the <Finish> button appears, press <MENU> key to finish the calibration. ① ② -20- www.microzone.cn... -
Page 21: 37、 Timer
<UP> key or <DOWN> key to select the corresponding option, and then press <MENU> key to Enter. Receiver: Press the <UP> key or <DOWN> key to select the corresponding receiver model, then press the <MENU> key to finish. -21- www.microzone.cn... -
Page 22: 40、 Failsafe
0V; Press <MENU> key, then press <UP> key or <DOWN> key to modify the model voltage value, then press <MENU> key to finish. -22- www.microzone.cn... -
Page 23: 42、 Sys Setting
<DOWN> key to select <Save> button, then press <MENU> key to finish. Factory Reset: All settings can be reset to return to the original settings; Press the <DOWN> key to select the <Enter> button, then press the <MENU> key to finish. -23- www.microzone.cn... -
Page 24: 49、 Standard Configuration List
11.The remote control and receiver required for our company's 2.4G wireless transmission system are used in pairs, while other company products cannot be connected to our company's products The product is of great value. -24- www.microzone.cn...
