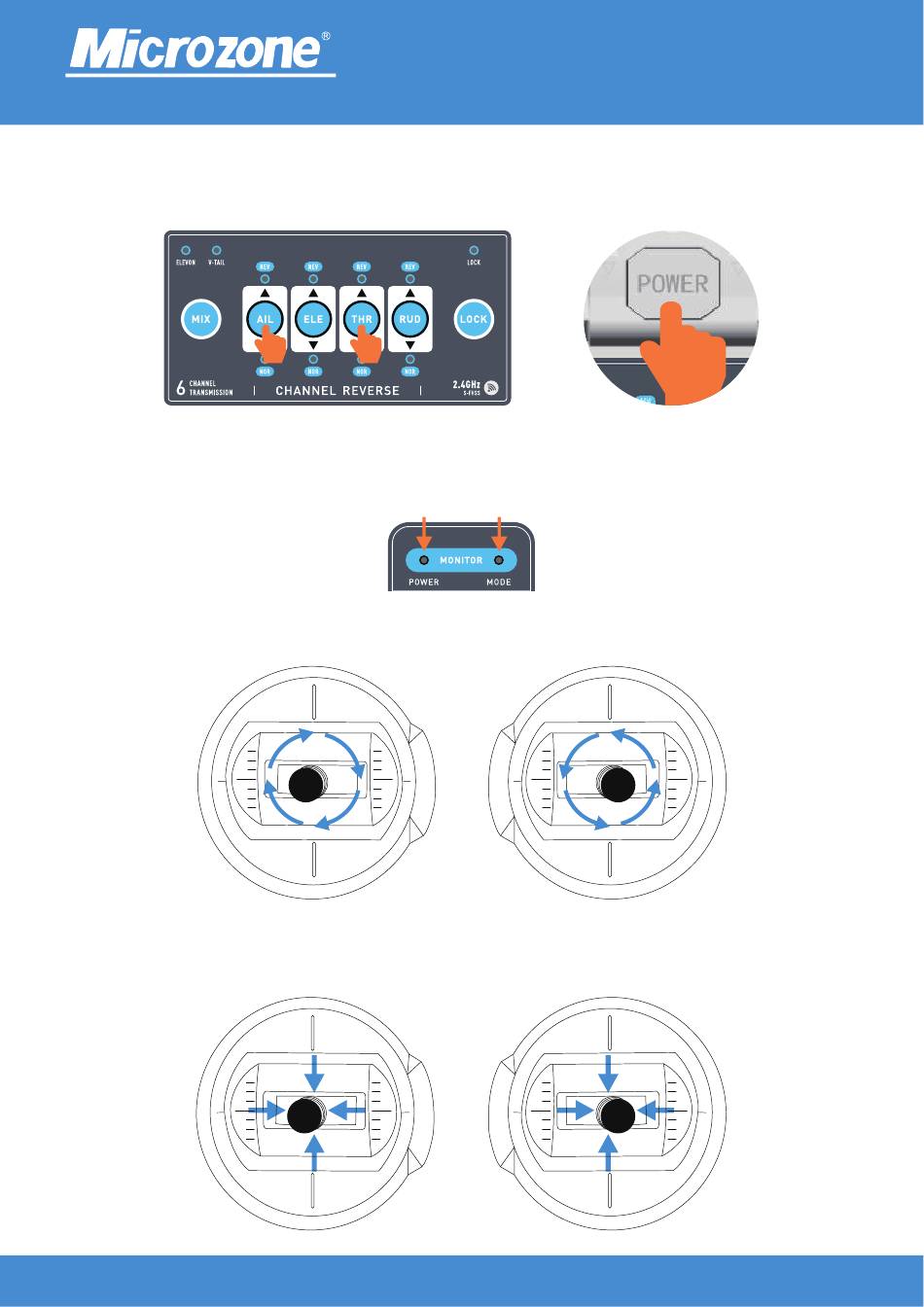

Rocker calibration method:
When the transmitter is turned off, press and hold the (AIL+THR) key with both fingers and then press the
power button to enter calibration Below diagram;
+
At this time, the power light and the mode light appear alternately flashing, and accompanied by dropping
sound,
Power light Mode light
Swing the two rockers to the maximum amplitude, as shown in the following figure,
Then the two rocker rods are centered, as shown in the following figure, Then the two rocker rods are centered, as shown in the following figure,
