T
ECHNICAL INFORMATION
Model No.
Description
C
ONCEPT AND MAIN APPLICATIONS

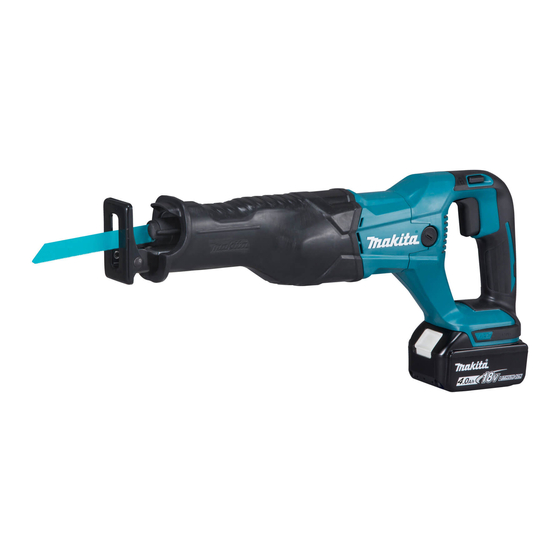

Model DJR186 is a Cordless recipro saw powered by 18V Li-ion battery and
has been developed for higher cutting efficiency and
more durability than the current models DJR181/ DJR182 by adopting
Vertical crank mechanism and reviewing specifications.
Its main features are:
• Ergonomically designed handle
• High durability thanks to more rigid shoe and durable mechanism
to support slider
• Toolless blade change
• Enhanced performance of cutting speed and stroke length
• Vertical crank mechanism minimizes blade deflection and reduces
vibration to machine.
• Two-finger switch trigger
Note: BL1815 is not compatible.
S
pecification
Specification
Voltage: V
Capacity: Ah
Battery
Energy capacity: Wh
Cell
Charging time (approx): min
Max output (W)
Strokes per minutes: min
Length of stroke: mm (")
Capacity: mm (")
Blade clamp type
Electric brake
Variable speed control by trigger
Weight according to
EPTA-Procedure 01/ver.2.1: kg (lbs)
*2 When 300mm (11-3/4") blade is used.
*3 With battery BL1815N, BL1820(B)
S
tandard equipment
Recipro saw blade 152mm (6") for wood and metal
Recipro saw blade 200mm (7-7/8") for metal
Battery*
4
Charger*
4
Battery cover*
5
Plastic carrying case*
4
*4 Battery and Charger and Plastic carrying case are not supplied with "Z" model.
*5 Supplied with the same quantity of extra Battery.
Note: The standard equipment may vary by country or model variation.
O
ptional accessories
Recipro saw blades
Fast charger DC18RC
Charger DC18SD
Charger DC24SC
DJR186
Cordless Recipro Saw
Model
= spm (strokes per minute)
-1
Wood*
2
Pipe: Ø
Automotive charger DC18SE
Two port multi fast charger DC18RD
Four port multi charger DC18SF
1.5, 2.0, 3.0, 4.0, 5.0, 6.0
27, 36, 54, 72, 90, 108
15, 24, 22, 36, 45, 55 with DC18RC
130 (5-1/8)
3.5
(7.6)*
Battery BL1815N
BL1820(B),
BL1830(B), BL1840(B),
BL1850(B), BL1860B
1 / 22
OFFICIAL USE
for ASC & Sales Shop
April 2016
L
H
W
Dimensions: mm ( " )
Length (L)
486 (19-1/8)
Width (W)
81 (3-3/16)
Height (H)
223 (8-3/4)*
*1 With battery
BL1830(B), BL1840(B),
BL1850(B), BL1860B
DJR186
18
Li-ion
530
0 - 2,800
32 (1-1/4)
255 (10)
Toolless
Yes
Yes
or 3.8
(8.3)*
3
1
1
Advertisement
Related Manuals for Makita DJR186
Summary of Contents for Makita DJR186
- Page 1 Cordless Recipro Saw Description ONCEPT AND MAIN APPLICATIONS Model DJR186 is a Cordless recipro saw powered by 18V Li-ion battery and has been developed for higher cutting efficiency and more durability than the current models DJR181/ DJR182 by adopting Dimensions: mm ( " ) Vertical crank mechanism and reviewing specifications.
- Page 2 LUBRICANT AND ADHESIVE APPLICATION ........................4 REPAIR ......................................6 Insulation cover ..................................6 5-1-1 Disassembling ................................6 5-1-1-1 For DJR187, DJR360 .............................. 6 5-1-1-2 For DJR186 ................................6 5-1-2 Assembling .................................. 7 Slider assembly ..................................7 5-2-1 Disassembling ................................7 5-2-2 Assembling .................................. 9 Rotor ass'y (Armature ass'y) ...............................
- Page 3 CAUTION Repair the machine in accordance with “Instruction manual” or “Safety instructions”. Follow the instructions described below in advance before repairing: Wear gloves. · Remove the recipro saw blade from the unit. · In order to avoid wrong reassembly, draw or write down where and how the parts are assembled, and what are the parts. ·...
- Page 4 Inner surface a little Gear shaft Outer circumference Side surface that contacts Needle bearing Flat washer 4 1012 of Gear complete Makita grease Gear complete Gear portion FANo.2 Flat washer 54 Both side surfaces (front and back) a little (a) Side surfaces that contact Roller...
- Page 5 Head point Compression spring 6 Outer circumference Pin 3 Outer circumference a little Slider guide complete Inner circumference (both sides) Makita grease Pin 6 Outer circumference FANo.2 Roller Inner circumference (a) Side surfaces that contact Roller Rod guide R (b) Bottom surface...
- Page 6 Insulation cover. Insulation cover Insulation cover 5-1-1-2 For DJR186 Fig. 5-1-1-2-1 [1] Loosen M6x14 Hex socket head bolt, and remove Shoe. Shoe M6x14 Hex socket head bolt [2] Pull out Insulation cover. (Fig. 5-1-1-1-3, Fig. 5-1-1-1-4, Fig. 5-1-1-1-5)
- Page 7 5-1-2 Assembling Fig. 5-1-2-1 Apply soapy water onto the inner circumference of Insulation cover, and mount Insulation cover to Gear housing assembly by thrusting it. Note: Apply Loctite 272 on M6x14 Hex socket head bolt when you use it again. (Fig. 5-1-1-2-1) Insulation cover Gear housing assembly...
- Page 8 Fig. 5-2-1-4 Fig. 5-2-1-5 [5] Twist Sleeve while pulling it up toward the blade install [6] While holding the top of Slider by finger, push out Pin 3 side to set it in release position. with a thin bar. Note: Without holding Slider, Push plate will pop out from the slit of Slider.
- Page 9 5-2-2 Assembling Fig. 5-2-2-1 Fig. 5-2-2-2 [1] Assemble Torsion spring 17 to [2] Set Sleeve by passing the long tail of Torsion spring 17 through the slit of Sleeve by inserting its short tail into Slider. the hole of Sleeve. Sleeve Hole where Pin 3 is...
- Page 10 Fig. 5-2-2-6 Fig. 5-2-2-7 [6] Remove Guide sleeve. [7] Set Driving sleeve to Sleeve while fitting its two projections to the two concaves of Sleeve. Driving sleeve Viewed from the bottom Guide sleeve Projections Concaves of Sleeve Fig. 5-2-2-8 [8] While push Driving sleeve into Gear housing, turn the sleeve clockwise to lock Pin 3 in place. Then, remove Driving sleeve. Driving sleeve Sleeve Pin 3...
- Page 11 Fig. 5-2-2-9 Fig. 5-2-2-10 [9] Mount Driving sleeve guide while aligning its notches [10] Mount Guide sleeve. to the concaves of Sleeve. Guide sleeve Driving sleeve guide Concaves of Sleeve Fig. 5-2-2-11 Fig. 5-2-2-12 [11] Mount Compression spring 6 and Shoulder pin 5 into the [12] Mount Pin 3.
- Page 12 Rotor ass'y (Armature ass'y) 5-3-1 Disassembling 5-3-1-1 For DJR187, DJR360 [1] Remove Insulation cover. (Refer to 5-1 Insulation cover.) Fig. 5-3-1-1-1 [2] Loosen two M5x10 Pan head screws, and remove Hook assembly. M5x10 Pan head screw (2 pcs.) Hook assembly Fig.
- Page 13 Fig. 5-3-1-1-5 [6] Loosen four M5x25 Pan head screws, and remove Motor housing section. M5x25 Pan head screw (4 pcs.) Motor housing section Fig. 5-3-1-1-6 [7] Loosen twoM4x16 Pan head screws, and remove Rotor ass'y. Note: If it is hard to remove Rotor ass'y, warm Gear housing L assembly with a heat gun. M4x16 Pan head screw (2 pcs.) Rotor ass'y...
- Page 14 [10] Remove Ball bearing 607ZZ with 1R269. Ball bearing 607ZZ 1R269 5-3-1-2 For DJR186 [1] Remove Insulation cover. (Refer to 5-1 Insulation cover.) [2] Remove two Brush holders. Fig. 5-3-1-2-1 [3] Loosen four M5x25 Pan head screws, and remove Motor housing section.
- Page 15 5-3-2 Assembling [1] Assemble by reversing the disassembly procedure. Be careful to check the points mentioned in Fig. 5-3-2-1-1, Fig. 5-3-2-1-2. Note: When assembling Rotor ass'y to Motor housing, be careful not to pinch your fingers between Rotor ass'y and Baffle plate. Fig.
- Page 16 5-3-2-2 For DJR186 Fig. 5-3-2-2-1 Fig. 5-3-2-2-2 [2] Set the U-shaped legs of Bearing retainer 66 into the [3] Align the notch of Yoke unit with the rib of Motor housing, then set Yoke unit in place. groove of Gear housing L assembly to assemble Armature ass'y.
- Page 17 Gear complete 5-4-1 Disassembling 5-4-1-1 For DJR187, DJR360 [1] Remove Insulation cover. (Refer to 5-1 Insulation cover.) [2] Remove Rotor ass'y (Armature ass'y). (Refer to 5-3 Rotor ass'y (Armature ass'y).) Fig. 5-4-1-1-1 [3] Loosen twoM4x35 Hex socket head bolts, and remove Shoe guide plate. M4x35 Hex socket head bolt (2 pcs.) Shoe guide plate...
- Page 18 Pin 6 Slider Roller 5-4-1-2 For DJR186 [1] Remove Insulation cover. (Refer to 5-1 Insulation cover.) [2] Remove Rotor ass'y (Armature ass'y). (Refer to 5-3 Rotor ass'y (Armature ass'y).) Fig. 5-4-1-2-1 [3] Loosen sevenM4x16 Pan head screws, and remove Gear housing R complete.
- Page 19 [1] Insert the longer part of Shoulder pin 6-8 into Gear [2] Assemble Felt 16x16 between Slider guide complete housing L assembly. and Gear housing L assembly, and push it in the direction of the arrow. Note: For DJR186 Gear housing L Shoulder pin 6-8 assembly Felt 16x16...
- Page 20 Circuit diagram Fig. 6-1 Brush holder (Right side viewed from the back of the machine) Line filter (if used) Black/AWG14 Red/AWG14 Brush holder (Left side viewed from the Insulated Insulated back of the machine) connector connector Heat sink Switch Yellow/AWG20 Red/AWG14 Black/AWG14 Red/AWG14...
- Page 21 Wiring diagram Fig. 7-1 Wiring to Motor housing Put Brush holder’s Lead wire (black) into this lead wire holder. Put Brush holder’s Lead wire (red) into this lead wire holder. Brush holder Brush holder Brush holder Put Brush holder’s Lead wire (red) into this lead wire holder.
- Page 22 Fig. 7-3 Wiring to Handle Connect Insulated connector to Switch as shown in the Approx. 30° figure on the right. Put Brush holder’s Lead wires into these lead wire holders. Switch Put Line filter (if used) into this space between Rib I and Rib J. Rib J Rib I Route the lead wires from...
