Assign a name to the device using the Name ﬁ eld, then press the

illustrated in the ﬁ gure below.

Press the Scan button to identify the Door Unit installed: a new window will appear specifying the device found.

Select the element visualized and press the OK button: the MAC Address ﬁ eld will be automatically ﬁ lled in.

For the "Door Used" option, which makes it possible to enable/disable the management of the pedestrian door, the default will be checked.

For the "Gate Used" option, which makes it possible to enable/disable the management of the garage gate, the default will not be checked.

DS1060-156

button in correspondence or the MAC Address: a new window will appear, as

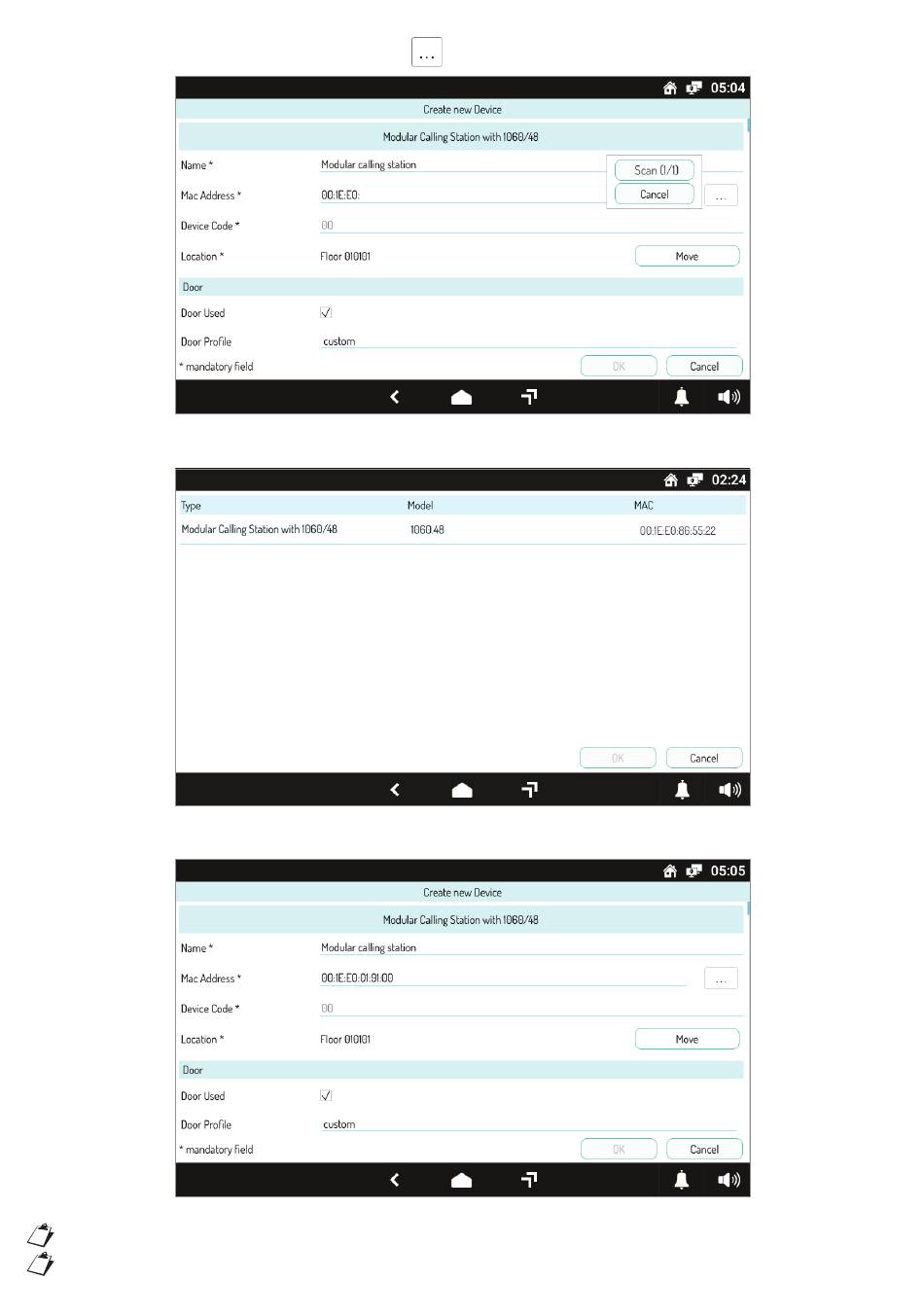

Figure 20: Selecting the MAC address

Figure 21: Selecting the Door Unit identiﬁ ed

Figure 22: Completing the Door Unit Setting 1
