6.4.3

SETTING THE DOOR UNIT

Use the navigation model to position the cursor on the ﬂ oor, pressing the Floor 01 button as illustrated in the ﬁ gure.

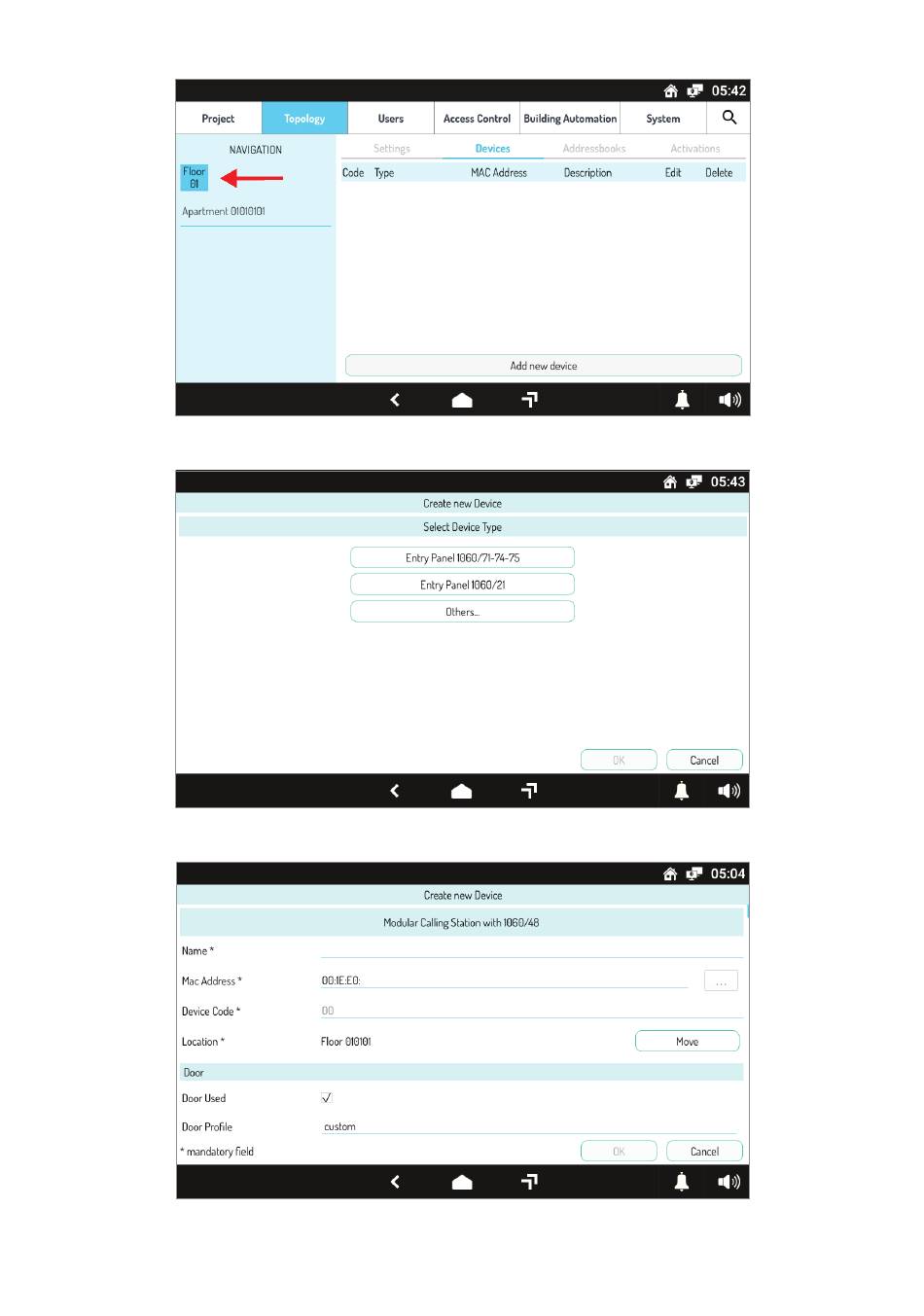

Figure 17: Selecting the ﬂ oor from the navigation module

To add the Door Unit, ﬁ rst press the Add new device button: the following page will appear.

Figure 18: Selecting the device to be added to the ﬂ oor

Press Others and select Modular Calling Station with 1060/48 to open the door unit setup screen.

Figure 19: Setting the Door Unit

DS1060-156
