urmet domus Ipercom 1060 Installation And Configuration Manual page 35

Assign a name to the device using the Name fi eld, then press the button in correspondence or the MAC Address: a new window will appear, as
illustrated in the fi gure below.

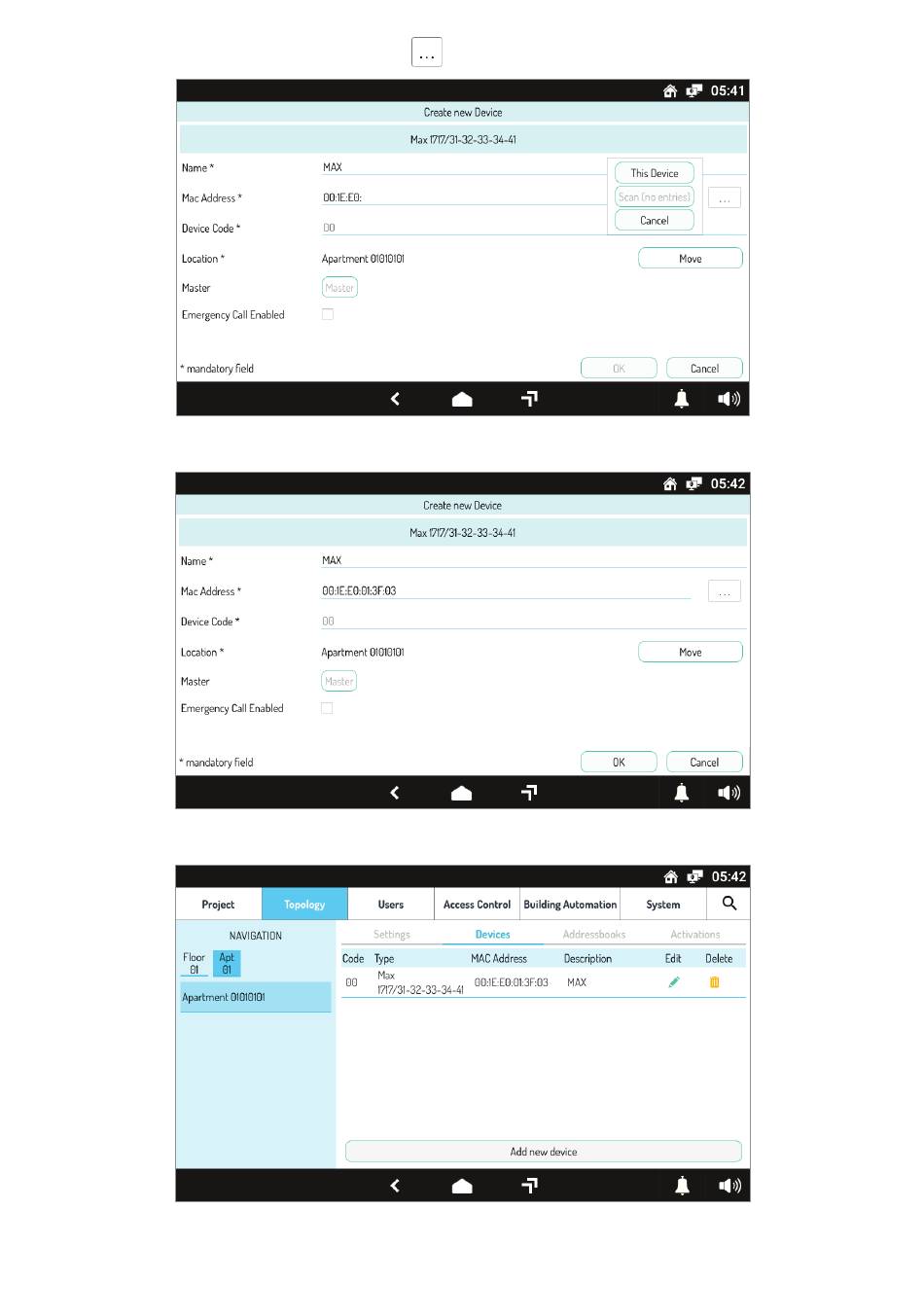

Figure 14: Selecting the MAC address
By pressing the This Device button, the MAC Address fi eld will be fi lled in automatically and the device setting will be completed.
Figure 15: Completing the MAX Video door phone Settings
Press OK to confi rm the parameters entered: the device will be added to the apartment, as illustrated in the fi gure below.
Figure 16: MAX Video door phone added to the apartment
35
DS1060-156
