Pitco RTG14 Service Manual

Pitco RTG14 Service Manual

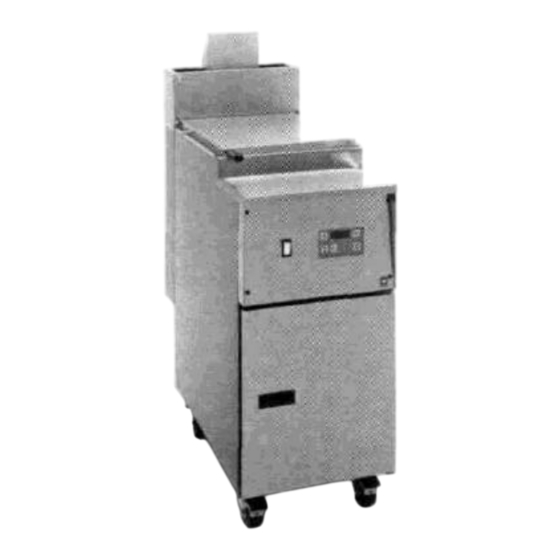

Gas and electric rethermalizer
Hide thumbs Also See for RTG14:
Table of Contents

Advertisement

Quick Links

Download this manual

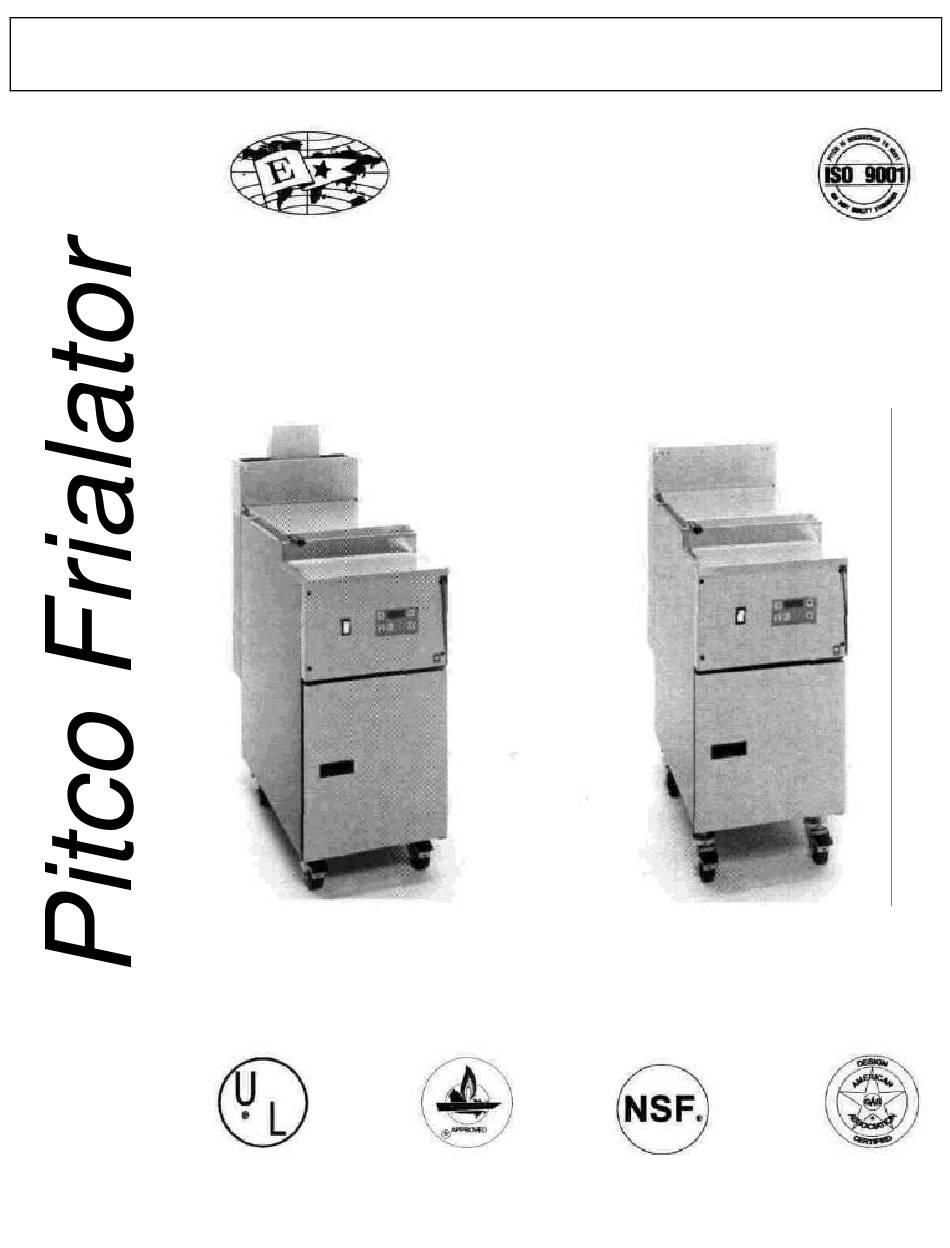

Service Manual
for the Gas and Electric
Rethermalizer
Model Numbers
RTG14&RTE14
PITCO FRIALATOR, INC.
P.O.BOX 501 CONCORD, NH 03302-0501
Phone: 1(603)225-6684
Toll Free: 1(800)258-3708
Fax: 1(603)225-8497
Literature # L20-159 Rev 1
Rev Date 30 April 1997
Made in the United States of America

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTG14 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pitco RTG14

Summary of Contents for Pitco RTG14

  • Page 1 Service Manual for the Gas and Electric Rethermalizer Model Numbers RTG14&RTE14 PITCO FRIALATOR, INC. P.O.BOX 501 CONCORD, NH 03302-0501 Phone: 1(603)225-6684 Toll Free: 1(800)258-3708 Fax: 1(603)225-8497 Literature # L20-159 Rev 1 Rev Date 30 April 1997 Made in the United States of America...
  • Page 2 NOTICES There are three different types of notices that you should be familiar with, a NOTICE, CAUTION, and WARNING. A NOTICE is a special note used to call attention to a particularly important point. CAUTION is used to point out a procedure or operation which may cause equipment damage.
  • Page 3 SAFETY SAFETY SAFETY SAFETY SAFETY WARNING WARNING This appliance is equipped with a three prong (grounding) The power supply must be disconnected before servicing plug. This is for your protection against shock hazard in or cleaning the appliance. the event of equipment malfunction. Always plug the unit directly into a properly grounded three-prong receptacle.

  • Page 4: Table Of Contents

    Digital Control Computer Water Level Control Water Fill Solenoid Safety Relay (K1) Ignition Control Module Temperature Probe PARTS General Parts Heating Components Front Panel Assembly Tank and Fluid Components Accessories SCHEMATICS 14-17 RTG14 with Digital Control RTE14 with Digital Control...

  • Page 5: Troubleshooting

    TROUBLESHOOTING This section is provided to aid the Authorized Service Technician in the repair of your Rethermalizer. SYMPTOM POSSIBLE CAUSE Display will not light Bad Temperature Control, Fuse Holder, Fuse, Transformer or Switch Maintains wrong temperature Bad Probe or Display Bad K1 Relay, contactor, Probe, Display, Gas Valve or Elements or Display lit, but does not heat Water Level control.

  • Page 6: Safety Relay (K1)

    Water Fill Solenoid: The Water Fill Solenoid should be open when a 24 VAC signal is applied to the two wires leading to the Actuator. With no voltage present the Solenoid should be closed. Safety Relay (K1): With a 24 VAC signal present at the coil section of the relay the switch section should have closed the circuit between the two Gray wires.

  • Page 7: Parts

    PARTS General Parts: Item QTY/ Part Description Gas/Electric Unit Number B3310502-C B3310502-C Tank B3402201 Tank Electric B1811501 Cabinet, Painted B1811503 Cabinet, Painted Electric A1619202 Back Strip B2301109 Door Gas/Electric B7230302 B7230302 Hinge, Bottom Right Hand Door Gas/Electric B7230202 Hinge, Top Right Hand Door Gas/Electric P6071483 Plug, Hole...
  • Page 8 General Parts...

  • Page 9: Heating Components

    Heating Components: Item QTY/ Part Description Gas/Electric Unit Number P6071767 P6071767 Gas Shut-Off Valve P6071450 P6071450 Pilot Assembly, Nat PP10665 PP10665 Screw 10-24x3/8" SS PP10665 PP10665 Screw 10-24x3/8" SS A3306402 Pilot Bracket P0092300 P0092300 Nut, Keep 10-24 PP10271 PP10271 High-Limit A1815501 Bracket, High-Limit A8000801...
  • Page 10 Heating Components...

  • Page 11: Front Panel Assembly

    Front Panel Assembly: Item Qty/ Part Description Gas/Electric Unit Number B3609601 Front Panel Weldment Gas/Electric P0075300 P0075300 Screw 3 10 x 5/8" Self Drill Gas/Electric A3635002 Bezel Front Panel Gas/Electric PP10939 PP10939 Thermostat With 24V Display Gas/Electric PP10195 PP10195 Screw, Button Head Hex Gas/Electric PP10654 PP10654...
  • Page 12 Front Panel Assembly...

  • Page 13: Tank And Fluid Components

    Tank and Fluid Components: Item Qty/ Part Description Gas/Electric Unit Number PPI0565 Drain Valve, SS Gas/Electric B4000802 Handle Assembly Gas/Electric B8015102 B8015102 Connector, Drain Outlet Gas/Electric B8015202 B8015202 Tube Drain Outlet Gas/Electric PP10034 PP10034 Clamp Gas/Electric PP10032 PP10032 Gasket Gas/Electric PP10620 PP10620 Clamp, Worm type...
  • Page 14 Tank and Fluid Components...

  • Page 15: Accessories

    Accessories: Item Qty/ Part Description Gas/Electric Unit Number A3317902 Cover Gas/Electric A4509301 Tube Rack B4509402 B4509402 Taco Rack Gas/Electric A5053602 Pan Holder End Gas/Electric A3318704 A3318704 Hinge rod Gas/Electric A3317802 Support Hinge Rod Gas/Electric B3311001 Catch, Cover - LH Gas/Electric B3311002 Catch, Cover - RH Gas/Electric...
  • Page 16 Accessories...
  • Page 17 Drawing showing the location of the Pilot Assembly with the Burner Shield in place.

  • Page 18: Schematics

    P5046691 P5046691 RELAY, 120 VAC - SPDT W/MTG TABS PP 0682 VALVE, WATER - 120V SOLENOID PP 0797 CONTROLLER, LIQUID LEVEL-RELAY PP 0949 THERMOSTAT, DIGITAL - 24V PP 0939 PROBE, TEMPERATURE PP 0654 SWITCH, ROCKER -SPST (ON-OFF) PP10202 PP10202 CONNECTOR, PLUG-4 PIN MOLEX PP10203 PP10203 CONNECTOR, JACK-* SKT MOLEX...
