Pitco SRTE Installation & Operation Manual

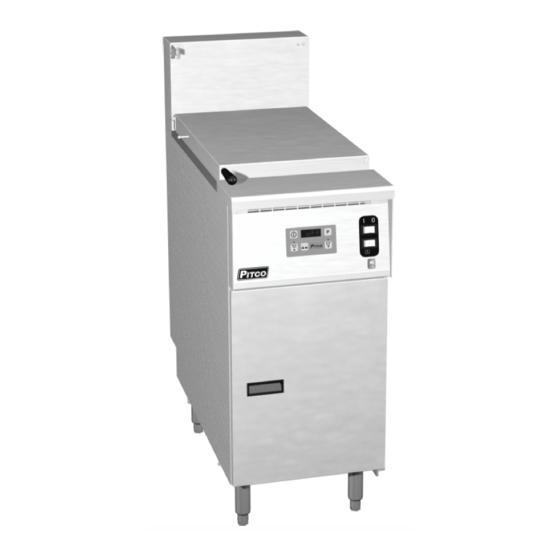

Floor model electric rethermalizer
Hide thumbs Also See for SRTE:
Table of Contents

Advertisement

Quick Links

Download this manual
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this manual
for the life of the equipment:
Model #: ___________________________
Serial #: ___________________________
Date Purchased: ____________________
Installation & Operation Manual
Model SRTE
Floor Model Electric Rethermalizer
Built after 8/2005
L20-292, rev. 1 (05/11)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRTE and is the answer not in the manual?

Questions and answers

Related Manuals for Pitco SRTE

Summary of Contents for Pitco SRTE

  • Page 1 Please complete this information and retain this manual for the life of the equipment: Model #: ___________________________ Serial #: ___________________________ Date Purchased: ____________________ Installation & Operation Manual Model SRTE Floor Model Electric Rethermalizer Built after 8/2005 L20-292, rev. 1 (05/11)
  • Page 2 Parts (ASAP) companies, this warranty will be DO NOT turn the appliance on until the heating void. In addition, Pitco and its affiliates will not be elements are fully covered with water at all times. liable for any claims, damages or expenses incurred...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SRTE: Electric Floor Model Rethermalizer 1. INSTALLATION..................1 1.1. CHECKING YOUR NEW APPLIANCE..................1 1.2. INSTALLATION CLEARANCES ....................2 1.3. LEG/CASTER INSTALLATION AND LEVELING ................. 2 1.4. PLUMBING CONNECTIONS......................3 1.4.1. WATER INLET CONNECTIONS..................... 3 1.4.2. DRAIN CONNECTIONS......................3 1.5.
  • Page 4 TABLE OF CONTENTS 3.2. MONTHLY PREVENTATIVE MAINTENANCE ................12 3.2.1. DELIMING ..........................12 3.3. ANNUAL/PERIODIC PREVENTATIVE MAINTENANCE AND INSPECTION......12 3.3.1. HEATING ELEMENT ......................12 3.3.2. TEMPERATURE PROBE & HIGH LIMIT PROBE ..............12 3.3.3. CONTROLLER ........................12 3.3.4. CONTROL BOX & ELECTRICAL COMPONENTS............... 12 3.3.5.

  • Page 5: Installation

    1.1. CHECKING YOUR NEW APPLIANCE Your new Pitco appliance has been carefully packed into one crate. Every effort has been made to ensure that it is delivered to you in perfect condition. As you unpack your new appliance, inspect each of the pieces for damage.

  • Page 6: Installation Clearances

    INSTALLATION 1.2. INSTALLATION CLEARANCES The clearances shown below are for combustible and non-combustible installations and will allow for safe and proper operation of your appliance. Combustible Construction Non Combustible Construction Inches (centimeters) Inches (centimeters) Back 6.0" (15.24cm) 0.0" (0.0cm) Sides 6.0"...

  • Page 7: Plumbing Connections

    INSTALLATION SRTE: Electric Floor Model Rethermalizer 1.4. PLUMBING CONNECTIONS The plumbing installation should be done by a licensed plumber and must comply with local and national codes. 1.4.1. WATER INLET CONNECTIONS If a faucet or water fill option is equipped on your appliance connections to a potable water supply will be required.

  • Page 8: Electrical Connections

    INSTALLATION 1.5. ELECTRICAL CONNECTIONS It is advised that this power supply be plugged into a wall receptacle that is controlled by the ventilation control. This will prevent the appliance from being operated without the ventilator on. If your appliance requires an electrical connection, the power requirements are listed below. WARNING Voltage/Phase KW Amps...

  • Page 9: Ventilation And Fire Safety Systems

    INSTALLATION SRTE: Electric Floor Model Rethermalizer 1.6. VENTILATION AND FIRE SAFETY SYSTEMS Your new appliance must have proper ventilation to function safely and properly. It is very important to install a fire safety system. Your ventilation system should be designed to allow for easy cleaning.

  • Page 10: Operation

    OPERATION 2. OPERATION An operator’s manual for your appliance’s specific control type should be included with this manual. Refer to that manual prior to operating this appliance. 2.1. OPERATIONAL FEATURES The diagram below outlines some of the key operational components of your appliance. Refer to the following sections of this manual to learn more about these features.
  • Page 11 OPERATION SRTE: Electric Floor Model Rethermalizer 1. Cook Tank 2. Controller (Not on all Models) Controls the water temperature inside the cook tank. Optional timers are located on the controller (if equipped). If the controller has an ON/OFF button, it will be used to turn ON the controller as well as other features on the appliance.

  • Page 12: Filling The Appliance

    Model Capacity 17-1/2 Gal. 3. This appliance is equipped with an automatic water level SRTE (66.2 Liters) maintaining system. To fill the tank with water, Press the unit’s I/0 (ON/OFF) switch to the I (ON) position. This will cause the tank to fill with water. The tank will continue to fill until the water level reaches the level sensors.

  • Page 13: Appliance Start Up

    OPERATION SRTE: Electric Floor Model Rethermalizer 2.3. APPLIANCE START UP Refer to the following procedure to start the appliance prior to operation. 1. Ensure that the drain valve is closed. 2. Fill the cook tank with water. (See section 2.1 “Filling the Appliance”) 3.

  • Page 14: Timer Operation

    OPERATION 2.4.3. TIMER OPERATION Not all control types include timers. Timers provide accurate cook times for multiple product quantities and types. Refer to the operator’s manual for your appliance’s specific control type to determine how to set the cook timers if equipped. To start a timer: Press the appropriate timer button.

  • Page 15: Preventative Maintenance

    PREVENTATIVE MAINTENANCE SRTE: Electric Floor Model Rethermalizer 3. PREVENTATIVE MAINTENANCE 3.1. DAILY PREVENTATIVE MAINTENANCE Performing the preventative maintenance steps below on a daily basis will keep your equipment safe and at peak performance. During the cooking process, starch build up will form on the temperature probes, tank and heating element.

  • Page 16: Monthly Preventative Maintenance

    This section should ONLY be performed by a qualified service technician as part of a regular kitchen maintenance program. This inspection should take place a minimum of once a year by an Authorized Service Technician recommended by Pitco. It may be WARNING necessary perform this inspection more then once a year.

  • Page 17: Tank

    PREVENTATIVE MAINTENANCE SRTE: Electric Floor Model Rethermalizer 3.3.5. TANK  Verify that the tank is in good condition. Check for scale build up and inspect for signs of corrosion. Verify that tank is leak free. Check drain overflow (if equipped) for scale build up and debris blockage.

  • Page 18: Troubleshooting

    TROUBLESHOOTING 4. TROUBLESHOOTING 4.1. POWER FAILURE If electric power is removed for any reason, the appliance will shut down. To restart the appliance, follow the appliance start up procedure in section 2.2. CAUTION DO NOT attempt to operate this appliance during a power outage. 4.2.

  • Page 19: Troubleshooting Chart

    TROUBLESHOOTING SRTE: Electric Floor Model Rethermalizer 4.4. TROUBLESHOOTING CHART Problem Probable Causes Corrective Actions No power to appliance. Check main building power supply. Circuit Breaker tripped. Reset circuit breaker. Controller does not Flip I/0 switch to I position and turn on I/0 Switch in 0 position.
  • Page 20 (603) 225-6684 World Wide representative (ASAP) covering your area, or Website Address: www.pitco.com contact Pitco at the numbers listed to the left. MAILING ADDRESS – P.O. BOX 501, CONCORD, NH 03302-0501 SHIPPING ADDRESS – 10 FERRY ST., CONCORD, NH 03301...
