Summary of Contents for Pitco RTG18

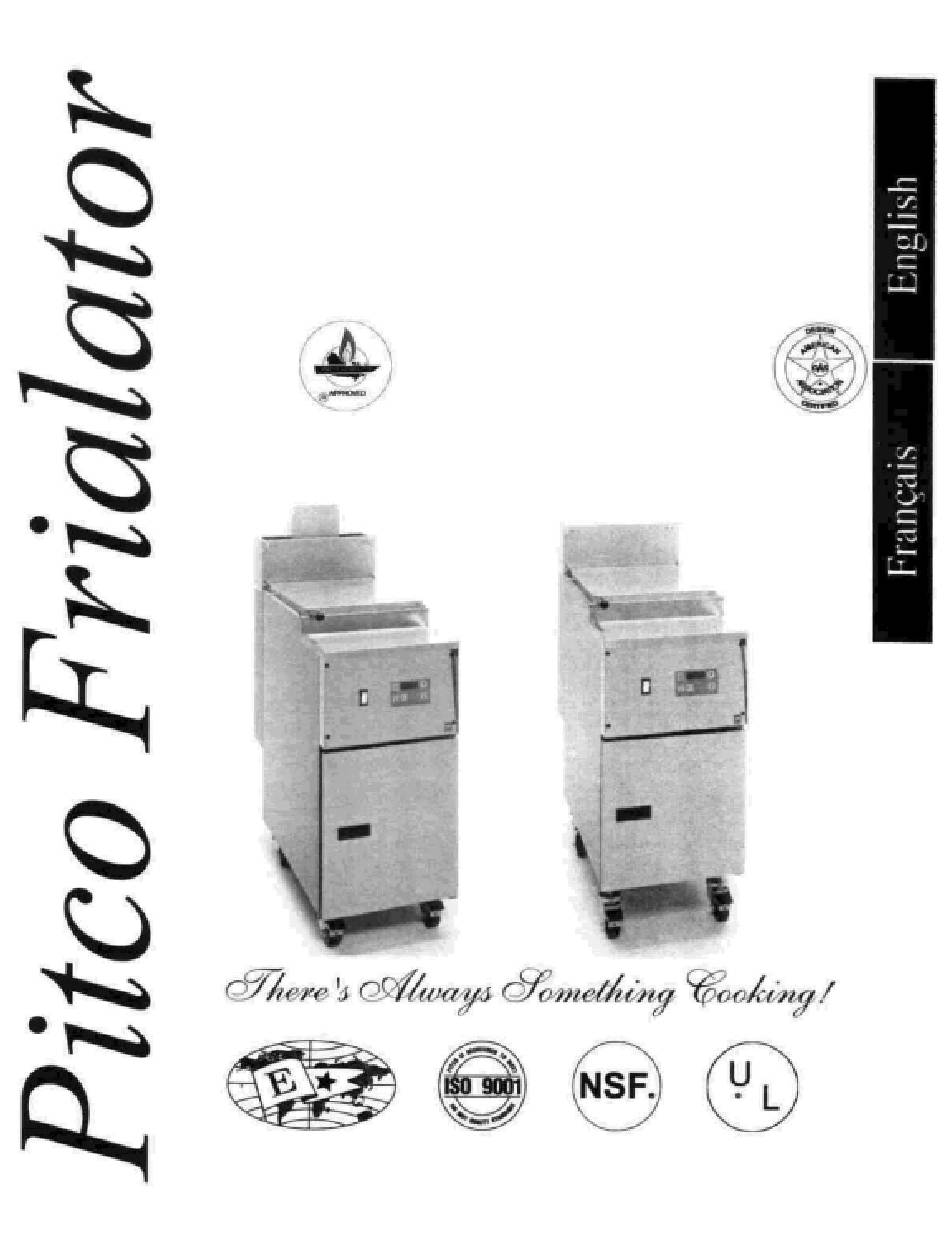

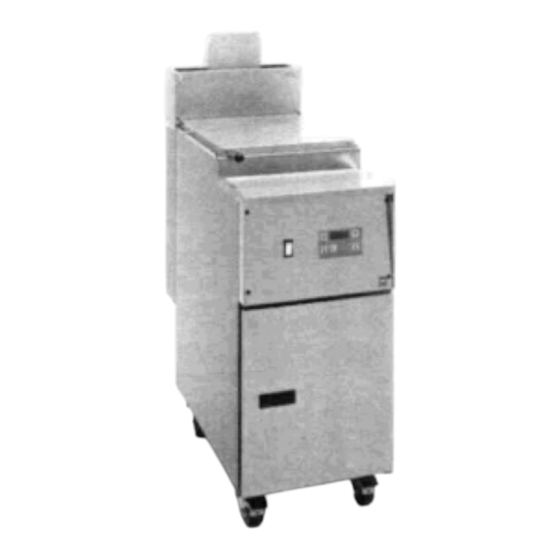

- Page 1 Installation and Operation Manual for the Gas and Electric Rethermalizer Model Numbers RTG14 & 18 & RTE14 Rev. Date 01/98 L20-144 Rev 6...
- Page 2 NOTICES There are three different types of notices that you should be familiar with, a NOTICE, CAUTION, and WARNING. A NOTICE is a special note used to call attention to a particularly important point. CAUTION is used to point out a procedure or operation which may cause equipment damage.
- Page 3 WARNING WARNING This appliance is equipped with a three prong Wait 5 minutes before attempting to relight the pilot. This will allow for any gas in the unit to dissipate. (grounding) plug. This is for your protection against shock hazard in the event of equipment malfunction. Always plug the unit directly into a properly grounded three-prong receptacle.
-
Page 4: Table Of Contents
Table of Contents Chapter 1: General Information and Installation Checking your new Rethermalizer: Check Your Order Chapter 2: Assembly, Leveling and Installation Caster Installation and Adjustment Installation Installation Clearances Gas Connection (On Gas machines only) Plumbing Connections Electrical Connection Ventilation and Fire Safety Systems (Gas machines only) Chapters 3: Initial Adjustments Visual Checks and Equipment Locations Filling the Rethermalizer... -
Page 5: Chapter 1: General Information And Installation
Data plate mounted on the inside of the door. Put your warranty in a safe place for future reference. DO NOT return the warranty sheet to Pitco Frialator. With the exception of the Legs or Casters, the Rethermalizer has been fully assembled for you at the factory and is ready to be installed. -
Page 6: Chapter 2: Assembly, Leveling And Installation
Chapter 2: Assembly, Leveling and Installation: When you receive your Rethermalizer it is completely assembled with the possible exception of the casters. Caster Installation and Adjustment: In order to install the casters on your new Rethermalizer you will need a 7/16" combination wrench and a 7/16"... -
Page 7: Gas Connection (On Gas Machines Only)
Gas Connection (On Gas machines only): Your Rethermalizer will give you peak performance when the gas supply line is of sufficient size to provide the correct gas flow. The gas line must be installed to meet the local building codes or National Fuel Gas Code (NFPA 54-1984) and ANSI Z223.1 Latest Edition. -
Page 8: Electrical Connection
The plumbing installation should be done by a licensed plumber and must comply with local and national codes. The water inlet line on the Rethermalizer is located on the front right side of the unit. This line feeds water to the auto fill valves through the manual shut-off valves also located on the back of the unit. - Page 9 CAUTION Ensure that your ventilation system does not cause a down draft at the unit's flue opening. Down drafts will not allow the Rethermalizer to exhaust properly and will cause overheating which may cause permanent damage. Damage caused by downdrafts will not be covered under equipment warranty. NEVER allow anything to obstruct the flow of combustibles or ventilation exiting from the unit's flue.
-
Page 10: Chapters 3: Initial Adjustments
Chapter 3: Initial Adjustments Visual Checks and Equipment Locations: Before you begin filling and adjusting the unit, perform the following visual checks: Move the Rethermalizer to its permanent cooking position and lock the caster wheels, attach the restraining cable at the rear of the machine. Ensure that the Rethermalizer drain is lined up with the floor drain. Check the High Limit probe located inside the tank. -
Page 11: Pilot Light System (Gas Machines With Standing Pilot Only)
Pilot Light System (Gas machines with Standing Pilot Only); After your Rethermalizer has been installed, it needs to be adjusted to ensure that it will perform as designed. These adjustments must be performed by a qualified person. To perform these adjustments the following tools will be needed: Manometer (low pressure gauge) DC Millivolt Meter The Manual pilot light system lights the main burners and stays lit until the gas valve knob is turned to the OFF... -
Page 12: Main Burner System (Gas Machines Only)
Locate the thermopile wires coming from the High Limit box going to the gas valve. The wire insulation size decreases near the gas valve connections. Connect the negative (-) test probe to the pilot mounting bracket (ground). Connect the positive (+) test probe to one of the High Temperature Limit terminal connections. If the reading is within the specified range remove the test leads, the test in now complete. -
Page 13: Initial Cleaning
Perform the cleaning as described below. Fill the tank with water and add the sample packet of Pitco Fryer Cleaner that was shipped with your new Rethermalizer. (If Pitco Fryer Cleaner is not available a mild detergent may be substituted.) Turn the Rethermalizer on and allow it to reach normal operating temperature. -
Page 14: High Limit Switch
When the cleaning is complete, turn the Rethermalizer OFF and drain the water. When the tank has cooled, rinse it thoroughly with cool water. Continue to rinse the tank until the cleaner has been rinsed from the tank. Now that the tank is clean, you are ready to fill and operate the Rethermalizer. High Limit Switch: Gas machines - The High Limit switch will shut down the unit if the temperature reaches 250°F. -
Page 15: Chapter 4: Operating Instructions
Chapter 4: Operating Instructions This chapter describes how to operate your Rethermalizer to obtain the best performance. Filling the Rethermalizer: The Rethermalizer is equipped with an automatic water level maintaining system. To fill the unit with water press (ON/OFF) key for Digital controls, press the ON/OFF switch for Computer controls. This causes the solenoid valve to open and supply water to the unit through the fill nozzle in the bottom of the tank. -
Page 16: Shutdown
Shutdown: Gas machines with standing pilots - There are two shutdown modes for the Rethermalizer, STANDBY and COMPLETE. The standby mode removes the ability for the unit's main burners to cycle. Complete shutdown turns off the gas supply to the unit. STANDBY Press the key to turn the Digital controller OFF, or the ON/OFF switch to turn the... - Page 17 Key Recognition - Following is a brief description of what each keys function is: Use the key to turn the controller ON and OFF. Use the key to switch between the Boil and Simmer mode. wln be displayed Use the key to start and stop the left hand timer.
-
Page 18: The Intellifry Computer
THE INTELLIFRY COMPUTER Your computer is fully programmable to satisfy all of your cooking needs. To ensure proper product preparation, always refer to in house guidelines for cooking when changing the program. Each of the programmable features are described in the following paragraphs. Cook Time. - Page 19 To check the COOK and HOLD times press the followed by the product key you wish to check. The times will be displayed in sequence followed by a short pause, finally returning to the normal cook mode. When the computer is calling for heat the two lights in the lower comers of the key will illuminate.
-
Page 20: Chapter 5: Maintenance, Adjustments, And Service
Fill the tank with water and add the sample packet of Pitco Fryer Cleaner that was shipped with your new Rethermalizer. ( If Pitco Fryer Cleaner is not available a mild detergent may be substituted.) Turn the Rethermalizer on and allow it to reach normal operating temperature. -
Page 21: Flue And Baffle Inspection (Gas Machines Only)
Gas machines special care should be taken to clean the crevices where the heat tubes meet the front and rear of the tank. You can use a non-abrasive scouring powder or pad to clean stains if necessary. When cleaning around the High Limit bulb (on gas units only) be careful not to damage the bulb or its capillary tube. When the cleaning is complete, press the key to turn the Digital controller OFF, or the ON/OFF switch to turn the Computer OFF.
