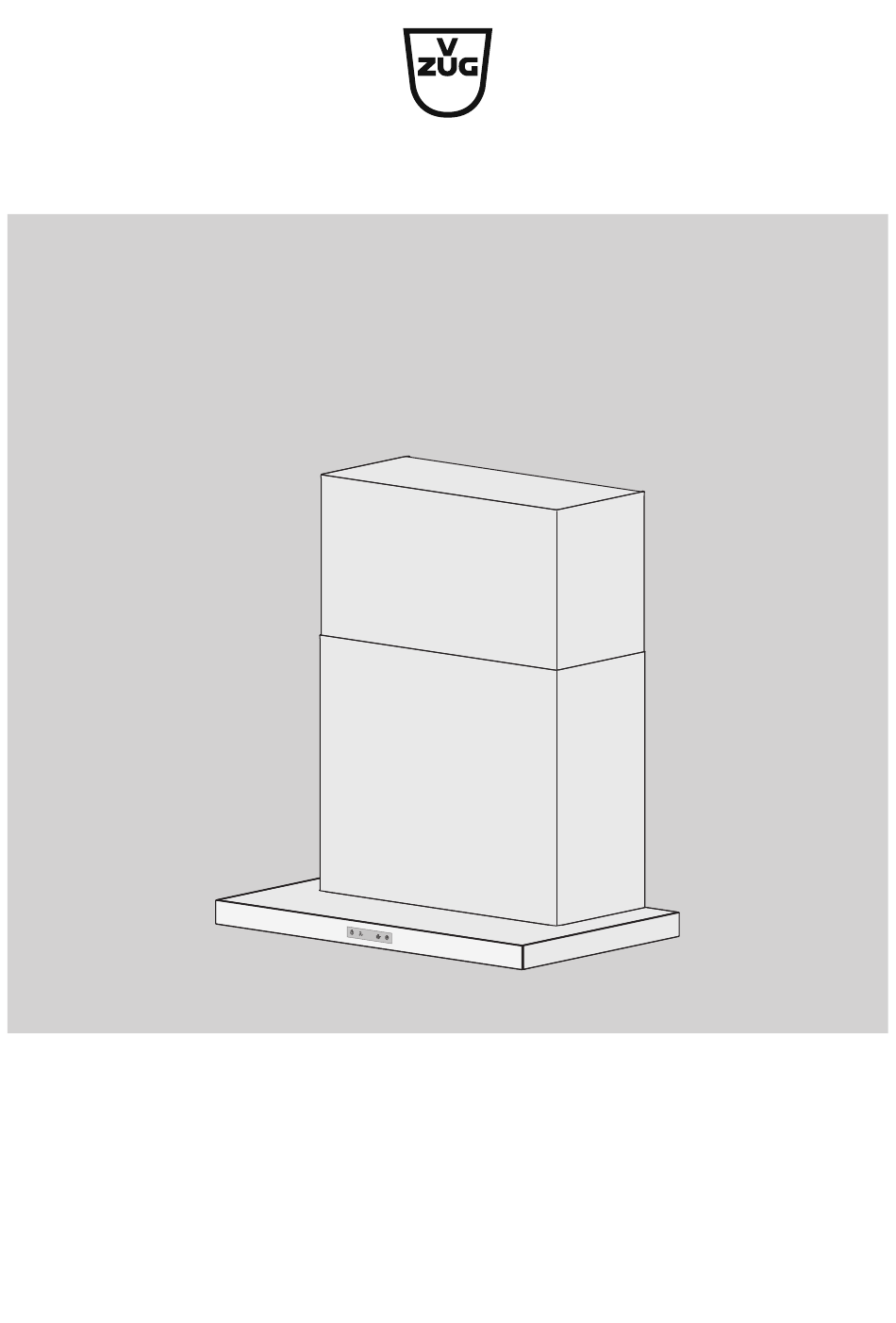

- Page 1 Operating instructions AiroClearWall V4000 Range hood...
- Page 2 Validity These operating instructions apply to: Model designation Type Size system AiroClearWall V4000 AW4T-62026 AiroClearWall V4000 AW4T-62031 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2023...
-
Page 3: Table Of Contents
Contents Safety precautions 4 Symbols used............ 4 General safety precautions........ 4 Appliance-specific safety precautions .... 5 Appliance installation .......... 6 Instructions for use.......... 6 Appliance description 8 Introduction ............. 8 Extraction mode ............. 8 Features.............. 8 Construction ............ 8 Operating and display elements...... 9 Operating the appliance 10 Using for the first time ........ 10... -
Page 4: Safety Precautions
Safety precautions Symbols used Denotes important safety precau- ▪ This appliance can be used tions. Failure to observe said precautions by children aged 8 and above can result in injury or in damage to and by persons with reduced the appliance or fittings! physical, sensory or mental Information and precautions that capabilities, or lack of experi-... -
Page 5: Appliance-Specific Safety Precautions
1 Safety precautions turer or its Customer Services ▪ This appliance is intended for or a similarly qualified person use in the home and similar in order to avoid hazard. settings such as: in staff kit- chens in shops, offices and Appliance-specific safety other commercial establish- precautions... -
Page 6: Appliance Installation
1 Safety precautions Appliance installation Instructions for use Before using for the first time ▪ The appliance must be installed and connected to the electricity supply in ▪ The appliance must be installed by accordance with the separate installa- qualified personnel only. tion instructions. - Page 7 1 Safety precautions ▪ Avoid a cross-current of air, which Caution: Risk to life! could blow the cooking vapours over ▪ Packaging material, e.g. plastic film and the cooking area. polystyrene, can be dangerous for chil- ▪ If other appliances – fired by gas or dren and animals.
-
Page 8: Appliance Description
Appliance description Introduction The appliance is designed for use in the home for extracting cooking odours from above a cooking area and can be used in the extraction or recirculation mode. Extraction mode Recirculation mode This particular model is not intended to be used in the recirculation mode! Extraction mode A fan extracts cooking fumes and smells from above the cooking surface. -
Page 9: Operating And Display Elements
2 Appliance description Operating and display elements Buttons Switch appliance on/off Select power level 1–3; activate intensive level Switch illumination on/off; set colour temperature Activate after-running time Display symbols Wipe protection After-running time Power level 1 Power level 2 Power level 3 Intensive level (flashing) Saturation indicator for grease filter Saturation indicator for activated charcoal filter (recirculation air only;... -
Page 10: Operating The Appliance
3 Operating the appliance Operating the appliance Using for the first time Appliance configuration The appliance is for use in the extraction mode. The appliance is set up by default for use in the extraction mode. The cleaning interval for the metal grease filters is 20 operat- ing hours. -
Page 11: Switching The Appliance On/Off
3 Operating the appliance Switching the appliance on/off ▸ Touch the button. – The appliance switches on at power level 1 and the illumination is activated. – The corresponding symbol illuminates in the display. ▸ With the appliance running, repeatedly touch the button. -
Page 12: After-Running Time
3 Operating the appliance After-running time The purpose of the after-running time function is to remove any lingering smells. Depend- ing on the default setting, the appliance continues to run at the power level set for 5–20 minutes and then switches off automatically. ▸... -
Page 13: Remote Control (Accessories)
4 Care and maintenance Reset the saturation indicator after cleaning. ▸ Switch the appliance and the illumination off. ▸ Hold the button depressed for 5 seconds. – The symbols in the display go out. Only activate the saturation indicator for the activated charcoal filter if the appli- ance is being used in the recirculation mode. -
Page 14: Metal Grease Filters
4 Care and maintenance Metal grease filters The metal grease filters should be cleaned at least every two months with normal use (more frequently with intensive use) and whenever the saturation indicator alarm is triggered. If properly cared for, the grease filters should provide years of service. Removing ▸... -
Page 15: Trouble-Shooting
5 Trouble-shooting Trouble-shooting This section lists faults that can be solved simply by following the instructions given. If the fault cannot be remedied, please call Customer Services. Before calling Customer Services: Please note down the serial number (for SN, see iden- tification plate under «Technical data») and what led to the fault. -
Page 16: Technical Data
7 Technical data Technical data Electrical connection Accessing the identification plate: ▸ Remove the metal grease filters. ▪ The identification plate is located on the inside of the appliance. ▪ A second identification plate is included in the scope of delivery and should be retained for the purpose of appliance identification. -
Page 17: Disposal
8 Disposal Disposal Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸... - Page 18 140/36, 17th Floor ITF Tower, London W1U 1PN Silom Road GREAT BRITAIN Suriyawong Sub-district Bangrak District Bangkok 10500 THAILAND HK/MO V-ZUG Hong Kong Co. Ltd. GÜRELLER 12/F, 8 Russell Street Anchor Sit.3A/1-2 Çayyolu Causeway Bay 06690 ÇANKAYA/ANKARA HONG KONG TURKEY Frigo 2000 S.p.A Private enterprise “Stirion”...
-
Page 19: Index
Index Safety warnings Appliance installation ........ 6 Accessories ............15 Appliance-specific .......... 5 Addresses of the importers ......18 General ............. 4 After-running time..........12 Saturation indicator.......... 12 Appliance Selecting power level ........11 Disposal............ 17 Service & Support..........23 Appliance configuration........10 Spare parts ............ -
Page 20: Notes
Notes... -
Page 23: Service & Support
V‑ZUG service centre. Technical questions, accessories, warranty extensions V-ZUG is happy to help you with any general administrative or technical queries, to take your orders for accessories and spare parts and to inform you about our progressive service agreements. - Page 24 Power level 1 Power level 2 Power level 3 Intensive level (flashing) Saturation indicator for grease filter Saturation indicator for activated charcoal filter (recirculation air only; not active with this particular model) 1085150-04 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug info@vzug.com, www.vzug.com...
