Operating instructions

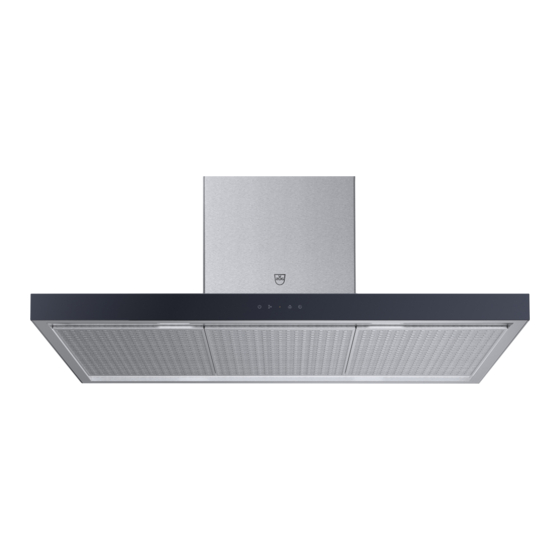

AiroClearWall V6000 | AiroClearIsland V6000
Range hood

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AiroClearWall V6000 and is the answer not in the manual?

Questions and answers

Summary of Contents for V-ZUG AiroClearWall V6000

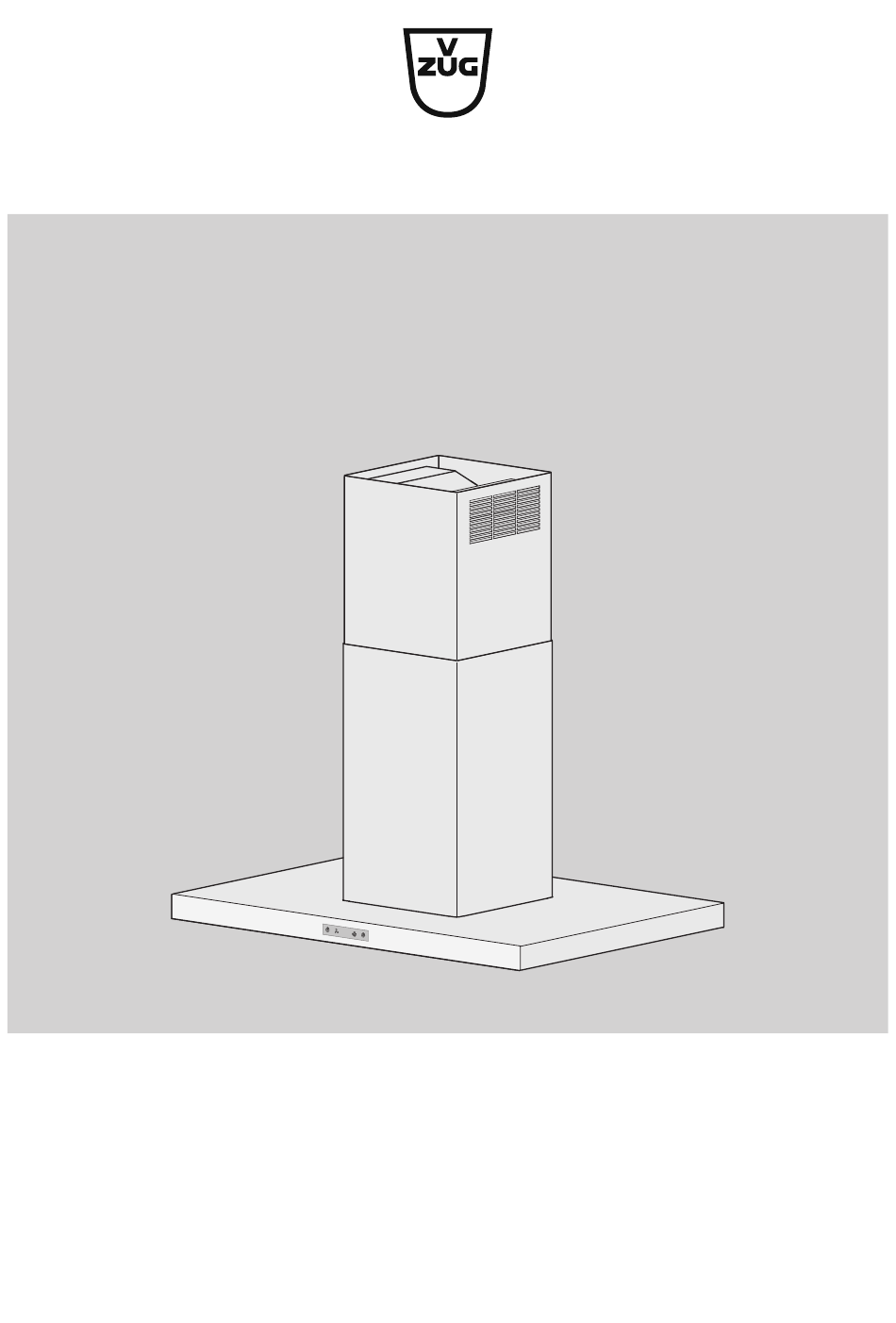

  • Page 1 Operating instructions AiroClearWall V6000 | AiroClearIsland V6000 Range hood...
  • Page 2 AiroClearWall V6000 62028 AW6T9QT.. , AW6T9LQTP.. AiroClearWall V6000 62029 AW6T12QT.. , AW6T12LQTP.. 120 AiroClearIsland V6000 63019 AI6T10QT.. , AI6T10LQTP.. AiroClearIsland V6000 63020 AI6T12QT.. , AI6T12LQTP.. Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2023...
  • Page 3: Table Of Contents

    Contents Safety precautions  4 Service & Support  23 Symbols used............ 4 General safety precautions........ 4 Appliance-specific safety precautions .... 5 Appliance installation .......... 5 Instructions for use.......... 6 Appliance description  8 Introduction .............  8 Extraction mode .............  8 Recirculation mode with activated charcoal filter ..................
  • Page 4: Safety Precautions

    Safety precautions Symbols used Denotes important safety precau- ▪ This appliance can be used tions. Failure to observe said precautions by children aged 8 and above can result in injury or in damage to and by persons with reduced the appliance or fittings! physical, sensory or mental Information and precautions that capabilities, or lack of experi-...
  • Page 5: Appliance-Specific Safety Precautions

    1 Safety precautions turer or its Customer Services ▪ This appliance is intended for or a similarly qualified person use in the home and similar in order to avoid hazard. settings such as: in staff kit- chens in shops, offices and Appliance-specific safety other commercial establish- precautions...
  • Page 6: Instructions For Use

    1 Safety precautions which have all-poles switching are per- as well as affect the functioning of the missible as isolating devices. Effective appliance. If the appliance is not work- earthing and separately installed neutral ing properly or in case a repair is and earth conductors ensure safe and needed, follow the instructions given in fault-free operation.
  • Page 7 1 Safety precautions ▪ When cleaning the appliance make sure no water gets inside it. Use a mod- erately damp cloth only. Do not spray the inside or outside of the appliance with water. Do not use a steam cleaner. If water gets inside the appliance, it can cause damage.
  • Page 8: Appliance Description

    Appliance description Introduction The appliance is designed for use in the home for extracting cooking odours from above a cooking area and can be used in the extraction or recirculation mode. Extraction mode Recirculation mode Extraction mode A fan extracts cooking fumes and smells from above the cooking surface. The metal grease filters clean the extracted air, which is then passed through a connecting pipe fit- ted with an integrated non-return valve and through the air duct to the outside.
  • Page 9: Operating And Display Elements

    2 Appliance description Operating and display elements Buttons Switch appliance on/off Select power level 1–3; activate intensive level Switch illumination on/off; set colour temperature Activate after-running time Display symbols Wipe protection After-running time Power level 1 Power level 2 Power level 3 Intensive level (flashing) Saturation indicator for grease filter Saturation indicator for activated charcoal filter (recirculation air only)
  • Page 10: Operating The Appliance

    3 Operating the appliance Operating the appliance Using for the first time Appliance configuration The model can be used to extract or recirculate air. The appliance is set up by default for use in the recirculation mode. The cleaning interval for the activated charcoal filter is 180 operating hours.
  • Page 11: Switching The Appliance On/Off

    3 Operating the appliance Switching the appliance on/off ▸ Touch the button. – The appliance switches on at power level 1 and the illumination is activated. – The corresponding symbol illuminates in the display. ▸ With the appliance running, repeatedly touch the button.
  • Page 12: After-Running Time

    3 Operating the appliance After-running time The purpose of the after-running time function is to remove any lingering smells. Depend- ing on the default setting, the appliance continues to run at the power level set for 5–20 minutes and then switches off automatically. ▸...
  • Page 13: Optilink

    3 Operating the appliance Reset the saturation indicator after cleaning. ▸ Switch the appliance and the illumination off. ▸ Hold the button depressed for 5 seconds. – The symbols in the display go out. Only activate the saturation indicator for the activated charcoal filter if the appli- ance is being used in the recirculation mode.
  • Page 14 3 Operating the appliance Operating modes There are three modes under OptiLink operation. They vary by reaction time and max- imum possible power level. This allows the user the possibility to set their own prefer- ence. Operating mode Reaction time Maximum power level Silent mode 60 secs.
  • Page 15: Remote Control (Accessories)

    3 Operating the appliance Terminating the connection between the range hood and the hob The following steps must be taken to terminate the connection between the range hood and the hob: ▸ Switch the hob and the range hood off. ▸...
  • Page 16: Care And Maintenance

    4 Care and maintenance Care and maintenance Cleaning the housing Make sure no water gets inside the appliance. If water gets into the appliance, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool, etc. for cleaning, as they can damage the surface.
  • Page 17 4 Care and maintenance Removing: Product family 63015/63016/63019/63020 ▸ Hold the metal grease filters at the front and back with both hands and carefully re- lease from the magnets. Click the metal grease filters out of the fixture and re- move.
  • Page 18: Long-Life-Plus Activated Charcoal Filter

    4 Care and maintenance Long-life-Plus activated charcoal filter The long-life-Plus activated charcoal filter should be cleaned and regenerated every 3 to 6 months with normal use and whenever the saturation indicator alarm is triggered. De- pending on intensity of use, do not exceed 5–8 regeneration cycles. If properly cared for, the service life of the long-life-Plus activated charcoal filter is up to three years.
  • Page 19: Replacing The Led Light Bulbs

    5 Trouble-shooting Replacing the LED light bulbs For safety reasons, the LED light bulbs must be replaced by our Customer Services. Trouble-shooting This section lists faults that can be solved simply by following the instructions given. If the fault cannot be remedied, please call Customer Services. Before calling Customer Services: Please note down the serial number (for SN, see iden- tification plate under «Technical data») and what led to the fault.
  • Page 20: Technical Data

    Product fiche In accordance with EU Regulation No. 65/2014 and No. 66/2014. Description Abbreviations Unit Value Brand V-ZUG LTD Model identifier 62028 / 62029 / 63019-20 Annual Energy Consumption kWh/a 28.2 / 29.7 / 31.1 hood Energy Efficiency Index 38.9 / 40.3 / 41.7...
  • Page 21: Disposal

    8 Disposal Time increase factor 0.7 / 0.7 / 0.7 Measured air flow rate at the best ef- 371.7 / 371.7 / 371.7 ficiency point Measured air pressure at the best ef- 355 / 355 / 355 ficiency point Measured value of the electric power 100.0 / 100.0 / 100.0 input at the best efficiency point Nominal power of the lighting system...
  • Page 22: Index

    Index Accessories ............19 Safety precautions After-running time..........12 Before using for the first time....... 6 Appliance Correct use ............ 6 Disposal............ 21 Instructions for use......... 6 Appliance configuration........10 Note on use ............. 6 Appliance description ........8 Safety warnings Appliance installation ......... 5 Appliance installation ........ 5 Appliance-specific .......... 5 General ............. 4...
  • Page 23 Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our pro- gressive service agreements.
  • Page 24 Power level 3 Intensive level (flashing) Saturation indicator for grease filter Saturation indicator for activated charcoal filter (recirculation air only) 1071177-03 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug Tel. +41 58 767 67 67 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
