V-ZUG Ltd
Range hood
Mistral/Bora
Operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mistral and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for V-ZUG Mistral

Summary of Contents for V-ZUG Mistral

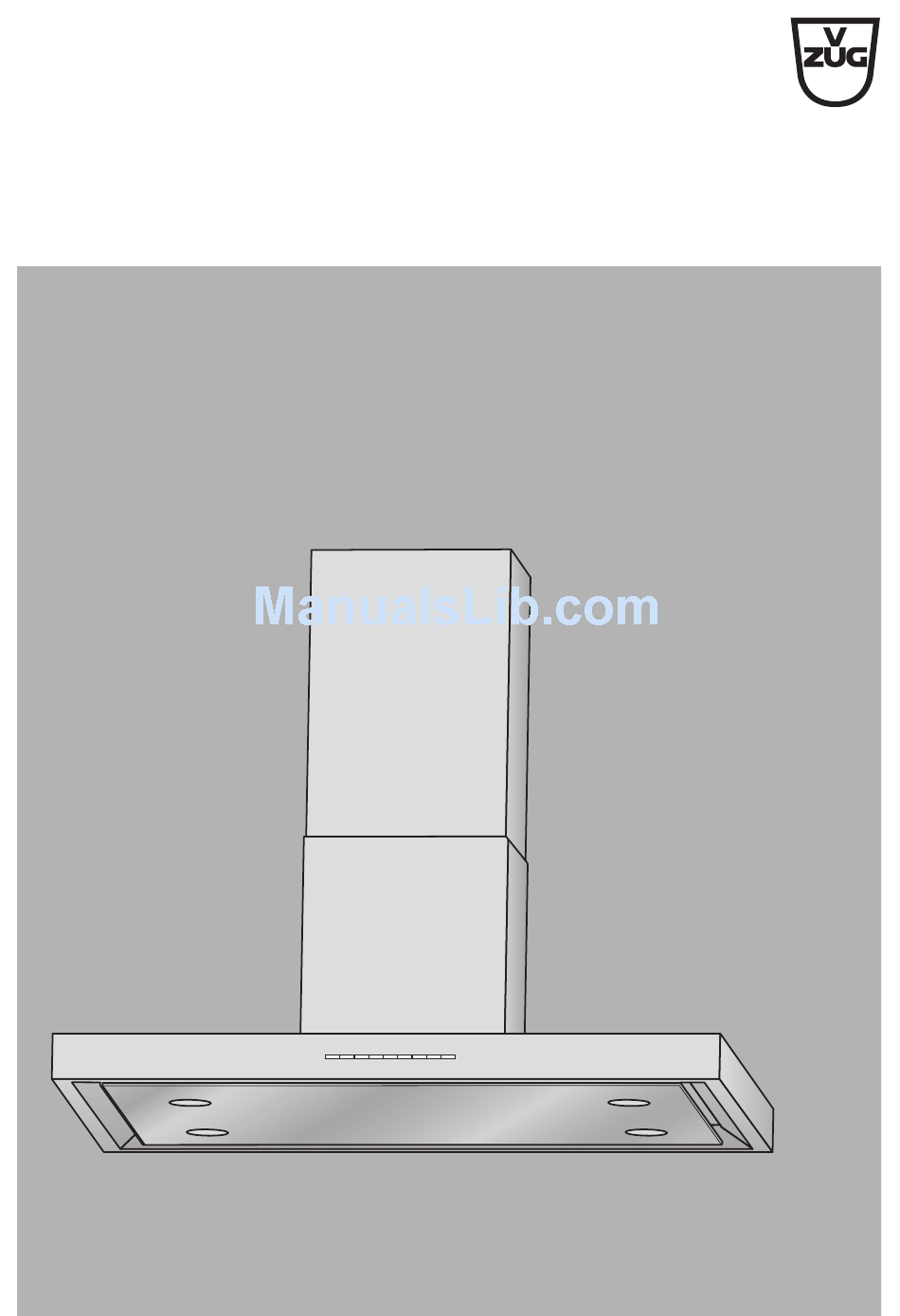

  • Page 1 V-ZUG Ltd Range hood Mistral/Bora Operating instructions...
  • Page 2 The model number corresponds to the first 3 digits on the identification plate. These operating instructions apply to the models: Type Model no. Type Model no. DW-M9 DI-M10 DW-M12 DI-M12 DW-B9 DI-B10 DW-B14 DI-B14 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6301 Zug, 2011...

  • Page 3: Table Of Contents

    Contents 1 Safety precautions 1.1 Before using for the first time ........4 1.2 Correct use .

  • Page 4: Safety Precautions

    Safety precautions The appliance corresponds to recognised technology standards and the relevant safety regulations. Proper use of the appliance is however essential to avoid damage and accidents. Please therefore follow the precautions given in these operating instructions. In accordance with the requirements of IEC 60335-1: •...

  • Page 5: Correct Use

    1 Safety precautions Correct use • The appliance is designed for use in the home for extracting cooking fumes and smells from above the cooking surface. • Any repairs, modifications or manipulations to the appliance, especially any electrically live parts, should only be carried out by the manufacturer, its Customer Services or similarly qualified persons.

  • Page 6: Note On Use

    1 Safety precautions Note on use • If the appliance is visibly damaged, do not use it. Contact our Customer Services. • If the appliance is not operating properly, disconnect it from the electricity supply immediately. • If the mains cable of the appliance is damaged, it must be replaced by Customer Services in order to avoid hazard.
  • Page 7 1 Safety precautions • If other appliances – fuelled by gas or other fuels – are being used at the same time, ensure that there is a sufficient supply of fresh air. This does not apply to air recirculation appliances. •...

  • Page 8: Appliance Description

    Appliance description The appliance is designed to extract cooking fumes and smells from the cooking area. This particular model can be used to extract or recirculate air. Extraction model A fan extracts cooking fumes and smells from above the cooking surface. The metal grease filter cleans the extracted air, which is passed through a connecting pipe fitted with an integrated non-return valve and through the air duct to the outside.

  • Page 9: Fitted With

    2 Appliance description Fitted with • 1 extraction fan • Illumination • 1 metal grease filter • 1 long-life activated charcoal filter The extraction fan has 4 power levels. • = Low, = Medium, = High and = Intensive level. •...

  • Page 10: Construction

    2 Appliance description Construction Operating and display elements Long-life activated charcoal filter (for recirculating air only) Halogen light Metal grease filter Glass panel, fold-away (only Mistral) Air recirculation (for recirculating air only)

  • Page 11: Operating And Display Elements

    2 Appliance description Operating and display elements Power level 1 on/off Power level 2 on/off Power level 3 on/off Intensive level on/off After-running time/Clean-Air function Illumination on/off/dimmed Grease filter saturation indicator Depending on the model and design, the specification of the appliance may differ from the standard specification described herein.

  • Page 12: Use

    Switching on Press the button to switch the appliance ➤ Select a different power level by pressing the corresponding button. ➤ – The indicator light shows which power level is currently being used We recommend switching the appliance on several minutes before cooking and allowing it to run for at least another 5 minutes after you have finished cooking.

  • Page 13: Clean-Air Function

    3 Use Clean-Air function Activating the Clean-Air function Hold the button depressed for 5 seconds. ➤ – The display flashes. – The clean air function remains activated until it is manually deactivated. Power level runs for 15 minutes every hour. When in use, ensure there is a sufficient supply of fresh air to replace the air that is being extracted.

  • Page 14: Illumination

    3 Use Illumination Press the button to switch the illumination on or off. ➤ Hold the button depressed to dim the light. ➤ The illumination can be used on its own. Saturation indicator for the grease filter display illuminates after 15 operating hours or at the latest 14 days after first being put into operation.

  • Page 15: Care And Maintenance

    Care and maintenance Cleaning the housing Take care that no water gets into the housing! If water gets into the housing, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool etc. to clean the appliance as they can damage the surface. Remove screw fuse for appliance or switch off circuit breaker.

  • Page 16: Cleaning The Grease Filter

    If properly cared for, a grease filter should provide unlimited years of service. Mistral Carefully fold down the glass panel. ➤ Mistral and Bora Pull down and remove the grease filter 1. ➤ For washing in a dishwasher, select an «intensive» or «heavy» wash –...

  • Page 17: Cleaning And Replacing The Long-Life Activated Charcoal Filter

    4 Care and maintenance Cleaning and replacing the long-life activated charcoal filter Long-life activated charcoal filters are only used in the recirculation model. The long-life activated charcoal filter can be cleaned and reactivated. The long-life activated charcoal filter should be changed ever month with normal use or whenever the indicator illuminates.

  • Page 18: Replacing The Halogen Light

    Remove screw fuse for appliance or switch off circuit breaker. Halogen lights get hot during operation! Allow to cool down first. Mistral Carefully fold down the glass panel. ➤ Mistral and Bora Using a small screw driver, carefully remove ➤ the ring. Replace the defective halogen light with a ➤...

  • Page 19: Trouble-Shooting

    Trouble-shooting What to do if … … the illumination is not working Possible cause Solution • Fuse or circuit breaker for Replace the fuse. ➤ electrical installations in Reset the circuit breaker. ➤ the home is faulty. • Interruption in the power Check the power supply.
  • Page 20 5 Trouble-shooting … The display illuminates Possible cause Solution • Grease filter is dirty. Clean grease filter. ➤ After cleaning, hold the button ➤ depressed for at least 5 seconds. – The display goes out. … The display flashes Possible cause Solution •...

  • Page 21: Accessories And Spare Parts

    Accessories and spare parts Please give model number and exact description when ordering parts. Halogen light Metal grease filter Long-life activated charcoal filter The halogen light is also available from specialist retailers.

  • Page 22: Technical Data

    Technical data Electrical connection See identification plate. ➤ Remove the grease filter. ➤ – The identification plate is located on the inside of the appliance.

  • Page 23: Disposal

    Disposal Packaging • All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way. Disconnection • Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out by a qualified electrician! Safety •...

  • Page 24: Notes

    Notes...

  • Page 25: Index

    Index Accessories ....21 Light, dimming....14 Ordering ....27 Long-life activated charcoal filter .
  • Page 26 10 Index Technical data....22 Use ......12 Trouble-shooting .

  • Page 27: Repair Service

    ➤ – The identification plate is located on the inside of the appliance. If the appliance is not working properly, contact your nearest V-ZUG Ltd Service Centre using freephone 0800 850 850 and stand in close proximity to the appliance.

  • Page 28: Quick Instructions

    Power level 3 on/off Intensive level on/off After-running time/Clean-Air function Illumination on/off/dimmed Grease filter saturation indicator V-ZUG Ltd Industriestrasse 66, 6301 Zug Tel. +41 (0)41 767 67 67, Fax +41 (0)41 767 61 61 vzug@vzug.ch, www.vzug.ch Service Centre: Tel. 0800 850 850...
