Summary of Contents for V-ZUG AiroClearCabinet V200

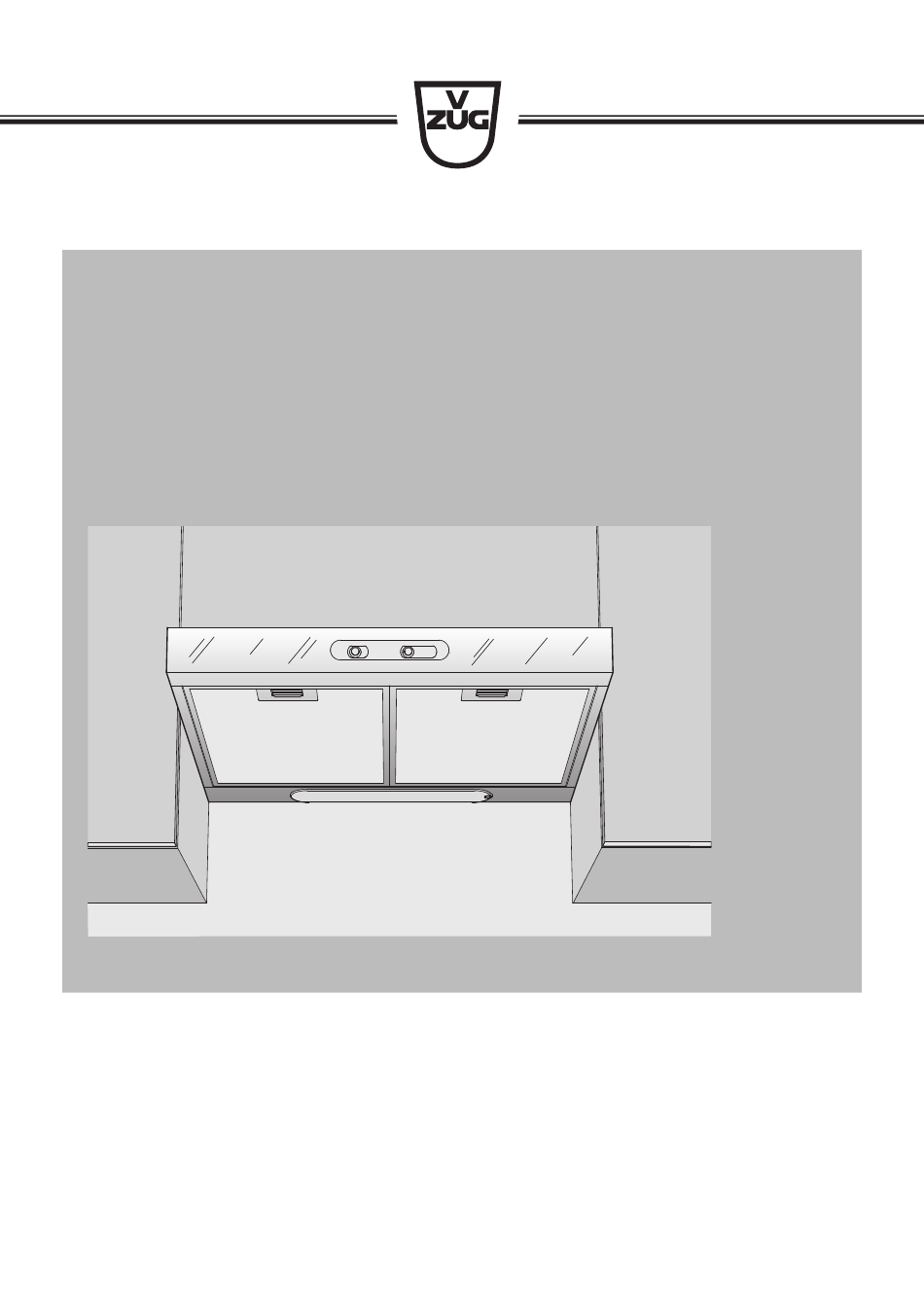

- Page 1 Operating instructions AiroClearCabinet V200 Range hood...
- Page 2 Model number Type Norm for built-in ap- pliances AiroClearCabinet 61048 AE2H5US SMS 55 V200 AiroClearCabinet 61051 AE2H6US EURO 60 V200 AiroClearCabinet 61054 AE2H9US V200 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2019...
-
Page 3: Table Of Contents
Contents 2 Safety precautions 4 Symbols used............ 4 General safety precautions........ 4 Appliance-specific safety precautions .... 4 Instructions for use.......... 5 Appliance description 7 Appliance description ........... 7 Extraction model ............ 7 Recirculation model .......... 7 Equipment ............... 7 Construction ............ 8 Operating and display elements...... -
Page 4: Safety Precautions
Safety precautions Symbols used Cleaning and user mainten- ance shall not be undertaken Denotes important safety precau- tions. by children without supervi- Failure to observe said precautions sion. can result in injury or in damage to ▪ If an appliance is not the appliance or fittings! equipped with a mains cable Information and precautions that... -
Page 5: Instructions For Use
1 Safety precautions ▪ The extracted air must not be motels and other accommod- fed into a chimney which is ation establishments; in bed used for exhausting fumes and breakfast establishments. from appliances burning gas ▪ Do not operate the appliance or other fuels. - Page 6 1 Safety precautions ▪ Use original spare parts only. Caution: Burns hazard! ▪ Retain these operating instructions for ▪ Do not leave the appliance unattended future reference. when deep-frying on the cooking sur- Note on use face. The cooking oil in the deep-frying ▪...
-
Page 7: Appliance Description
Appliance description Appliance description The appliance is designed for use in the home for extracting cooking fumes and smells from above the cooking surface. The model can be used to extract or recirculate air. It can be used as a wall hood or a built-in range hood in a wall unit. Extraction model A fan draws cooking fumes and smells from above the cooking area. -
Page 8: Construction
2 Appliance description Construction Operating elements Grip Metal grease filter Illumination cover LED illumination Operating and display elements Illumination Extractor fan Level 1 Level 2 Level 3 Depending on the model and features, the specification of the appliance may differ from the standard specification described herein. -
Page 9: Operating The Appliance
3 Operating the appliance Operating the appliance Operation Switch extractor fan on/off ▸ Slide the switch 6 to power level or . Run only briefly (a few minutes) at power level , then switch to a lower power level. ▸ To switch off, set the switch to We recommend switching the appliance on at level some 5 minutes before start- ing to cook. -
Page 10: Cleaning The Illumination Cover
4 Care and maintenance Cleaning the illumination cover The illumination cover 4 can be removed for cleaning as required. ▸ Release the fixing pin 8 with a screw- driver. ▸ Slide the illumination cover 4 slightly to the right in the fitting. ▸... -
Page 11: Replacing The Activated Charcoal Filter
4 Care and maintenance Cleaning ▸ Clean the metal grease filters in the dishwasher. ▸ Select an «intensive» or «heavy» wash programme with a warm prewash. Cleaning may cause the metal grease filters to become discoloured. However, this will not affect the functioning of the filters in any way. If no dishwasher is available: ▸... -
Page 12: Replacing The Led Light Bulb
5 Trouble-shooting Replacing the LED light bulb Remove the screw fuse for the appliance or switch off the circuit breaker. LED light bulbs get warm during operation! Allow them to cool down first. ▸ Remove the grease filter. ▸ Unscrew the LED light bulb from its fixture and replace it with a new LED bulb of the same type (see the designation on the light bulb housing or on the identification plate for this). -
Page 13: Accessories And Spare Parts
6 Accessories and spare parts Accessories and spare parts Please give model number of the appliance and exact designation of the accessory or spare part when ordering parts. LED light bulb (max. 3W-E14) Metal grease filter Activated charcoal filter The LED light bulb is also available from specialist retailers. Technical data Electrical connection ▸... -
Page 14: Product Fiche
7 Technical data Product fiche In accordance with EU Regulation No. 65/2014 and No. 66/2014. Description Abbreviations Unit Value Brand V-ZUG LTD Model identifier 61048+61051 / 61054 Annual Energy Consumption kWh/a 103.3 / 103.3 hood Energy Efficiency Index 97.2 / 97.2... -
Page 15: Disposal
8 Disposal Measured value of the electric power 159.5 / 159.5 input at the best efficiency point Nominal power of the lighting system 6.0 / 6.0 Average illumination of the lighting 78 / 97 middle system on the cooking surface Sound power level 73.0 / 73.0 Disposal... -
Page 16: Index
Index Accessories ............13 Recirculation mode ..........7 Appliance description ........7 Recirculation model..........7 Appliance disposal .......... 15 Replacing the activated charcoal filter ..............11 Replacing the LED light bulb......12 Care and maintenance ........9 Cleaning Grease filter .......... 10 Safety precautions Housing ............ 9 Appliance-specific .......... 4... -
Page 17: Notes
Notes... -
Page 19: Service & Support
Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our pro- gressive service agreements. - Page 20 Please first read the safety precautions in the operating instructions! Illumination Extractor fan Level 1 Level 2 Level 3 1071772-R01 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
